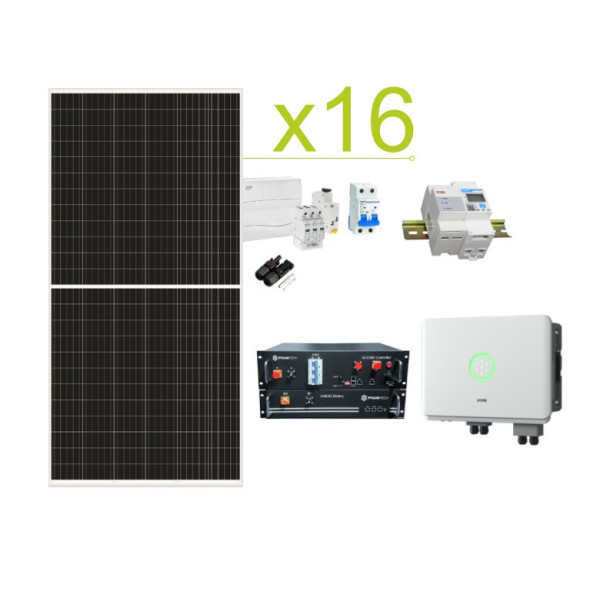

On Off SAJ 41.280Whdía Solar kit with Pylontech HV lithium battery 7.2-16.8kWh

Solar kit for self-consumption and homes from the electricity grid with lithium batteries, capable of producing up to 41.280 hours per day. It is applied on residential homes, country houses, both for regular use and for weekends.

The solar kit consists of 1x SAJ H2 Series 6000W Three-Phase Inverter, 16x 470W 144-cell solar panels, 1x Pylontech H48050 Lithium Battery from 7.2kWh to 16.8kWh

Includes monitoring system Monitoring Kit ESolar SEC Three-Phase.

x 16


€3,425.76



  1. This product is not available for order.



  1. This product is not available at this time.
Pylontech Powercube X1


€197.84

x 4


€35.82

x 4


€24.20

x 2

€84.70

€12.10

€31.46

x 35


€37.69

x 35


€37.69

x 4

€16.94

Pack description

On Off SAJ 41.280Whdía Solar kit with Pylontech HV lithium battery 7.2-16.8kWh

Self-consuming and isolated solar kit with lithium battery designed to produce up to 41.280Whday. This kit has been designed taking into account an estimate of peak sun hours. It has been taken as minimum in winter 3 hours and for summer a minimum of 7 hours of sunshine.

This solar kit makes it possible to remain connected to the electricity grid and to disconnect in the future. It has one of the highest quality and most functional inverters on the market. It works connected to the network, in off-grid houses, it efficiently charges batteries and offers support during power supply interruptions.

To know if this kit is suitable for your needs, you must know which will be the consumption of the installation. In order to estimate the total daily consumption, you must make a list with the appliances you are going to connect, the power (W) of each of them and the expected operating time in hours per day. If you have any doubt, contact our team!

Dimension Solar Kit with Batteries

For example, if you have 4 points of light of 9W during 5 hours a day and a medium size class A+ refrigerator with freezer, your daily consumption in lighting is 4x9x5 =180 Wh/day. A refrigerator consumes between 600Wh/day and 800Wh/day. The sum of all these daily consumptions will be the total, that is, between 780Wh/day and 980Wh/day you need the kit to generate you.

Components Kit for self-consumption or off-grid installations with SAJ Inverter

16x Solar Panel 470w 144 cell

With fully automatic lines, Hestia manufactures various types of high quality solar panels, this is the Hestia 470W HTS-144M6H470 solar panel.

Size: 2094 x 1038 x 35 mm

Weight: 23.5 kg

Batería Pylontech Powecube x1

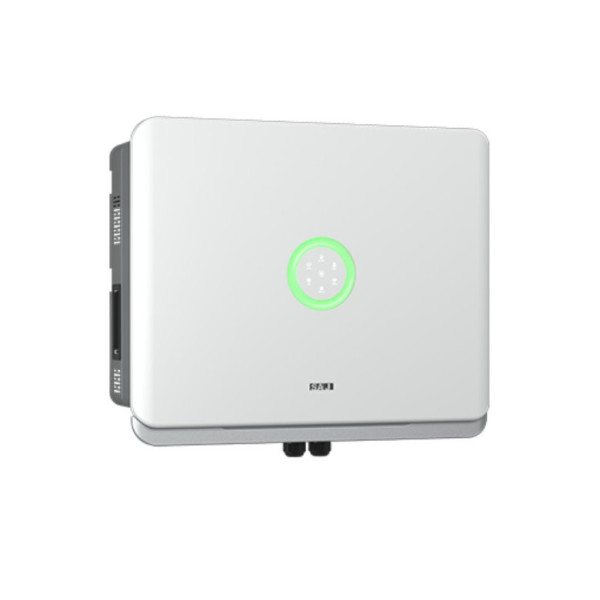

SAJ H2 Series 6000W Three-Phase

New H2 series of the SAJ brand of three-phase inverters, improving quality, reliability and efficiency. This three-phase series offers inverters with power from 5kW to 10kW. The team efficiently manages the energy produced to get the most out of the solar installation.

Dimensions (mm) 433 x 549 x 207

Weight (kg) 25

Pylontech HV H48050 - High Voltage From 7,2 To 16,8kWh - PowerCube X1

The new Pylontech PowerCube X1 HV battery forms a high voltage storage system based on lithium phosphate and iron battery modules. This battery is ideal for photovoltaic installations as it offers high power despite its compact size. PowerCube has a modular format so we can expand the capacity of our installation from 7.2kWh to 16.8kWh.

This battery is formed by modules of Pylontech H48050 and an intelligent system BMS that manages the cycles of load and discharge increasing the useful life.

Batería Pylontech Powecube x1

ESolar SEC Three-Phase Monitoring Kit

ESolar SEC Three-phase monitoring kit, consisting of a Chint Three-phase DTSU666 wattmeter designed for power monitoring and energy measurement in power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly to be used in real-time measurements and visualization of electrical parameters such as voltage, current, active power, reactive power, frequency, power factor, and a SEC device for data collection.

DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.

Basic electrical components

140m single-pore wire

4 fuse + 4 fusetubes

2 Surge protector 600V

Electric panel box 12

4m multo-wired cable 3x6mm

Automatic 40A

Differential 40A

4 Connector MC4

Red Wattmeter Cable 10m

Pack content

With fully automatic lines, Hestia manufactures various types of high quality solar panels, this is the Hestia 470W HTS-144M6H470 solar panel.

Size: 2094 x 1038 x 35 mm

Weight: 23.5 kg

12 years product warranty and 30 years linear production warranty over 80%.


Hestia 470W HTS-144M6H470 solar panel

Datasheet Solar panel 470W Hestia

Half-cut Technology

Half-cut cell technology is to cut the cell into two seperate parts by mature infrared laser, hence halve the working current. The thermal loss on the ribbon will be remarkably reduced and the module’s power increases by 2%. The reliability of module is also enhanced.

MBB and PERC cell

MBB and PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.

Data sheet

Tipo de Módulo
Monocristalino
Potencia del panel
410W-490W

New H2 series of the SAJ brand of three-phase inverters, improving quality, reliability and efficiency. This three-phase series offers inverters with power from 5kW to 10kW. The team efficiently manages the energy produced to get the most out of the solar installation.

Dimensions (mm) 433 x 549 x 207

Weight (kg) 25


SAJ H2 Series 6000W Three-Phase

New H2 series of the SAJ brand of three-phase inverters, improving quality, reliability and efficiency. This single-phase series offers inverters with power from 5kW to 10kW. The team efficiently manages the energy produced to get the most out of the solar installation.

 Datasheet SAJ Serie H2 Three-phase

General Features SAJ Serie H2 Single-Phase

  • Easy setting of smart working modes
  • AFCI (optional)
  • DC 16A/ string matched with ultra high PV modules
  • Battery supported fast charging/ discharging
  • 150% DC oversizing
  • With UPS function switch time <10ms

The new Pylontech PowerCube X1 HV battery forms a high voltage storage system based on lithium phosphate and iron battery modules. This battery is ideal for photovoltaic installations as it offers high power despite its compact size. PowerCube has a modular format so we can expand the capacity of our installation from 7.2kWh to 16.8kWh.

This battery is formed by modules of Pylontech H48050 and an intelligent system BMS that manages the cycles of load and discharge increasing the useful life.

*Includes battery-inverter connection cables kit and communications cable.


Features of Pylontech PowerCube X1 Series HV Battery

- The pylonteche modules included are fully responsible for the environment.

- LiFePO4 technology offers performance, safety and long battery life.

- The battery management system (BMS) offers protection functions, including over-discharge,

overload, overcurrent and high/low temperature.

- The system can automatically manage the charge and discharge status and balance the current and voltage in each cell.

- Flexible configuration to expand capacity and voltage.

- The auto-cooling mode adopted minimizes total system noise.

- The working temperature range is 0°C to 50°C, with excellent discharge performance and service life.

- Small size and light weight of each module allows for quick configuration and mounting.

 Datasheet Pylontech HV H48050

This battery is formed by:

- Pylontech Battery Management System (BMS)

- Pyontech H48050 HV Battery Modules

conexión pylontech bms y módulos pylontech h48050

Pylontech PowerCube X1 Data Sheet

Installation Manual Pylontech PowerCube X1: BMS + Módulos H48050

ficha técnica batería pylontech powercube x1 serie

Inverters compatible with Pylontech PowerCube X1 Battery Series

The Pylontech PowerCube battery is compatible with the Ingeteam Ingecon Sun Storage 6Tl inverter, Solax Power X1/X3-Hybrid inverters, Goodwe Et series inverters and Growatt SPH 10.000TL3 inverters.

Consult in the following PDF the list of inverters compatible with Powercube X1 pylontech batteries.

Compatible inverters list for Pylontech battery

ESolar SEC Three-phase monitoring kit, consisting of a Chint Three-phase DTSU666 wattmeter designed for power monitoring and energy measurement in power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly to be used in real-time measurements and visualization of electrical parameters such as voltage, current, active power, reactive power, frequency, power factor, and a SEC device for data collection.

DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.


ESolar SEC Three-Phase Monitoring Kit

ESolar SEC Three-phase monitoring kit, consisting of a Chint Three-phase DTSU666 wattmeter designed for power monitoring and energy measurement in power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly to be used in real-time measurements and visualization of electrical parameters such as voltage, current, active power, reactive power, frequency, power factor, and a SEC device for data collection.

 Datasheet eSolar SEC KIT

 User Manual eSolar SEC KIT

 Load Monitoring SEC Kit 24H

Main functions and characteristics DTSU666-H

  • DIN35mm standard for rail mounting.
  • Segment LCD display.
  • Measurement parameters: voltage, current, active and reactive power, frequency, power factor...
  • RS485 communication. DL/T645-2007 protocol is supported, customizable for MODBUS-RTU protocol.
  • Top, peak, flat and valley rates are supported.
  • Suggested installation along with SAJ inverters.

Main parameters DTSU666-H

Technical parameters

Index









Input signal





Voltage

Wiring mode

Single phase

Voltage specification

AC 220V

Specified working voltage range

0.9Un~1.1Un; the extensional work    voltage range: 0.8Un~1.2Un

Consumption of the voltage circuit

≤5VA/1W

Resistance

>500kΩ





Current

Rated value

Input via CT/PT: AC1.5(6)A
     Direct input: AC5(60)A/AC 5(80)A

Overload Current

Input via CT/PT: instant:201max, time of application is 0.5s
     Direct input: instant:301max, time of    application: half cycle of the rated frequency

Consumption of the current circuit

≤2VA

Resistance

<20mΩ

Frequency

Input range

(50/60±5%)Hz

Clock

Clock battery capacity

≥1200mAh

Clock accuracy class(daily error)

<0.5s/d(23℃)









Output

Display

Segment LCD

Measurement parameters and grade

Voltage   Class 0.5; Current   Class 0.5;  Power factor Class 1;
     Frequency  Class 0.5; Active power  Class 1;  Reactive power Class 1;
     Active energy Class 1;





Energy

Multi-rate energy

Support multi-rate measurement of passive, negative total active power

Max. demand record

Support Max. demand record of passive,    negative total active power, demand interval and slip time can be set

Pulse constant

AC200V

AC1.5(6)A

6400imp/kWh

AC220V

AC5(60)A/AC5(80)A

800imp/kWh



Pulse signal output

Provide 1 set(active energy) optical signal and optocoupler isolated open collector electrical signal pulse output, pulse length:80ms±16ms



Communication

RS485 communication

Support or DL/T645-2007 communication    protocol, customizable MODBUS-RTU communication protocol, the communication baud rate 1200bps, 2400bps,4800bps,9600bps can be set, assumed to be 2400bps



IR communication

Support DL/T645-2007 communication protocol,

customizable for MODBUS-RTU communication

protocol,

Infrared wave length:900nm~1000nm

Communication baud rate: 1200bp

Communication angle: ≥±15°

Communication distance: ≥4m

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.


Kayal Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Kayal fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.


The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.


Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.


Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).
