The Kit Sec-C T80 of SAJ it allows the monitoring and parallelization of SAJ Three-phase R5 and R6, up to 10 units with the same meter Chint.

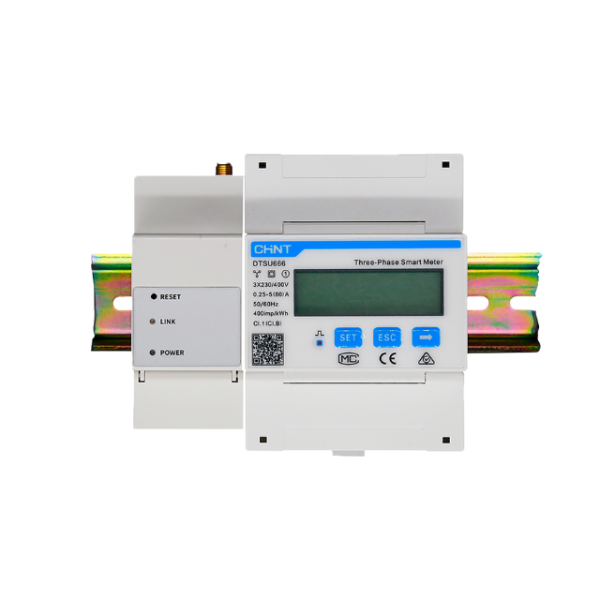

Monitoring kit eSolar SEC Triphasic, consisting of a wattmeter Chint Triphasic DTSU666 designed for: power monitoring and energy measurement in power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly for use in real-time measurements and display of electrical parameters such as voltage, current, active power, reactive power, frequency, power factor, and an SEC device for data collection.

DUE TO STOCK LIMITATIONS , THIS EQUIPMENT IS ONLY SOLD IN CONJUNCTION WITH ITS COMPATIBLE INVESTORS

KIT ESOLAR SEC TRIFA
€183.00
Tax included
In stock



Secure payment



Shipping policy



Return policy

3 phase monitoring kit SAJ SEC KIT C T80

Monitoring kiteSolar SEC Triphasic, composed of a wattmeter Chint Triphasic DTSU666 designed for:power monitoring and energy measurementIn power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly to be used inreal-time measurements and display of electrical parametersSuch as voltage, current, active power, reactive power, frequency, power factor, and an SEC device for data collection.

 Download eSolar SEC KIT technical sheet

 In the case of the eSolar SEC KIT

 SEC Kit 24H Monitoring

Main functions and characteristics of DTSU666-H

  • It follows the DIN standard for rail mounting: DIN35mm.
  • It has an LCD screen.
  • Measurement parameters: voltage, current, frequency, active power, reactive power, power factor, etc.
  • Communication by RS485. It supports DL/T645-2007 protocol, which is customizable for MODBUS-RTU protocol.
  • It supports four scales: upper, peak, plain and valley.
  • Recommended installation next to trademark investorsSAJ

In the case of vehicles of categories M1 and N2

Technical parameters

Other









Input signals





Voltage

Wiring mode

Single phase

Voltage specifications

AC 220V

Specified working voltage range

The extensional work voltage range: 0.8Un~1.2Un

Consumption of the voltage circuit

≤ 5VA/1W

Resistance

> 500 kΩ





Current

Rated value

Input through CT/PT: AC1.5 ((6) A
In the case of vehicles of categories M1 and N2 with a maximum mass exceeding 2000 kg:

Overload current

Input via CT/PT: instant:201max, time of application is 0.5s
Direct input: instant:301max, time of application: half cycle of the rated frequency

Consumption of the current circuit

≤ 2 YEARS

Resistance

For the purposes of this Regulation

Frequency

Input range

(50/60±5%)Hz

Clock

Clock battery capacity

≥ 1200 mAh

Clock accuracy class ((daily error))

The temperature range shall be as follows:









Output

Display

LCD segment

Measurement parameters and grade

Voltage class 0.5; current class 0.5; power factor class 1;
Frequency Class 0.5; Active power Class 1; Reactive power Class 1;
Active energy class 1;





Energy

Multi-rate energy

Support multi-rate measurement of passive, negative total active power

Max, please. demand record

Support Max. demand record of passive, negative total active power, demand interval and slip time can be set

Constant pulse

AC200V

OTHER, NOT FURTHER WORKED THAN HOT-ROLLED

If the following conditions are met:

OTHER VEHICLES

FOR THE PURPOSES OF THIS REGULATION, THE FOLLOWING DEFINITIONS SHALL APPLY:

The following conditions shall be met:



Pulse signal output

Provide 1 set ((active energy) optical signal and optocoupler isolated open collector electrical signal pulse output, pulse length:80ms±16ms



Communication

RS485 communication

Support or DL/T645-2007 communication protocol, customizable MODBUS-RTU communication protocol, the communication baud rate 1200bps, 2400bps,4800bps,9600bps can be set, assumed to be 2400bps



IR communication

Supporting DL/T645-2007 communication protocol,

is customizable for MODBUS-RTU communication

protocol,

Infrared wavelength: 900 nm to 1000 nm

Communication baud rate: 1200bp

Communication angle: at least ± 15°

Communication distance: ≥ 4m
