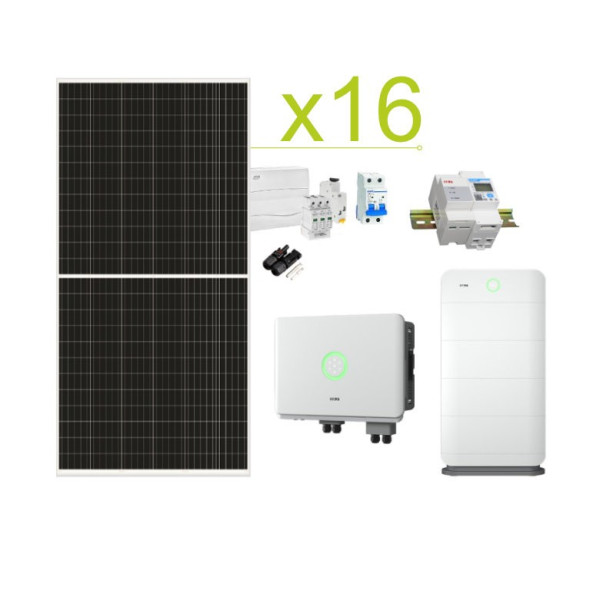

Autoconsumption Solar Kit SAJ 46,080Wh/day and lithium battery SAJ 4.8-24kWh
Solar kit for self-consumption and isolated homes of the electric grid with lithium batteries, capable of producing up to 46,080Wh/day. It applies to residential homes, country houses, both for regular and weekend use.
The solar kit consists of 1x Investor SAJ H2 6000W Triphasic Series, 16x solar panels 480W 120 cells, 1x Litio Battery SAJ B2 From 4.8kWh to 24kWh
Includes monitoring system Kit SEC Triphasic ESolar Monitoring.
Leapton solar 480W LP182-18-M-60-NH N Type TOPCon - 25 years warranty
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
- This product is not available for order.
SAJ H2 Series 6000W Three-Phase
New H2 series of the SAJ brand of three-phase inverters, improving quality, reliability and efficiency. This three-phase series offers inverters with power from 5kW to 10kW. The team efficiently manages the energy produced to get the most out of the solar installation.
Dimensions (mm) 433 x 549 x 207
Weight (kg) 25
* Technical support not included. Eligible separately here.
Lithium battery SAJ B2 HV1 - Modules + BMS + Base
New high voltage lithium battery SAJ B2. What. Expandable modular battery with easy installation with a compact and modern design. This series of batteries can store from 5.12 kWh to 25.6 kWh and is compatible with the inverter series SAJ H2.
This battery consists of 1-5 battery modules SAJ B2 HV1, BMS + Cable Kit SAJ B2 HV1 + battery base SAJ B2 HV1.
Dimensions THE FOLLOWING PARAGRAPH IS ADDED: (mm): 261x626x365
Weight THE FOLLOWING PARAGRAPH IS ADDED: in kilograms 50,5
Capacity (kWh): 5.12
Warranty (years): 10
* Technical support not included. Eligible separately right here.
3 phase monitoring kit SAJ SEC KIT C T80
The Kit Sec-C T80 of SAJ it allows the monitoring and parallelization of SAJ Three-phase R5 and R6, up to 10 units with the same meter Chint.
Monitoring kit eSolar SEC Triphasic, consisting of a wattmeter Chint Triphasic DTSU666 designed for: power monitoring and energy measurement in power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly for use in real-time measurements and display of electrical parameters such as voltage, current, active power, reactive power, frequency, power factor, and an SEC device for data collection.
DUE TO STOCK LIMITATIONS , THIS EQUIPMENT IS ONLY SOLD IN CONJUNCTION WITH ITS COMPATIBLE INVESTORS
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
40A Differential Kayal
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Pack content
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
Leapton solar panel 480W LP182-18-M-60-NH N Type topon
480W monocrystalline Leapton solar module with N-Type TOPCon technology that ensures maximum efficiency even in low light conditions.
The 480W Leapton solar panel has a 25-year warranty and is within the Tier1 list of best-selling brands.
See also Leapton solar 480W LP182-18-M-60-NH
This Regulation shall be binding in its entirety and directly applicable in all Member States
The Commission therefore concludes that the contested scheme is compatible with the internal market
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
The number of cells shall be reported
It incorporates the latest technology in photovoltaic cell development with the N-Type TOPCon that increases output per cell from 10 to 20W.
It shall be capable of operating at a power output not exceeding 30 W
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
New H2 series of the SAJ brand of three-phase inverters, improving quality, reliability and efficiency. This three-phase series offers inverters with power from 5kW to 10kW. The team efficiently manages the energy produced to get the most out of the solar installation.
Dimensions (mm) 433 x 549 x 207
Weight (kg) 25
* Technical support not included. Eligible separately here.
SAJ H2 Series 6000W Three-Phase
New H2 series of the SAJ brand of three-phase inverters, improving quality, reliability and efficiency. This single-phase series offers inverters with power from 5kW to 10kW. The team efficiently manages the energy produced to get the most out of the solar installation.
Datasheet SAJ Serie H2 Three-phase
General Features SAJ Serie H2 Single-Phase
- Easy setting of smart working modes
- AFCI (optional)
- DC 16A/ string matched with ultra high PV modules
- Battery supported fast charging/ discharging
- 150% DC oversizing
- With UPS function switch time <10ms
New high voltage lithium battery SAJ B2. What. Expandable modular battery with easy installation with a compact and modern design. This series of batteries can store from 5.12 kWh to 25.6 kWh and is compatible with the inverter series SAJ H2.
This battery consists of 1-5 battery modules SAJ B2 HV1, BMS + Cable Kit SAJ B2 HV1 + battery base SAJ B2 HV1.
Dimensions THE FOLLOWING PARAGRAPH IS ADDED: (mm): 261x626x365
Weight THE FOLLOWING PARAGRAPH IS ADDED: in kilograms 50,5
Capacity (kWh): 5.12
Warranty (years): 10
* Technical support not included. Eligible separately right here.
Lithium battery SAJ B2 HV1 - Modules + BMS + Base
The battery SAJ B2 is a high-voltage LiFePO4 battery without cobalt. With a sheet metal housing, it adapts a structure compatible with wall mounting and stacking installation methods. The battery pack SAJ B2 contains battery modules and a BMS+base controller. The number of battery modules can be flexibly adjusted according to the user's power demand, and up to 5 modules (25,0 kWh) can be connected.
Battery installation manual SAJ B2-HV1
Battery certificate SAJ B2-HV1
Battery characteristics SAJ B2 HV1
- Flexible capacity options from 5,12 kWh to 25,6 kWh
- Excellent safety of the LiFePO4 battery
- Remote firmware update
- Easy installation with modular and stacked design
Battery models SAJ B2 HV1
- THE FOLLOWING PARAGRAPH IS ADDED:: 5.12 kWh
- IN THE CASE OF VEHICLES OF CATEGORIES M1 AND N2: 10.24 kWh
- THE FOLLOWING PARAGRAPH IS ADDED:: 15.36 kWh
- B2-20.4-HV1: 20.48 kWh
- B2-25.6-HV1: 25.6 kWh
For more information on investors SAJ contact us.
The Kit Sec-C T80 of SAJ it allows the monitoring and parallelization of SAJ Three-phase R5 and R6, up to 10 units with the same meter Chint.
Monitoring kit eSolar SEC Triphasic, consisting of a wattmeter Chint Triphasic DTSU666 designed for: power monitoring and energy measurement in power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly for use in real-time measurements and display of electrical parameters such as voltage, current, active power, reactive power, frequency, power factor, and an SEC device for data collection.
DUE TO STOCK LIMITATIONS , THIS EQUIPMENT IS ONLY SOLD IN CONJUNCTION WITH ITS COMPATIBLE INVESTORS
3 phase monitoring kit SAJ SEC KIT C T80
Monitoring kiteSolar SEC Triphasic, composed of a wattmeter Chint Triphasic DTSU666 designed for:power monitoring and energy measurementIn power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly to be used inreal-time measurements and display of electrical parametersSuch as voltage, current, active power, reactive power, frequency, power factor, and an SEC device for data collection.
Download eSolar SEC KIT technical sheet
In the case of the eSolar SEC KIT
SEC Kit 24H Monitoring
Main functions and characteristics of DTSU666-H
- It follows the DIN standard for rail mounting: DIN35mm.
- It has an LCD screen.
- Measurement parameters: voltage, current, frequency, active power, reactive power, power factor, etc.
- Communication by RS485. It supports DL/T645-2007 protocol, which is customizable for MODBUS-RTU protocol.
- It supports four scales: upper, peak, plain and valley.
- Recommended installation next to trademark investorsSAJ
In the case of vehicles of categories M1 and N2
| Technical parameters |
Other |
||||
|
Input signals |
Voltage |
Wiring mode |
Single phase |
||
|
Voltage specifications |
AC 220V |
||||
|
Specified working voltage range |
The extensional work voltage range: 0.8Un~1.2Un |
||||
|
Consumption of the voltage circuit |
≤ 5VA/1W |
||||
|
Resistance |
> 500 kΩ |
||||
|
Current |
Rated value |
Input through CT/PT: AC1.5 ((6) A |
|||
|
Overload current |
Input via CT/PT: instant:201max, time of application is 0.5s |
||||
|
Consumption of the current circuit |
≤ 2 YEARS |
||||
|
Resistance |
For the purposes of this Regulation |
||||
|
Frequency |
Input range |
(50/60±5%)Hz |
|||
|
Clock |
Clock battery capacity |
≥ 1200 mAh |
|||
|
Clock accuracy class ((daily error)) |
The temperature range shall be as follows: |
||||
|
Output |
Display |
LCD segment |
|||
|
Measurement parameters and grade |
Voltage class 0.5; current class 0.5; power factor class 1; |
||||
|
Energy |
Multi-rate energy |
Support multi-rate measurement of passive, negative total active power |
|||
|
Max, please. demand record |
Support Max. demand record of passive, negative total active power, demand interval and slip time can be set |
||||
|
Constant pulse |
AC200V |
OTHER, NOT FURTHER WORKED THAN HOT-ROLLED |
If the following conditions are met: |
||
|
OTHER VEHICLES |
FOR THE PURPOSES OF THIS REGULATION, THE FOLLOWING DEFINITIONS SHALL APPLY: |
The following conditions shall be met: |
|||
|
Pulse signal output |
Provide 1 set ((active energy) optical signal and optocoupler isolated open collector electrical signal pulse output, pulse length:80ms±16ms |
||||
|
Communication |
RS485 communication |
Support or DL/T645-2007 communication protocol, customizable MODBUS-RTU communication protocol, the communication baud rate 1200bps, 2400bps,4800bps,9600bps can be set, assumed to be 2400bps |
|||
|
IR communication |
Supporting DL/T645-2007 communication protocol, is customizable for MODBUS-RTU communication protocol, Infrared wavelength: 900 nm to 1000 nm Communication baud rate: 1200bp Communication angle: at least ± 15° Communication distance: ≥ 4m |
||||
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
Interior surface panel 12 Legrand elements
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Solar kit for self-consumption and isolated homes of the electric grid with lithium batteries, capable of producing up to 46,080Wh/day. It applies to residential homes, country houses, both for regular and weekend use.
The solar kit consists of 1x Investor SAJ H2 6000W Triphasic Series, 16x solar panels 480W 120 cells, 1x Litio Battery SAJ B2 From 4.8kWh to 24kWh
Includes monitoring system Kit SEC Triphasic ESolar Monitoring.
