The high voltage battery LG RESU FLEX consists of two components that allow storage capacity to be flexibly scaled (BMA+BPU).

Available in three different sizes; two to four battery modules with a usable storage capacity of 8,6kWh, 12,9kWh y 17,2 kWh.

The battery is modularly expandable and suitable for both wall and floor installation.

Size: 665,2x665,2x148,4 mm

weight of the Battery module (BMA): other

Weight of the Battery control unit (BPU): 16,5 kg

* Technical support not included. Eligible separately right here.

LG RESU FLEX 8.6kWh to 17.9kWh

The high voltage battery LG RES FLEX consists of two components allowing for flexible scaling of storage capacity (BMA battery module + BPU battery protection unit).

Available in three different sizes; two to four battery modules with a usable storage capacity of 8,6kWh, 12,9kWh y 17,2 kWh.

The battery is modularly expandable and suitable for both wall and floor installation. For installation on the ground, the battery modules are connected in series to the control unit. On the other hand, in the case of wall installation, the individual units can be installed horizontally side by side on the wall.

  Technical Datasheet Lithium Batteries LG RESU FLEX 8.6kWh-17.9kWh

The Kostal PIKO MP Plus 3.0 inverter is a solar inverter from the new KOSTAL PIKO MP PLUS series. Single-phase, pure sine wave inverter that can operate on batteries and allows connection to the grid with zero injection. The Kostal MP Plus inverter efficiently manages the operation of the installation. Includes monitoring of the photovoltaic installation through the KOSTAL Solar Portal, KOSTAL Solar App and the internal Webserver.

The new 3.0kW KOSTAL MP PLUS solar inverter has 2 MPPT tracker that can be used for photovoltaic generator input or for battery connection through AC coupling, ideal for repowering.

* Technical support not included. Eligible separately here.

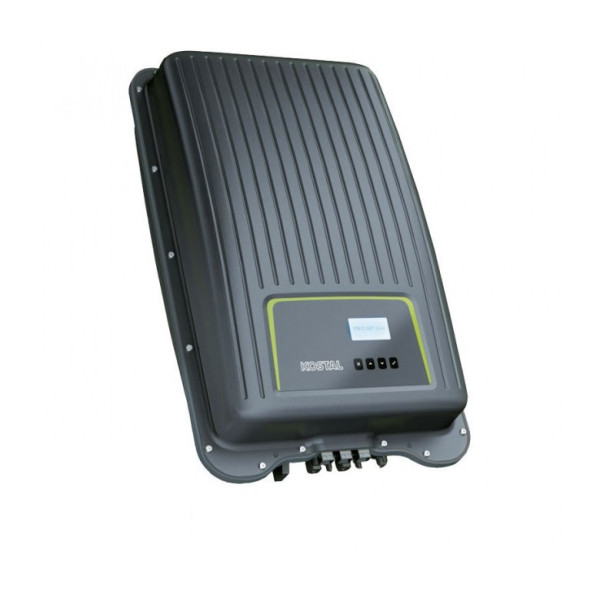

Kostal PIKO MP PLUS 3.0 - 2MPPT Mono-Phase Inverter

The Kostal PIKO MP Plus 3.0 inverter is a solar inverter from the new KOSTAL PIKO MP PLUS series. Single-phase, pure sine wave inverter that can operate on batteries and allows connection to the grid with zero injection. The Kostal MP Plus inverter efficiently manages the operation of the installation. Includes monitoring of the photovoltaic installation through the KOSTAL Solar Portal, KOSTAL Solar App and the internal Webserver.

The new 3.0kW KOSTAL MP PLUS solar inverter has 2 MPPT tracker that can be used for photovoltaic generator input or for battery connection through AC coupling, ideal for repowering.

Download datasheet Kostal Piko MP Mono-phase Inverter

Download operation user Kostal Piko MP Mono-phase Inverter

Connection BYD BATTERY BOX Batteries with Kostal Piko MP plus inverters

Flexible Use - Kostal PIKO MP Plus 3.0 single-phase inverter

One or two PMP trackers

Possibility of using 1 PMP tracker as bi-directional input respectively, optionally for photovoltaic generator or high voltage battery

Possibility of battery option with the KOSTAL Smart Energy Meter

Battery functionality for devices with a PMP tracker with AC coupled battery connection, also ideal for repowering

Battery functionality for equipment with two PMP trackers for DC coupled battery connection, ideal for new installations

Extended PMP range - perfect for "repowering"

Smart Connected - Kostal PIKO MP Plus 3.0 single-phase inverter

Display, data logging, facility monitoring, network interfaces and regulation integrated as standard

Free monitoring of the photovoltaic installation through the KOSTAL Solar Portal, the KOSTAL Solar App and the internal Webserver

Smart Performance - Kostal PIKO MP Plus 3.0 single-phase inverter

Possibility of integration of energy meters

High efficiency

Efficient DC coupling of high voltage batteries

Dynamic active power control and 24-hour measurement

Integrated shadow management - individually tailored to the installation site

Zero injection possibility

Easy Installation - Kostal PIKO MP Plus 3.0 single-phase inverter

Single phase injection

Convenient connection without opening the device

Integrated DC disconnect device

Simple menu-guided operation and installation

Optimal protection against dust and water for outdoor use (protection class IP65)

Kostal PIKO MP plus Inverter Installation

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.

Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

Interior surface panel 12 Legrand elements

Energy meter SDM 230 Modbus for Kostal Piko MP inverter

Zero injection counter valid for Kostal PIKO MP inverters (1.5,2.0,2,5,3,0,3,6,4,2), Modbus RTU communication, allows zero injection and the reading is displayed on the Kostal monitoring portal. Data collection in real time and historical data. Compatible with single-phase inverters with Modbus RTU communication.

DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.

* Technical support not included. Eligible separately here.

About the SDM 230 ModBus Energy meter

The SDM 230 is used to record the self-consumption of the home or the power that is injected into the network, and represent the corresponding values in the solar portal. Valid for Kostal Piko MP inverter.

In this case, the sensor can, in combination with the inverter, dynamically regulate self-consumption and optimally distribute the energy generated.

Download Data Sheet SDM230 ModBus

Characteristics of the SDM-230 Modbus Counter

• Monophase
• RS 485 ModBus RTU
• Up to 100AMP direct
• Montage DIN 35 mm
• Accuracy higher than Class1 / B
• Bidirectional Measure

The equipment should only be used in photovoltaic installations connected to the network within the expected power range. The equipment is not suitable for portable use.

For more information about the SDM 230 ModBus anti-pour clamp contacted us, we will help you without obligation.

Incorrect use can cause damage to equipment or other objects. The current sensor must be used exclusively for its intended use.

Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA

Model: EPR2C040030
