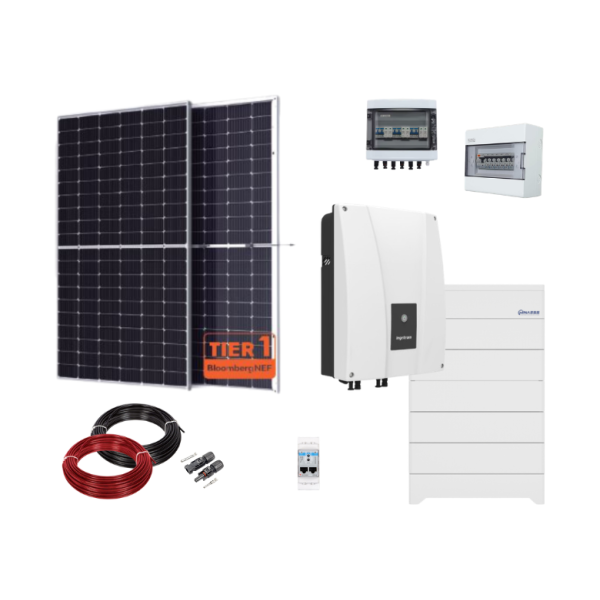

Ingeteam 47,000Wh/day on-off-grid solar kit and Powerstack 10-40kWh HV lithium battery.

Ingeteam's new single-phase battery inverter, without transformer, with double MPPT system and with integrated EMS

The 6,000W INGECON SUN STORAGE 1PLAY 6TL M inverter, designed for single-phase installations, makes it possible to combine photovoltaic solar energy and energy storage without the need for an additional solar inverter. This hybrid inverter from Ingeteam is one of the most versatile on the market. It works in both isolated and grid-connected installations, making it ideal for those users who are looking for a solution that will allow them to disconnect from the grid in the future.

Dimensions: 360x470x180mm Weight: 26kg.

Ingeteam Ingecon Sun Storage 1Play 6TL M hybrid inverter

The 6,000W INGECON SUN STORAGE 1PLAY 6TL M battery inverter has a double MPPT that allows maximum power to be obtained from the solar panels installed even on roofs with different shades or orientations.

The new Ingeteam series has integrated EMS, which provides new functionalities, such as the possibility of monitoring at all times through the PC or smartphone by means of the INGECON SUN Monitor APP, available for Android or Iphone. Back-Up function for self-consumption installations.

Quick and easy start-up. 5-year warranty, which can be extended.

Download inverter technical sheet Ingecon Sun Storage 1Play 6TL M

Learn more about the INGECON SUN STORAGE 1PLAY TL M battery inverter:

Security

- AC Surge System

- System against insulation faults

- Short circuit and overload protections

- Anti-islanding system with automatic shutdown

Services

- Double MPPT

- RS-485 Communication

- WiFi and Ethernet communication

- CAN Bus 2.0 communication for BMS

- 2 configurable digital inputs

- 2 configurable potential outputs

- Precharging system in battery input

- Neutral earthing relay for critical loads in TT installations

- Easy to install and configure through INGECON SUN monitor.

- Can only run on solar field power without the need for a battery.

- Indoor or outdoor installation IP65

- Back-up function for self-consumption facilities

New Hybrid Inverter INGECON SUN STORAGE 1PLAY 6TL M: Isolated or grid-connected installations

• CONNECTED TO THE NETWORK. Auto Power Mode: This connection mode is optimized to minimize power consumption. When the production of solar energy from the panels is greater than the consumption of the house, we store the excess in the battery. If we prefer, we can choose to inject to the network to take advantage of the compensation of surpluses. Ingeteam's new inverter has buck-up functionality in the event of power cuts, feeding critical loads either from the battery or from the photovoltaic field. Installation and configuration of a self-consumption system with Ingecon Sun Storage 1Play.
•


• CONNECTED TO THE NETWORK. UPS Mode: This mode of operation has been designed for systems where network outages are frequent and long. The inverter will always keep the batteries charged. When the power grid goes down, the inverter generates an AC grid and battery power is used for critical loads. The response time of the system, makes grid failures negligible. Installation and configuration of a system with Ingecon Sun Storage 1Play for installations with frequent grid failures.


• OFF GRID MODE: The new Ingecon Sun Storage 1Play TL M hybrid inverter generates an isolated AC grid and manages the network efficiently, providing a balance between the photovoltaic generation of the solar panels, the consumption of the house and the energy storage system. It has a relay for the grounding of the neutral of the loads to create an isolated TT network. It allows the connection of an emergency generator system. Installation and configuration of an isolated system with Ingecon Sun Storage 1Play.

Technical specifications of the Ingeteam INGECON SUN STORAGE 1PLAY 6TL M inverter

Learn more about Ingecon Sun Storage 1Play TL M

The new Ingecon Sun Storage 1Play TL M inverter is compatible with LG Chem RESU low voltage batteries and the new generation of BYD LVS batteries or the Pylontech high voltage battery. Please contact our team if you need to know the compatibility of other batteries or components.

To monitor the installation with the new Ingecon Sun Storage 1Play inverters from a Smartphone or tablet, the iOS and Android INGECON SUN Monitor App is available:

• Complete information in real time.
• Historical data.
• Maximum savings.

For more information about the Ingeteam inverters as well as other components of the brand, please contact us.

Download manual for installation and use of systems with  INGECON SUN STORAGE 1PLAY TL M

Download technical guide for installations with INGECON SUN STORAGE 1PLAY TL M

HinaESS PowerStack high-voltage battery, scalable from 10 to 40kWh (2~8 modules in series per stack, up to 20 in parallel). LFP technology for maximum safety and durability (6000 cycles, 10-year warranty). Wide voltage range (61.6V-80.3V), recommended charge/discharge current of 36A (0.5C per module), and IP65 protection. Compatible with multiple inverters, ensuring a flexible and reliable energy future.

Technology: LFP

Warranty: 10 years, 6,000 cycles

Nominal Capacity per Stack: 10kWh/15kWh/20kWh/25kWh/30kWh/35kWh/40kWh

Weight (depending on capacity): 110Kg/155Kg/200Kg/245Kg/290Kg/335Kg/380Kg

Dimensions (depending on capacity): 736*382*577mm / ... (see technical data sheet for details)

HinaESS PowerStack - 10-40kWh High Voltage Lithium Battery

The PowerStack high-voltage battery from HinaESS redefines residential and industrial energy storage, offering an efficient, safe, and affordable solution. Based on robust and safe Lithium Iron Phosphate (LFP) cell technology, the PowerStack ensures a long service life with over 6,000 charge cycles and a 10-year warranty, providing you with peace of mind and a solid return on investment.

Its modular and scalable design allows for flexible configurations from 10kWh to 40kWh per stack, with the possibility of connecting up to 20 stacks in parallel. This makes it the ideal choice to adapt to the current and future energy needs of any photovoltaic installation, from homes to small and medium-sized enterprises.

The PowerStack integrates an advanced Battery Management System (BMS) that monitors and optimizes the performance of each module (nominal module voltage: 70.4V, nominal capacity: 72Ah, nominal energy: 5.069kWh). The advanced BMS not only maximizes battery life but also offers comprehensive protection, including IP65 protection against dust and water, and a wide operating voltage range (61.6V - 80.3V).

Compatibility is key, and the HinaESS PowerStack battery has been designed to integrate seamlessly with a wide range of leading solar inverters on the market. Its advanced communication protocol ensures efficient energy management between the battery and the inverter. (Do not hesitate to consult us about the specific compatibility with your inverter!).

For optimal performance, a charge/discharge current of 36A (0.5C per module) is recommended, with a maximum continuous capacity of 50.4A (0.7C per module) and a maximum continuous power of 3.548kW per module. The system allows up to 8 modules in series per cluster and up to 20 clusters in parallel without the need for additional units.

The PowerStack also stands out for its flexible remote maintenance and an original backup system to prevent failures, ensuring continuous operation and minimizing interruptions.

Additional Technical Specifications:

• Scalable Connection: 2~8 modules in series per stack, up to 20 stacks in parallel.
• Nominal Battery Module Voltage: 70.4V
• Nominal Battery Module Capacity: 72Ah
• Nominal Battery Module Energy: 5.069kWh
• Protection: IP65
• Battery Module Voltage Range: 61.6V - 80.3V
• Charging/Discharging Temperature: 0°C ~ +55°C / -20°C ~ +55°C
• Recommend Storage Temperature: -10°C ~ +35°C (Max range: -30°C ~ +55°C)
• Recommend Storage Humidity: 10% RH - 90% RH
• Certification: CE UN38.3 IEC62619
• Remote Maintenance: Flexible remote upgrade, original firmware backup to prevent upgrade failure.

Technical data sheet HinaESS PowerStack battery

2M communication cable for connecting Ingeteam inverters with lithium batteries.

Please consult with us if you have any compatibility questions regarding your equipment with this cable. Not sold separately.

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The energy meters ET112 (for single phase of maximum 100 A) and ET340 (for three phase of maximum 65 A) are normally used in an energy storage system.

Meter to dynamically control the power required by our installation and avoid spillage into the network. It communicates with the ColorControl and you will be able to observe us in the Victron VRM portal as well as in the mobile app our instantaneous energy requirements and with consumption graphs throughout the 24 hours of the day so that we will have all the information at our disposal possible relative to our energy consumption.

DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.

Single-phase ET112 Victron Energy Wattmeter

The Carlo Gavazzi ET112 wattmeter is an effective energy meter that performs accurate measurement and monitoring according to the IEC 62053-21 standard. It has a modern and compact design that allows its installation to be quick and easy. It offers an easy and configurable reading, which is also reachable by remote communication. It has an RS485 port to communicate with a compatible inverter and thus adjust its power delivery according to the wattmeter reading on the demand of the installation.

Wattmeter specs

• Single-phase energy analyzer.
• Accuracy +-0.5% RDG.
• Backlit LCD display with integrated touch keypad.
• kWh and kVArh energy measurement with the possibility of adding two tariffs.
• System variables: kW, kVAr, V, A, PF, Hz...
• Self power supply.
• 2-DIN module dimension.
• IP51 protection degree.
• RS485 Modbus port.

Pre-assembled DC protection panel designed to ensure maximum safety in photovoltaic installations. Assembled in a surface-mounted, watertight enclosure, they house surge protectors and fuse holders with 20A fuses per pole. These pre-assembled panels are ready to use, simplifying photovoltaic installations and resulting in considerable time savings.

Type: DC Protection Panel, 2 string, 600V DC

Includes:

• 1 Surface-mounted, watertight enclosure
• 2 600V surge protector
• 4 fuse holders + 2 x 20A fuses

Pre-assembled DC Protection Panel 2 String 600V

The DC protection panel is an essential component in any solar installation. Its main function is to act as a shield between the generating array—the solar panels—and the inverter. By directly receiving the DC wiring that carries energy on lines up to 600V (for single-phase configurations), this panel protects the main equipment from transient voltage spikes, lightning strikes, and overcurrents, preventing costly breakdowns and ensuring compliance with safety regulations.

The main advantage of choosing a pre-assembled and pre-wired panel is the direct time and cost savings during construction.

Receiving a plug-and-play unit eliminates the complexity of individually assembling fuse holders, 20A fuses, and surge protectors on-site. This drastically reduces the margin of error in internal wiring, ensures that all components meet watertightness and fireproofing standards in their surface-mount enclosure, and speeds up commissioning for both professional installers and private projects.

The AC protection panel connects the solar inverter to the home's electrical grid, protecting the installation against overvoltages, short circuits, and ground faults. Purchasing it pre-assembled and pre-wired ensures regulatory compliance, prevents wiring errors, and minimizes on-site installation time: simply mount it to the wall, connect the lines, and start up with complete safety.

Type: Single-phase 40A AC protection panel suitable for photovoltaic installations with or without grid connection.

Includes:

• 1 Inner waterproof surface box
• 2 automatic magneto-thermal switches 2P 40A
• 1 differential switch 2p 40A 300mA
• 1 x 63A three-position manual transfer switch

Pre-assembled 40A single-phase AC panel with on/off-grid backup

The AC protection panel is the component responsible for protecting the electrical line that connects the solar inverter to the main electrical panel of the house and the electrical grid. Its function is to safeguard the inverter and the installation against overvoltages (transient and permanent), short circuits, and ground faults, guaranteeing a safe disconnection in case of any anomaly.

Purchasing it pre-assembled and pre-wired guarantees a quick, clean, and 100% safe installation. By receiving the surface-mounted, weatherproof panel fully assembled and factory-tested, you drastically reduce labor time during installation, avoid wiring errors between circuit breakers and residual current devices (RCDs), and ensure strict compliance with current electrical regulations.
