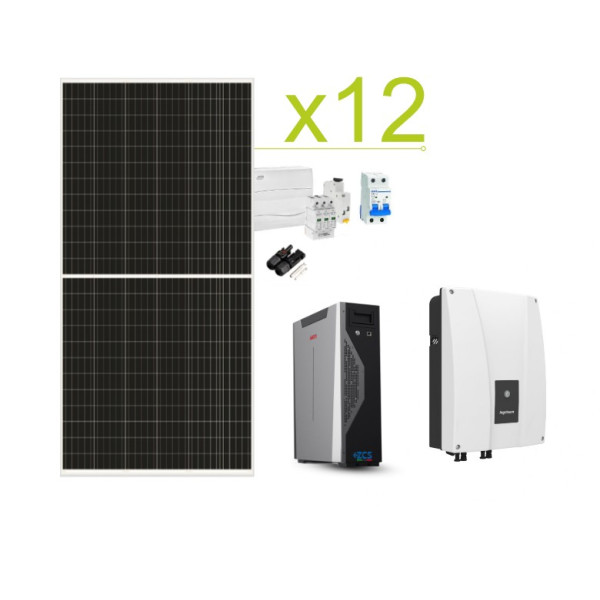

Off-grid Solar Kit Ingeteam 34,560Wh/day and WeCo 5.3kWh Lithium Battery

The new 5.3kWh, 48V WeCo XP lithium battery with modular system is one of the most versatile storage systems for application in isolated or self-consuming photovoltaic installations.

The WeCo XP WiFi battery is compatible with the most commonly used inverter brands; Goodwe, The Voltronic Axpert, You know, Studer, Sma, Blue...

Capacity of the module: 5.3 kWh

Size: 460x520x155weight: 53 kg

Modular system Max. 15 units in parallel and 105 units with the WeCo Expansion Hub.

Low voltage / high voltage applications

Guarantee: 10 years

The new WeCo XP is fully compatible with the WeCo Dual model for expansions.

IMPORTANT -- ACCESSORIES -- READ THE DESCRIPTION

Characteristics of the new lithium battery WeCo 5K3 XP WiFi 5,3kWh 48V

The new WeCo XP lithium battery is one of the most advanced on the market for storage in photovoltaic solar energy systems. The new WeCo XP battery is expandable and compatible with the previous model. It allows you to connect from 1 module of 5.3kWh up to 15 modules in parallel and expand up to 105 modules working at 48V. At high voltage, thanks to the WeCo HUB, we can go up to 768kWh.

Battery data sheet Weco 5K3 XP

Manual battery Weco 5K3 XP

THIS IS IMPORTANT -- ACCESSORIES

-If it is the first WeCo battery you connect you will need for proper operation the power cable kit the WeCo brand and the communication cable in addition to support in case of need.

-In case you already own a WeCo battery and want to expand to continue to 48V, you will need parallel terminals and bracket (optional).

-In case you already own a WeCo battery and want to expand to work at high voltage, you will need the new BMS and the stand (optional).

FITTINGS

WeCo power cable kit

WeCo communications cable

WeCo parallel connectors

Ingeteam's new single-phase battery inverter, without transformer, with double MPPT system and with integrated EMS

The 6,000W INGECON SUN STORAGE 1PLAY 6TL M inverter, designed for single-phase installations, makes it possible to combine photovoltaic solar energy and energy storage without the need for an additional solar inverter. This hybrid inverter from Ingeteam is one of the most versatile on the market. It works in both isolated and grid-connected installations, making it ideal for those users who are looking for a solution that will allow them to disconnect from the grid in the future.

Dimensions: 360x470x180mm Weight: 26kg.

Ingeteam Ingecon Sun Storage 1Play 6TL M hybrid inverter

The 6,000W INGECON SUN STORAGE 1PLAY 6TL M battery inverter has a double MPPT that allows maximum power to be obtained from the solar panels installed even on roofs with different shades or orientations.

The new Ingeteam series has integrated EMS, which provides new functionalities, such as the possibility of monitoring at all times through the PC or smartphone by means of the INGECON SUN Monitor APP, available for Android or Iphone. Back-Up function for self-consumption installations.

Quick and easy start-up. 5-year warranty, which can be extended.

Download inverter technical sheet Ingecon Sun Storage 1Play 6TL M

Learn more about the INGECON SUN STORAGE 1PLAY TL M battery inverter:

Security

- AC Surge System

- System against insulation faults

- Short circuit and overload protections

- Anti-islanding system with automatic shutdown

Services

- Double MPPT

- RS-485 Communication

- WiFi and Ethernet communication

- CAN Bus 2.0 communication for BMS

- 2 configurable digital inputs

- 2 configurable potential outputs

- Precharging system in battery input

- Neutral earthing relay for critical loads in TT installations

- Easy to install and configure through INGECON SUN monitor.

- Can only run on solar field power without the need for a battery.

- Indoor or outdoor installation IP65

- Back-up function for self-consumption facilities

New Hybrid Inverter INGECON SUN STORAGE 1PLAY 6TL M: Isolated or grid-connected installations

• CONNECTED TO THE NETWORK. Auto Power Mode: This connection mode is optimized to minimize power consumption. When the production of solar energy from the panels is greater than the consumption of the house, we store the excess in the battery. If we prefer, we can choose to inject to the network to take advantage of the compensation of surpluses. Ingeteam's new inverter has buck-up functionality in the event of power cuts, feeding critical loads either from the battery or from the photovoltaic field. Installation and configuration of a self-consumption system with Ingecon Sun Storage 1Play.
•


• CONNECTED TO THE NETWORK. UPS Mode: This mode of operation has been designed for systems where network outages are frequent and long. The inverter will always keep the batteries charged. When the power grid goes down, the inverter generates an AC grid and battery power is used for critical loads. The response time of the system, makes grid failures negligible. Installation and configuration of a system with Ingecon Sun Storage 1Play for installations with frequent grid failures.


• OFF GRID MODE: The new Ingecon Sun Storage 1Play TL M hybrid inverter generates an isolated AC grid and manages the network efficiently, providing a balance between the photovoltaic generation of the solar panels, the consumption of the house and the energy storage system. It has a relay for the grounding of the neutral of the loads to create an isolated TT network. It allows the connection of an emergency generator system. Installation and configuration of an isolated system with Ingecon Sun Storage 1Play.

Technical specifications of the Ingeteam INGECON SUN STORAGE 1PLAY 6TL M inverter

Learn more about Ingecon Sun Storage 1Play TL M

The new Ingecon Sun Storage 1Play TL M inverter is compatible with LG Chem RESU low voltage batteries and the new generation of BYD LVS batteries or the Pylontech high voltage battery. Please contact our team if you need to know the compatibility of other batteries or components.

To monitor the installation with the new Ingecon Sun Storage 1Play inverters from a Smartphone or tablet, the iOS and Android INGECON SUN Monitor App is available:

• Complete information in real time.
• Historical data.
• Maximum savings.

For more information about the Ingeteam inverters as well as other components of the brand, please contact us.

Download manual for installation and use of systems with  INGECON SUN STORAGE 1PLAY TL M

Download technical guide for installations with INGECON SUN STORAGE 1PLAY TL M

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.

Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA

Model: EPR2C040030

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

8 elements of Legrand

2M communication cable for connecting inverters with WeCo brand lithium batteries.

Please consult with us if you have any questions about the compatibility of your equipment with this cable. Not sold separately.

The WeCo current cable kit is necessary for the connection of the battery to our PV inverter. This cable kit is compatible with WeCo battery models.

Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting to the inverter.

2 x 2m long power cables (positive and negative)

Important: The communication cable between battery and inverter is purchased separately. You can purchase it here for the Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7,200-48, Voltronic Axpert VM IV 3,600-24, Voltronic Axpert VM IV 5,600-48, Voltronic Axpert MAX II 8,200-48 as well as for the Ingecon SUN Storage 6 TL M inverters from Ingeteam.
