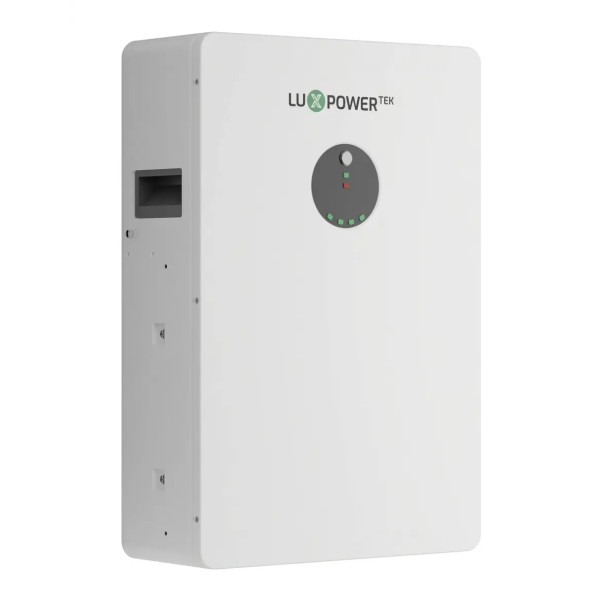

PGEM LuxPower Lithium Battery 5.12kWh - 51.2V
PGEM Lithium (LFP) battery from manufacturer LuxPower with a capacity of 5.12kWh (100Ah at 51.2V) and 6000 life cycles, ideal for solar energy applications, both for self-consumption with storage and for off-grid solar installations.
Dimensions: 640 mm x 428 mm x 166 mm
Weight: 58 kg
Secure payment
Shipping policy
Return policy
PGEM LuxPower Lithium Battery 5.12kWh - 51.2V
The PGEM LuxPower 5.12 kWh Lithium Iron Phosphate (LiFePO4 or LFP) battery is ideal for solar energy applications, both for self-consumption with storage and for off-grid solar installations.
Compatible with Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Solark, SRNE, Must inverters... parallel connection capability of up to 32 units without the need for additional equipment. Easy to install thanks to quick connections that reduce installation time.
Advantages of LFP Technology
It features a long and extended lifespan of about 6,000 cycles and a warranty of approximately 10 years, with the manufacturer guaranteeing at least 70% of usable capacity from the start. Easy to expand for large storage systems; increased depth of discharge (90% DOD); compact and modular design for easy installation/upgrade; operates in various temperature conditions (from -20°C to +55°C); Smart BMS management for longer life and real-time alarm reporting. Protection against overcharge, over-discharge, overcurrent, overvoltage and overheating, short circuit and reverse connection, and active load balancing.
PGEM LuxPower Capacity
Each of these modules has an energy capacity of 5.12 kWh. Thanks to its format, up to 32 units can be connected in parallel, allowing flexible system scalability without affecting performance if a battery is disconnected or reconnected.
PGEM LuxPower 51.2V 5.12kWh Battery Technical Specifications
| MODEL | PGEM |
| Cell | LFP |
| Nominal Power | 5.12 kWh |
| Nominal Capacity | 100 Ah |
|
Nominal Voltage |
51.2 V |
| Maximum Continuous Charge/Discharge | 100A |
| Peak Discharge Current | 105A/15s, 150A/0.5s |
| Maximum Parallel Units | 32 |
| Communication | CAN/RS485 |
| Certifications | CE UN38.3 IEC62619 |
| Protection |
Protection against overcharge, over-discharge, overcurrent, overvoltage, and overheating. Protection against short circuit, reverse connection, active load balancing, low SOC protection |
| Dimensions (W*D*H) | 640*428*166 mm |
| Net Weight | 58 kg |
| Lifespan (Cycles) | 6000 cycles |
| Warranty | 10 years |
| Protection Rating | IP20 |
| Humidity | 5%-85% RH (Non-condensing) |
| Operating Temperature | -20°C to +55°C |
| DOD (Depth of Discharge) | 90% |
| Remote Maintenance | Flexible remote updates, remote monitoring, original firmware backup to prevent update failures. |
Manufacturer's Warranty
For LuxPower batteries, the manufacturer guarantees that at least 70% of the original usable capacity will be retained after 10 years of use or 6,000 cycles, whichever comes first.
Downloads
Datasheet PGEM Lithium Battery 5.12kWh - 51.2V
BAT-HNE-PG-5,12
PGEM Lithium (LFP) battery from manufacturer LuxPower with a capacity of 5.12kWh (100Ah at 51.2V) and 6000 life cycles, ideal for solar energy applications, both for self-consumption with storage and for off-grid solar installations.
Dimensions: 640 mm x 428 mm x 166 mm
Weight: 58 kg
