PGEM LuxPower 5.12kWh Lithium Battery - 51.2V
Batería de Litio PGEM LuxPower 5,12kWh - 51,2V
Batería de Litio (LFP) PGEM del fabricante LuxPower de 5,12kWh de capacidad (100Ah a 51,2V) y de 6000 ciclos de vida útil, ideal para aplicaciones de energía solar, tanto para autoconsumo fotovoltaico con almacenamiento, como para instalaciones solares aisladas de la red eléctrica.
Dimensiones: 640 mm x 428 mm x 166 mm
Peso: 58 kg
Pagamento seguro
Política de envio
Política de devolução

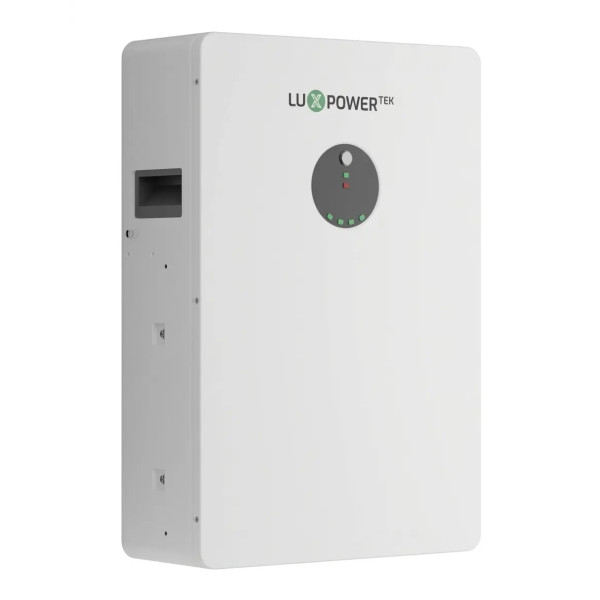

PGEM LuxPower 5.12kWh Lithium Battery - 51.2V
The PGEM LuxPower Lithium Iron Phosphate (LiFePO4 or LFP) battery with 5.12 kWh from LuxPower is ideal for solar energy applications, both for photovoltaic self-consumption with storage and for off-grid solar installations.
Compatible with inverters from Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Solark, SRNE, Must... supports parallel connection of up to 32 units without the need for any additional equipment. Easy installation thanks to quick connections that reduce installation time.
Advantages of LFP Technology
It features a long lifespan of around 6,000 cycles and approximately 10 years warranty, with the manufacturer guaranteeing at least 70% of the usable capacity at the beginning. They are easy to expand to achieve large-scale storage; increased depth of discharge (90% DOD); compact and modular design for easy installation/upgrade; can operate in a wide range of temperatures (-20°C to +55°C); Smart BMS management for longer life and real-time alarm reporting. Protection against overcharge, deep discharge, overcurrent, overvoltage and overheating, short-circuit and reverse polarity protection, and charge balancing.
PGEM LuxPower Capacity
Each module has an energy capacity of 5.12 kWh. Thanks to its format, up to 32 units can be connected in parallel, allowing for flexible system scalability without affecting operation if a battery is disconnected or comes back online.
PGEM LuxPower 51.2V 5.12kWh Battery Specifications
| MODEL | PGEM |
| Cell | LFP |
| Rated Energy | 5.12 kWh |
| Rated Capacity | 100 Ah |
|
Rated Voltage |
51.2 V |
| Max Continuous Charge/Discharge | 100A |
| Peak Discharge Current | 105A/15s, 150A/0.5s |
| Max Parallel Units | 32 |
| Communication | CAN/RS485 |
| Certifications | CE UN38.3 IEC62619 |
| Protection |
Protection against overcharge, deep discharge, overcurrent, overvoltage, and overheating. Short-circuit protection, reverse polarity protection, active load balancing, low state of charge (SOC) protection. |
| Dimensions (W*D*H) | 640*428*166 mm |
| Net Weight | 58 kg |
| Lifespan (Cycles) | 6000 cycles |
| Warranty | 10 years |
| Protection Rating | IP20 |
| Humidity | 5%-85% RH (Non-condensing) |
| Operating Temperature | -20°C to +55°C |
| DOD (Depth of Discharge) | 90% |
| Remote Maintenance | Flexible remote updates, remote monitoring, original firmware backup to prevent update failures. |
Manufacturer Warranty
For LuxPower batteries, the manufacturer guarantees at least 70% of the initial usable capacity after 10 years of use or 6,000 cycles, whichever comes first.
Downloads
PGEM 5.12kWh - 51.2V Lithium Battery Datasheet
