Single-phase energy analyzer EM112DIN Carlo Gavazzi

Single-phase energy analyzer EM112DIN Carlo Gavazzi

Single-phase energy analyzer with backlit LCD. Carlo Gavazzi EM112DIN is particularly indicated for active energy metering and for cost allocation in applications up to 100A (direct connection), with dual tariff management availability. Thanks to its communication with the inverter it allows controlling grid injection.

Recommended installation with single-phase inverters:  Ingeteam y Huawei Sun 2000L.

DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.

EM112DIN
€132.00
Tax included



Secure payment



Shipping policy



Return policy

Carlo Gavazzi EM112DIN

Single-phase Carlo Gavazzi EM112DIN energy analyzer is an effective device to measure energy that performs an accurate monitoring under IEC 62053-21 standard. It has a modern and compact design that allows a quick and easy installation. It offers an easy and customizable reading that is also attainable via remote communication. It has a RS485 port to communicate with a compatible inverter and adjusting so the power delivery of itself according to the reading of the wattmeter over the installation energy demand. Among compatible inverters, it is highly recommended to use along with Huawei Sun 2000L inverters. With this device, a zero-feed to grid can be created to avoid grid inyection of the surplus energy if so desired.

Wattmeter specs

  • Single-phase energy analyzer.
  • Accuracy +-0.5% RDG.
  • Backlit LCD display with integrated touch keypad.
  • kWh and kVArh energy measurement with the possibility of adding two tariffs.
  • System variables: kW, kVAr, V, A, PF, Hz...
  • Self power supply.
  • 2-DIN module dimension.
  • IP51 protection degree.
  • RS485 Modbus port.

EM112DIN datasheet

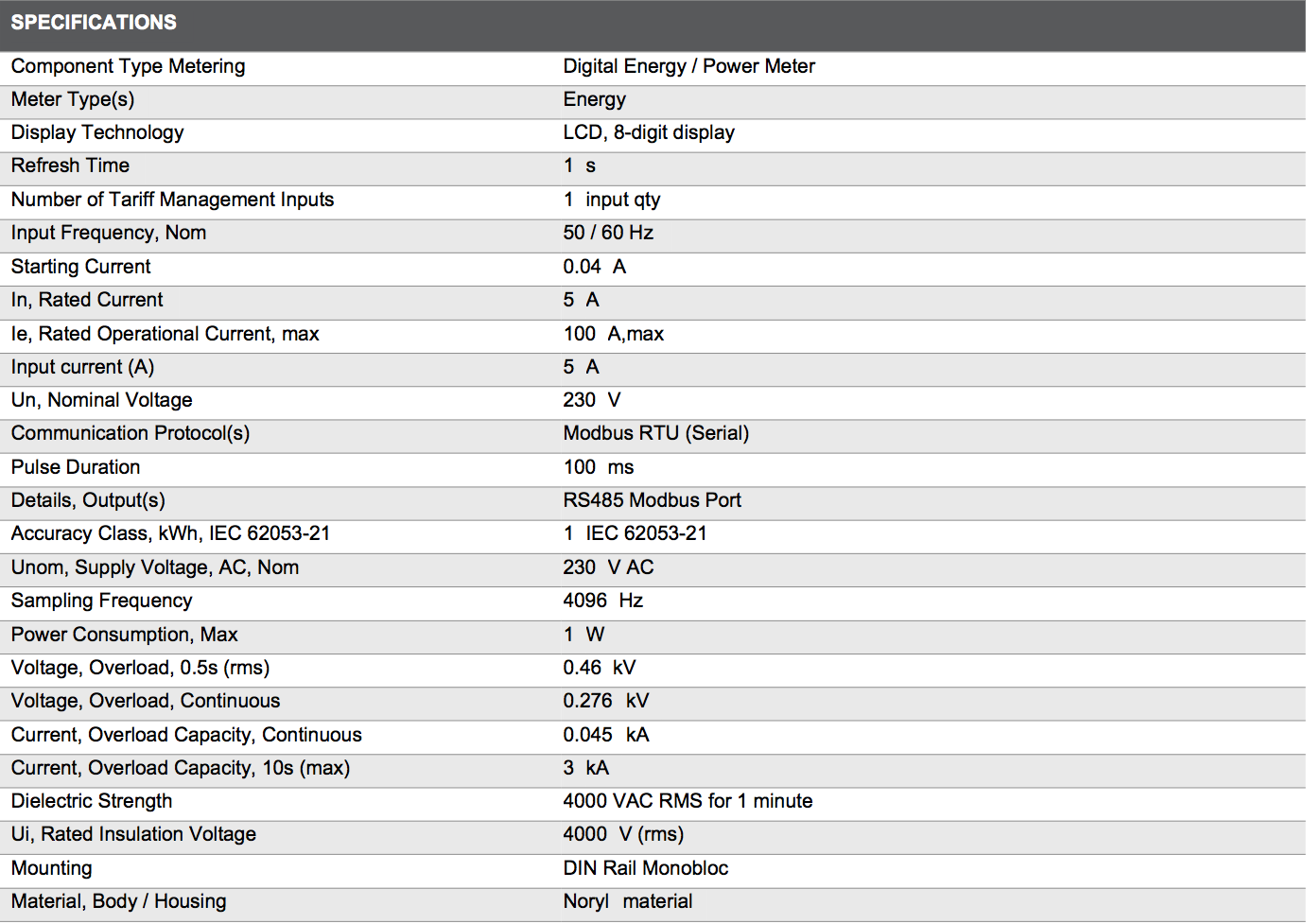

Technical specs

EM112DIN
