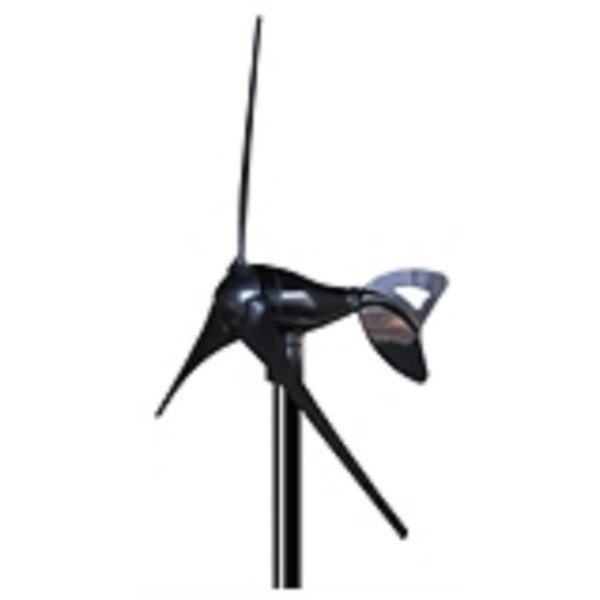

Wind Turbine FSH2000 (marine) - 2000W 24V - TECHNO SUN

Wind turbine FSH2000 at 24V, small wind turbine, great power

Despite its small size (with a rotor diameter of only 1.78 meters) and light weight (18kg), it can achieve up to 2000W of output power. The unique design of its blades makes it start to work even with breezes.

It has a perfect aerodynamic design of the blades and body, achieving a high efficiency. The new tail design makes it continue to run in wind conditions of 49.2m / s. It has intelligent wireless communication that allows you to capture the output at any time.

Characteristics:

• Shovels with a new design that allows it to start working with the breeze
• Elegant design and aesthetics
• Power generator with a weight of 7.2Kg and a maximum power of 4.5kW
• Produces energy at low wind speeds
• Silent operation
• Wireless Monitor
• 15 year shelf life
• 3 year warranty
• Type of wind turbine: horizontal axis against the wind
• Rotor Diameter: 1.776mts (69.9 ")
• Weight: 18Kg (38lbs)
• Mounting Diameter: 48.6mm (1-15 / 16 ")
• Number of blades: 3
• Material of the blades: carbon fiber
• Weight of each blade: 532g
• Body material: Die-cast aluminum
• Finish: Teflon-based paint
• Generator: Synchronous, three-phase power generator with neodymium magnets, iron-boron
• Built-in protection circuit
• Built-in data logger
• 360 degree free spin
• Direction control with tail rotation
• Non-stop output control
• Starting speed: 3m / s
• Maximum speed: 49.2m / s
• Maximum power: 2kW (20m / s)
• Maximum rotor speed: 1000rpm (20m / s)
• Output voltage: DC 50V
• Brake system: regenerative electromagnetic braking system
• Recommended communication system (output signal): Wireless 2 remote interface system
• No mains operation: 12V, 420Ah, deep cycle, with marine batteries

Download technical sheet Wind Turbines Technosun
