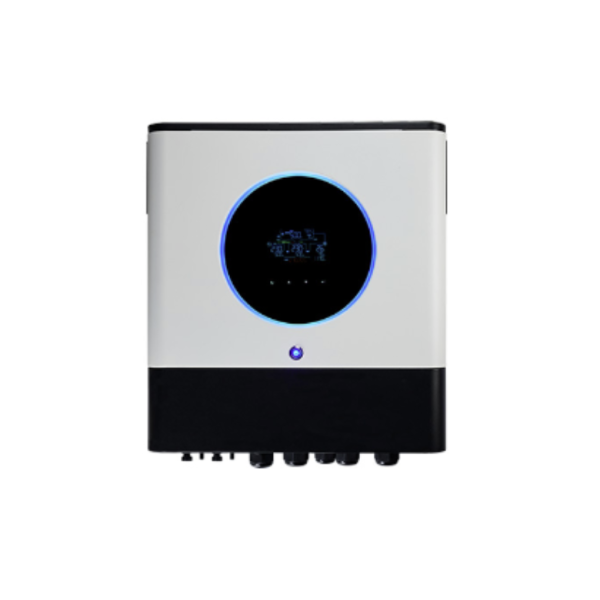

Voltronic Axpert MAX II Duplex 11K - 48V off-grid inverter

Inverter characteristics for insulated Axpert MAX II Duplex 11K

The new Voltronic Axpert equipment, Axpert MAX II Duplex 11K model is a high-performance isolated inverter with 150 A MPPT solar charger and customizable state LED bar with RGB lights.

This equipment for off-grid installations has two outputs, ideal for smarter load management. The second output can be programmed as on/off and through the LCD panel the SOC cut-off voltage and many other parameters can be quickly set.

 In the case of vehicles of categories M1 and N1

Download the installation manual for the Axpert MAX II Duplex 11K

Summary of main features of the Axpert MAX II Duplex 11K

- Two independent power supplies connect and switch automatically.

- Charging current adjustment for two different power supplies via the LCD screen and mobile app.

- State indication with RGB light.

- Maximum FV input current increases to 27 A.

- Wi-Fi integrated for mobile monitoring (Android/iOS app is available).

- It supports USB on-the-go.

- Replaceable fan for easy maintenance.

- Design independent of the battery.

- Configurable AC/PV use and output timing.

- Selectable input voltage range for home appliances and personal computers.

- Integrated dust kit.

- Running in parallel with six units.
