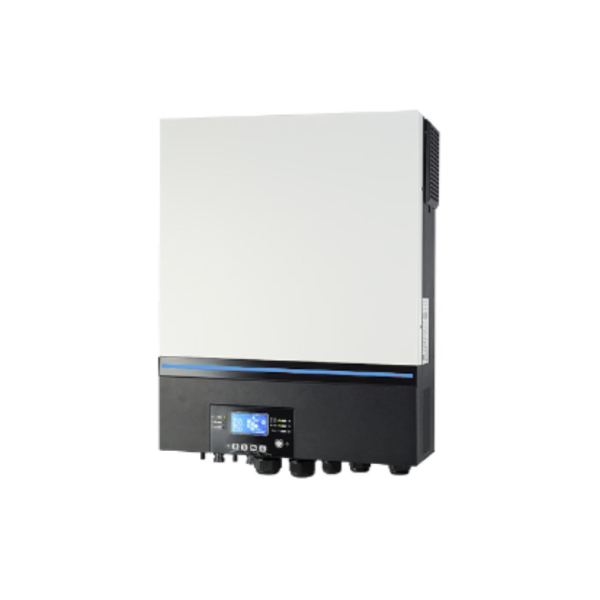

Voltronic Axpert MAX E Duplex 11K - 48V off-grid inverter

Inverter characteristics for insulated Axpert MAX E Duplex 11K

The new Voltronic Axpert equipment, model MAX E Duplex 11K is a high-performance isolated inverter with 150 A MPPT solar charger and customizable state LED bar with RGB lights.

This equipment for off-grid installations has two outputs, ideal for smarter load management. The second output can be programmed as on/off and through the LCD panel the SOC cut-off voltage and many other parameters can be quickly set.

 Downloading of the technical file Axpert MAX E Duplex 11K

Download the installation manual for the Axpert MAX E Duplex 11K

Summary of main features Axpert MAX E Duplex 11K

- Two independent power supplies connect and switch automatically.

- Charging current adjustment for two different power supplies via the LCD screen and mobile app.

- State indication with RGB light.

- Maximum FV input current increases to 27 A.

- Wi-Fi integrated for mobile monitoring (Android/iOS app is available).

- It supports USB on-the-go.

- Replaceable fan for easy maintenance.

- Design independent of the battery.

- Configurable AC/PV use and output timing.

- Selectable input voltage range for home appliances and personal computers.

- Integrated dust kit.

- Running in parallel with six units.
