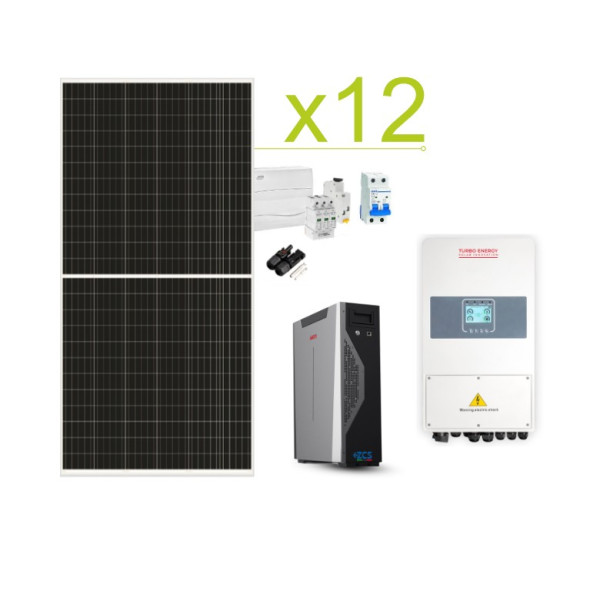

Solar Autoconsumption Kit Turbo Energy 34,560Wh/day And WeCo 5.3kWh Lithium Battery

5kW hybrid inverter from the Turbo Energy brand, ideal for both photovoltaic self-consumption applications and isolated grid installations. It has the Peak Shaving function that allows the contracted power to be reduced, thanks to our software the battery is automatically programmed to be consumed at peak demand, so there is a reduction in demand from the network.

Monitoring, zero discharge and Wi-Fi included

Dimensions: 580x330x232mm

Weight: 20.5kg

Turbo Energy Hybrid Inverter 48V 5.0

5kWh hybrid inverter of the Turbo Energy brand, ideal for both photovoltaic self-consumption applications and for off-grid installations. It has the Peak Shaving function that allows to reduce the contracted power, thanks to our software the battery is automatically programmed to be consumed in peak demand so there is a reduction in demand to the grid.

 Download Technical Data Sheet Turbo Energy Hybrid Inverter 48V 5.0

 Download Turbo Energy 48V Hybrid Inverter Manual 5.0

 Download Installation Guide Turbo Energy Hybrid Inverter 48V 5.0

Main features Turbo Energy 48V 5kW hybrid inverter

- Wifi monitoring

- Compatible with Pylontech 48V batteries US2000C or US3000C

- Programmable operating modes

- Peak Shaving

- 5kW backup output

- Smart Load

- Overload protection

Dimensions: 580x330x232 mm

Weight: 20,5 kg

Certificates and warranty Turbo Energy 48V 5.0

 Download Declaration of Conformity Turbo Energy Hybrid Inverter 48V 5.0

 Download Certificate of Conformity (Intertek) Turbo Energy Hybrid Inverter 48V 5.0

 Download Warranty Turbo Energy Hybrid Inverter 48V 5.0

The WeCo 5.3kWh 48V lithium battery with modular system is one of the most outstanding storage systems for use in stand-alone or self-consumption photovoltaic installations.

The WeCo ESS - 5K3 - Dual Voltage universal battery is compatible with the most widely used inverter brands; Goodwe, Voltronic Axpert, Studer, Sma, Azurro...

Module capacity: 5,3kWh

Dimensions: 460x520x155mm | Weight: 53kg

Modular system: Max. 5 units in parallel or 25 units with WeCo Expansion Hub.

Low voltage / high voltage applications

Product guarantee: 10 years

IMPORTANT - ACCESSORIES - READ DESCRIPTION

Features WeCo 5,3kWh 48V lithium battery - ESS 5K3

The WeCo modular lithium battery is one of the most advanced on the market for storage in photovoltaic solar energy systems. The WeCo battery is expandable and allows to connect from 1 module of 5.3kWh to 5 modules in parallel or even to add 5 clusters of 5 modules each thanks to the WeCo HUB to reach up to 132.5kWh.

IMPORTANT - ACCESSORIES

If it is the first WeCo battery that you connect, you will need the WeCo brand compatible power cable kit and its communication cable in addition to the support if necessary.

In the event that you already have a WeCo battery and it is the second battery to install and it is for 48V use, in this case, you will need the parallel terminals and the bracket if necessary.

In the event that you already have a WeCo battery and it is the second battery to install and it is for a high voltage one, in this case, you will not need any extras except the support in case you need it.

ACCESORIES

Current Cable Kit

Communication Cable WeCo

Parallel Connectors WeCo

 Technical datasheet WeCo 5K3 lithium battery

 Installation manual WeCo 5K3 lithium battery

 Guarantee of WeCo 5K3 Lithium battery

The WeCo modular lithium battery is one of the most popular and most efficient lithium batteries on the market:

- Battery with universal compatibility: The WeCo battery works with the inverters of the main brands on the market such as Goodwe in the case of self-consumption or Voltronic Axpert for isolated houses. It can also work with any other brand without communication, simply by adding the values recommended by the manufacturer.

- 100% depth of discharge: One of the few batteries on the market that allows complete discharges with 7800 cycles at 100%.

- Charge/Discharge Intensity: Thanks to its active equalizer and cell technology, it allows a higher charge and discharge intensity than most competitive batteries. The 1C charge and discharge allows the battery to be fully charged in 1 hour and discharged to over 5,000Wh.

- BMS or intelligent BMU: The BMS is one of the indispensable electronic components in lithium batteries, providing constant monitoring of battery charging and discharging and enabling totally safe operation. The BMS system in the WeCo lithium battery is one of the most advanced in the energy storage industry.

- Operation under extreme temperatures: WeCo 5K3 battery modules can operate between -25°C and 65°C.

- Active Equaliser: Another major advantage of this battery over the competition is its active equaliser which ensures constant cell balancing and prevents loss of performance.

WeCo's active equaliser exchanges energy between higher voltage cells and lower voltage cells. This system allows for high charging and discharging efficiency. Another interesting advantage of this equaliser is its ability to match high currents, which can compensate more than 10A between cells, enabling immediate balancing.

The active equaliser plays a key role in extending the life of the WeCo battery and achieving a fully efficient system.

How to connect WeCo lithium batteries in parallel?

The modular system of the WeCo battery allows us to expand our system according to our needs. In low voltage systems we can add 5.3kWh WeCo battery modules and expand up to a 5-battery cluster of 26.5kWh in parallel. The compact and handy design of the battery allows it to be fixed to the wall when using a single module or to stack the batteries securely when using more than one module. The WeCo battery does not require a cabinet and the necessary communication cables are included.

If we want to connect more than 5 modules in our low voltage system, we will need a WeCo Expansion Hub. Thanks to the Hub we can make up to 5 battery clusters and reach 130kWh capacity.

If what we need is a high voltage system with WeCo, we will need a minimum of 15.6kWh to start working, i.e. 3 battery modules. By connecting multiple clusters we can reach a capacity of up to 561.4kWh.

Weco Batteries monitoring and mobile app

The WeCo battery allows Wifi connection compatible with 5G, which allows a quick and easy configuration and start-up. WeCo batteries have their own mobile App WeCo Batteries with which we can monitor the status of our storage system at all times. To control our WeCo battery via mobile phone we need to add a WeCo Wifi accessory.

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.

Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA

Model: EPR2C040030

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Interior surface panel 12 Legrand elements

The WeCo current cable kit is necessary for the connection of the battery to our PV inverter. This cable kit is compatible with WeCo battery models.

Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting to the inverter.

2 x 2m long power cables (positive and negative)

Important: The communication cable between battery and inverter is purchased separately. You can purchase it here for the Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7,200-48, Voltronic Axpert VM IV 3,600-24, Voltronic Axpert VM IV 5,600-48, Voltronic Axpert MAX II 8,200-48 as well as for the Ingecon SUN Storage 6 TL M inverters from Ingeteam.

2M communication cable for connecting inverters with WeCo brand lithium batteries.

Please consult with us if you have any questions about the compatibility of your equipment with this cable. Not sold separately.
