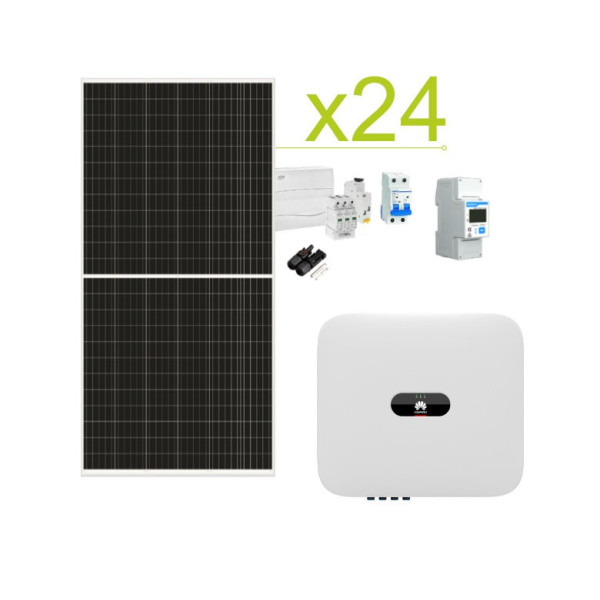

Triphasic Solar AutoConsumption Kit Huawei 69,120Wh/day
Self-consumption solar kit capable of producing up to 69,120Wh/day. The solar kit consists of 1x NEW Inverter Huawei 10KTL M1, (injected zero) Smart Power Sensor and monitoring system, 24x solar panels 480W 120 cells. It is applied on residential homes, country houses, both for regular use and weekends.
The self-consumption kit manages smartly and efficiently energy sources, combine solar and network energy, with zero injection.
Leapton solar 480W LP182-18-M-60-NH N Type TOPCon - 25 years warranty
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
- This product is not available for order.
Huawei SUN2000-10KTL M1 - Three Phase Inverter
The solar inverter Huawei 10KTL-M1 is an innovative solution of Huawei for solar installations with connection to three-phase network with or without battery. Its compact design with reduced size offers flexibility in its installation. It incorporates LCD screen for easy control and monitoring in real time.
The Huawei network inverter SUN2000-10KTL-M1 is compatible with three-phase installations up to 10,000W. It incorporates two MPPT.
Dimensions: 525x470x266mm Weight: 17kg
DTSU666-H Smart Power Sensor - Energy meter for three-phase Huawei inverter
DTSU666-H is an energy meter Three-phase designed to monitor power and to measure the energy in power systems. It belongs to a generation of programmable intelligent instruments, integrated with monitoring and communication functions. It is mainly thought to be used for real-time measurement and display for electrical parameters.
Compatible with threephase Huawei inverters.
To receive the necessary technical support for the start-up and configuration of the equipment or for the processing of the warranty, if necessary, you must select it in the drop-down menu. If you do not do so, you should always contact the manufacturer.
IMPORTANT: This equipment is not sold separately without its corresponding inverter.
- This product is not available at this time.
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
Magnetothermic switch - Automatic 4 poles 25A
Interruptor magnetotérmico Alpha+ industrial. 4P, 25A, Curva C. 6kA
Model: EPB63M4C25
25A 4P Differential Kayal
Industrial and tertiary Alpha+ differential.4P, 25A, 30mA.Class AC.6kA
Model: EPR4C025030
Permanent and transient overvoltages 4p 40A
Protector combi Alpha + overvoltages P+T 4P, 40A 15kA
Model: EPBOV4SC40
One of product is no longer available. This pack cant be purchased
Pack content
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
Leapton solar panel 480W LP182-18-M-60-NH N Type topon
480W monocrystalline Leapton solar module with N-Type TOPCon technology that ensures maximum efficiency even in low light conditions.
The 480W Leapton solar panel has a 25-year warranty and is within the Tier1 list of best-selling brands.
See also Leapton solar 480W LP182-18-M-60-NH
This Regulation shall be binding in its entirety and directly applicable in all Member States
The Commission therefore concludes that the contested scheme is compatible with the internal market
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
The number of cells shall be reported
It incorporates the latest technology in photovoltaic cell development with the N-Type TOPCon that increases output per cell from 10 to 20W.
It shall be capable of operating at a power output not exceeding 30 W
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
The solar inverter Huawei 10KTL-M1 is an innovative solution of Huawei for solar installations with connection to three-phase network with or without battery. Its compact design with reduced size offers flexibility in its installation. It incorporates LCD screen for easy control and monitoring in real time.
The Huawei network inverter SUN2000-10KTL-M1 is compatible with three-phase installations up to 10,000W. It incorporates two MPPT.
Dimensions: 525x470x266mm Weight: 17kg
Huawei SUN2000-10KTL M1 inverter - Battery ready
Huawei brings to market its line of solar inverters, the Chinese magnate treats energy solutions with solar photovoltaic energy through its new solar inverters of the Huawei Fusion Home Sun 2000 line. The product is characterized by a strong investment in R & D resulting in a powerful solar inverter, wave pure sinusoidal, latest technology, compact and small compatible with act for the connection to red.
Download Huawei Inverter Instruction Manual 10KTL-M1
In its catalog of products we find the Huawei inverter for residential use and for industrial use, offering up to 5 models of different powers for residential use according to the energy needs of the users.
Huawei Fusion Home Inverters with Huawei 10KTL-M1:
For residential use in addition to the 10KTL-M1 of the models;
Huawei solar inverter 12KTL-M2
Huawei Solar Inverter 17KTL-M2
Huawei Solar Inverter 20KTL-M2
Huawei Solar Inverter 36KTL-M0
Huawei Solar Inverter 60KTL-M0
Features Huawei Inverter 10KTL-M1
Huawei inverters are designed and manufactured with the latest technology for residential use, the inverter optimizes to the maximum the energy generated by the solar panels, its main characteristics are;
Intelligent solar panel optimization system for Huawei inverter 10KTL-M1
The inverter Huawei 10KTL-M1 incorporates software designed to achieve efficiency levels of up to 99.5% of solar panels, the system optimizes the production of each solar panel of the solar installation. Even with the monitoring system, control can be managed at the module level.
The Huawei 10KTL inverter has FusionHome-NetEco 10000s Management System
In addition to improving the operation of the solar installation Huawei inverters have an APP that allows real-time display of the parameters of the solar installation, can optimize consumption and help improve the performance of the photovoltaic system.
The Huawei 10KT-M1 inverter can be combined with the Smart Home Hub
The aim is to install a component with which the Huawei 10KTL-M1 inverter manages to combine the production of photovoltaic energy with the consumption of household appliances, thus optimizing the photovoltaic installation.
Monitoring Huawei Inverter 10KTL-M1 with APP
Consult all the information about the energy production of the solar panels, the consumption of connection to network, consumption graphs, consultation of historical, configuration and optimization of the operation of the installation. With the APP for Huawei Investers you can monitor your installation easily and easily.
Watch Video Monitoring Huawei Sun2000 IOS
Watch Video Monitoring Huawei Sun2000 ANDROID
Download Installation Guide for Huawei Inverters APP
Install Huawei Inverter 10KTL-M1
The installation of Huawei S2000 inverters is very simple, it is necessary to take into account the installation mode, since depending on whether it is connected to a network and, it will be necessary to use one scheme or another. Once you have chosen the type of inverter and the connection mode, you just have to follow the manufacturer's instructions. Below you can download the Huawei solar inverter installation manuals.
Huawei Fusion Home Solar Inverter Warranty 10KTL-M1
The guarantee specified by the Chinese giant Huawei for its range of solar inverters Fusion Home is 10 years expandable, thus equaling the major brands of inverters, offering confidence and offering a great after-sales service as well as a great technical service.
For more information about the Huawei hybrid solar inverters of the Fusion Home line please contact us, we will be happy to help you.
Technical specifications of the Huawei Fusion Home 10KTL-M1 inverter
DTSU666-H is an energy meter Three-phase designed to monitor power and to measure the energy in power systems. It belongs to a generation of programmable intelligent instruments, integrated with monitoring and communication functions. It is mainly thought to be used for real-time measurement and display for electrical parameters.
Compatible with threephase Huawei inverters.
To receive the necessary technical support for the start-up and configuration of the equipment or for the processing of the warranty, if necessary, you must select it in the drop-down menu. If you do not do so, you should always contact the manufacturer.
IMPORTANT: This equipment is not sold separately without its corresponding inverter.
Main functions Smart Power Sensor DTSU666-H three-phse
- DIN35mm standard for rail mounting.
- Segment LCD display.
- Measurement parameters: voltage, current, active and reactive power, frequency, power factor...
- RS485 communication. DL/T645-2007 protocol is supported, customizable for MODBUS-RTU protocol.
- Top, peak, flat and valley rates are supported.
- Suggested installation along with three-phase Huawei inverters.
Download technical datasheet for smart power sensor DTSU666-H
Main parameters
|
Technical parameters |
Index |
|||
|
Input signal |
voltage |
Wiring mode |
Three phase four wire |
|
|
Voltage specification |
AC 3×220V/380V |
|||
|
Specified work voltage range |
0.9Un~1.1Un; the extensional work voltage range: 0.8Un~1.2Un |
|||
|
Consumption of the voltage circuit |
≤5VA/1W(each phase) |
|||
|
Resistance |
>500kΩ |
|||
|
Current |
Rated value |
Via PT/CT input AC1.5(6)A |
||
|
Direct input AC 5(80)A |
||||
|
Current overload |
Via PT/CT input: instant:201max, time of application: 0.5S |
|||
|
Direct input: instant:301max, time of application: half cycle of the rated frequency |
||||
|
Consumption of the current circuit |
≤2VA |
|||
|
Resistance |
<20mΩ(each phase) |
|||
|
Frequency |
Input range |
(50±5%)Hz |
||
|
Output |
Display |
Segment LCD |
||
|
Measurement parameters & grade |
Voltage Class 0.5; Current Class 0.5; Power factor Class 1; Frequency Class 0.5; Reactive power :Class 1; Reactive energy: Class 2; |
|||
|
Energy |
Multi-rate energy |
Support positive/negative total active/reactive multi-rate measurement function |
||
|
Four-quadrant energy |
Support reactive four quadrant energy measurement function |
|||
|
Max. demand record |
Support positive/negative total active/reactive max. demand record, demand cycle and slip time can be set |
|||
|
Pulse constant |
AC3×200V/380V AC1.5(6)A 6400imp/kWh(imp/kvarh) |
|||
|
AC3×200V/380V AC5(80)A 400imp/kWh(imp/kvarh) |
||||
|
Pulse signal output |
Provide 1 set(active/reactive energy)optical signal and optocoupler isolated open collector electrical signal pulse output, pulse length:80ms±16ms |
|||
|
Communication |
RS485 communication |
Support MODBUS-RTU or DL/T645-2007 communication protocol(switchable), the communication baud rate 1200bps, 2400bps,4800bps,9600bps can be set, assumed to be 9600bps |
||
|
IR communication(*) |
Support MODBUS-RTU or DL/T645-2007 communication protocol(switchable), Infrared wavelength: 900nm~1000nm communication baud rate:1200bps communication angle: ≥±15° communication distance:≥4m |
|||
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
Interruptor magnetotérmico Alpha+ industrial. 4P, 25A, Curva C. 6kA
Model: EPB63M4C25
Industrial and tertiary Alpha+ differential.4P, 25A, 30mA.Class AC.6kA
Model: EPR4C025030
Protector combi Alpha + overvoltages P+T 4P, 40A 15kA
Model: EPBOV4SC40
| Tension: | 400V AC |
| Frequency: | 50-60 Hz |
| Class Electrical Insulation: | II |
| Shot wound: | C |
| Number of Polos: | 4P+T |
| Guarantee: | 3 Years |
| Certificates: | CE & RoHS,UKCA |
Inner surface box 24 elements Legrand
Self-consumption solar kit capable of producing up to 69,120Wh/day. The solar kit consists of 1x NEW Inverter Huawei 10KTL M1, (injected zero) Smart Power Sensor and monitoring system, 24x solar panels 480W 120 cells. It is applied on residential homes, country houses, both for regular use and weekends.
The self-consumption kit manages smartly and efficiently energy sources, combine solar and network energy, with zero injection.
