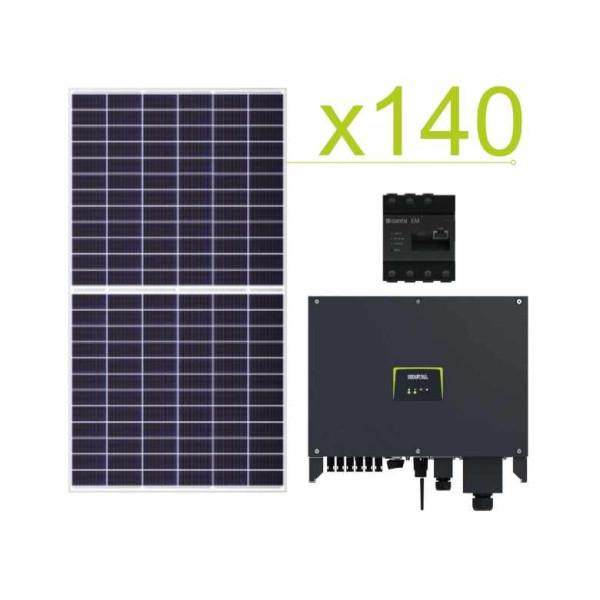

Triphasic Solar AutoConsumption Kit Kostal PIKO CI 403,200Wh/day

Kostal PIKO CI 60 Three-Phase on-grid Inverter, optimized for the requirements of the largest photovoltaic installations, the new PIKO CI (Commercial Inverter) inverters in the 30, 50 and 60 kW power classes offer numerous options for the construction of plants within Projects.

The integrated KOSTAL Smart AC Switch makes external coupling switches no longer necessary and thus enables additional cost savings. At the same time, new project investors have increased safety and efficiency.

* Technical support not included. Eligible separately here.

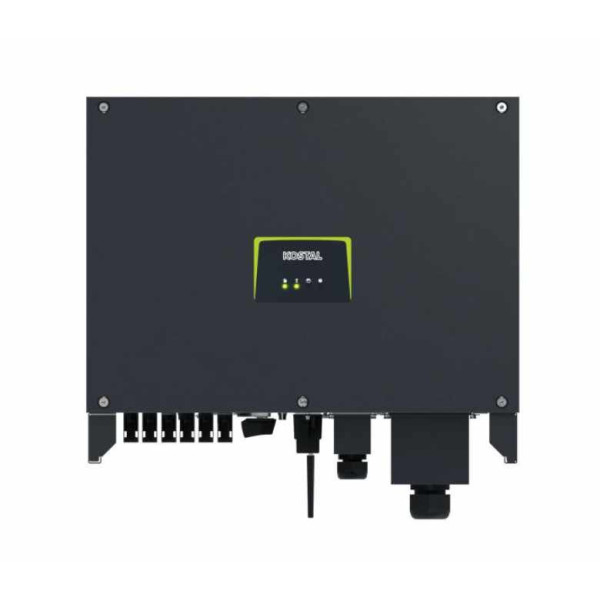

On-grid inverter Trifásico Kostal PIKO CI 60

Kostal PIKO CI 30 Three-Phase Inverter, optimized for the requirements of the largest photovoltaic installations, the new PIKO CI (Commercial Inverter) inverters in the 30, 50 and 60 kW power classes offer numerous options for the construction of plants within Projects.

The integrated KOSTAL Smart AC Switch makes external coupling switches no longer necessary and thus enables additional cost savings. At the same time, new project investors have increased safety and efficiency.

Download datasheet Inverter Kostal PIKO CI

Smart Project Design

Optimized generator design thanks to a system voltage of up to 1100 V

Simple and inexpensive DC installation without string junction boxes

On-site generator shutdown via integrated DC isolating point

Flexible generator design by oversizing up to 50% (DC to AC)

Integrated KOSTAL Smart AC Switch, replaces external coupling switch

Smart Performance

Maximum energy production thanks to the high certified coefficient of performance

Optimal monitoring and support thanks to the supervision of the connected photovoltaic strings

Reliable use through integrated and certified network service functions

Smart Connected

Easy communication (Daisy Chain) through dual LAN interface (RJ 45) with integrated switch

Proven communication via an integrated RS485 bus as standard

Free choice of supervision through compatibility with many parking controllers and data loggers

Easy to use in direct marketing thanks to integrated energy management

Secure system data recording at all times thanks to integrated data recording

Smart Installation

Optimal protection against dust and water for use in extreme outdoor conditions (protection class IP 65)

Overvoltage protection on the AC and DC side type 2

Cost-optimized 4-conductor AC connection, neutral conductor not required

Energy Meter EM300 LR Zero Injection

EM300 anti-seize clamp valid for Kostal PIKO MP Plus inverters and Kostal PIKO Plenticore inverters, ideal for optimizing the system. Wifi network communication valid for three-phase and single-phase inverters.

DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.

Features and specifications Energy Manager EM300

The Energy Manager EM300 is used to record the self-consumption of the home or the power that is injected into the network, and represent the corresponding values ​​in the solar portal.

In this case, the sensor can, in combination with the inverter, dynamically regulate self-consumption and optimally distribute the energy generated.

Download Data Sheet Energy Meter EM300

Characteristics of the EM300 Energy Meter

• 100% coordinated modern solution.
• Real-time data measurement
• Efficient tool.

  The equipment should only be used in photovoltaic installations connected to the network within the expected power range. The equipment is not suitable for portable use.

  Incorrect use can cause damage to equipment or other objects. The current sensor must be used exclusively for its intended use.



The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.

Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

Industrial and tertiary Alpha+ differential.4P, 25A, 30mA.Class AC.6kA

Model: EPR4C025030

Interruptor magnetotérmico Alpha+ industrial. 4P, 25A, Curva C. 6kA

Model: EPB63M4C25

Protector combi Alpha + overvoltages P+T 2P, 40A 15kA

Model: EPBOV2SC40

Inner surface box 24 elements Legrand
