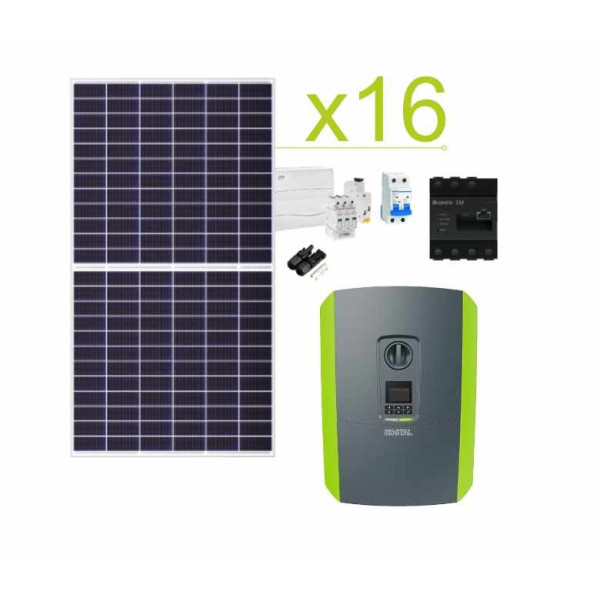

Triphasic Solar AutoConsumption Kit Kostal PIKO 46,080Wh/day
Autoconsumption solar kit with batteries capable of producing up to 46,080Wh/day, the solar kit consists of 1x Inverter Kostal PIKO 7.0 Plenticore PLUS, 16x solar panels 480W 120 Cells, 1x Energy Meter EM300 power regulator, Monitoring system through Kostal Piko Solar Portal. It is applied on residential homes, country houses, both for regular use and weekends.
The self-consumption kit manages smartly and efficiently energy sources, combine solar and network energy, with zero injection.
-- OPCIONAL --
Also as extra to this kit we can find the Wallbox Enector Kostal for electric cars.
Leapton solar 480W LP182-18-M-60-NH N Type TOPCon - 25 years warranty
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
- This product is not available for order.
Hybrid Three-Phase Kostal Inverter PIKO 7.0 Plenticore PLUS
Kostal PIKO 7.0 Plenticore Plus Three-Phase Hybrid Inverter, Intelligent energy management, the new KOSTAL PIKO 7.0 inverter has 3 PMP inputs, one of them valid for High Voltage batteries, the Kostal three-phase hybrid inverter is an energy solution for residential homes that want increase your self-consumption.
It is a photovoltaic hybrid inverter capable of generating up to 7000w in three-phase voltage, improves the operation of the installation and can work with the network. It will incorporate monitoring, historical record, instant consumption and graphics. Plenticore Plus are photovoltaic solar inverters that are committed to innovation, efficiency and effectiveness, improving photovoltaic systems.
* Technical support not included. Eligible separately here.
- No
- Yes
Energy Meter EM300 LR
Energy Meter EM300 LR Zero Injection
EM300 anti-seize clamp valid for Kostal PIKO MP Plus inverters and Kostal PIKO Plenticore inverters, ideal for optimizing the system. Wifi network communication valid for three-phase and single-phase inverters.
DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
25A 4P Differential Kayal
Industrial and tertiary Alpha+ differential.4P, 25A, 30mA.Class AC.6kA
Model: EPR4C025030
Magnetothermic switch - Automatic 4 poles 25A
Interruptor magnetotérmico Alpha+ industrial. 4P, 25A, Curva C. 6kA
Model: EPB63M4C25
Permanent and transient overvoltages 2p 40A
Protector combi Alpha + overvoltages P+T 2P, 40A 15kA
Model: EPBOV2SC40
One of product is no longer available. This pack cant be purchased
Pack content
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
Leapton solar panel 480W LP182-18-M-60-NH N Type topon
480W monocrystalline Leapton solar module with N-Type TOPCon technology that ensures maximum efficiency even in low light conditions.
The 480W Leapton solar panel has a 25-year warranty and is within the Tier1 list of best-selling brands.
See also Leapton solar 480W LP182-18-M-60-NH
This Regulation shall be binding in its entirety and directly applicable in all Member States
The Commission therefore concludes that the contested scheme is compatible with the internal market
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
The number of cells shall be reported
It incorporates the latest technology in photovoltaic cell development with the N-Type TOPCon that increases output per cell from 10 to 20W.
It shall be capable of operating at a power output not exceeding 30 W
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
Kostal PIKO 7.0 Plenticore Plus Three-Phase Hybrid Inverter, Intelligent energy management, the new KOSTAL PIKO 7.0 inverter has 3 PMP inputs, one of them valid for High Voltage batteries, the Kostal three-phase hybrid inverter is an energy solution for residential homes that want increase your self-consumption.
It is a photovoltaic hybrid inverter capable of generating up to 7000w in three-phase voltage, improves the operation of the installation and can work with the network. It will incorporate monitoring, historical record, instant consumption and graphics. Plenticore Plus are photovoltaic solar inverters that are committed to innovation, efficiency and effectiveness, improving photovoltaic systems.
* Technical support not included. Eligible separately here.
Hybrid Three-Phase Kostal Inverter PIKO 7.0 Plenticore PLUS
Kostal PIKO 7.0 Plenticore Plus Three-Phase Hybrid Inverter, Intelligent energy management, the new KOSTAL PIKO 7.0 inverter has 3 PMP inputs, one of them valid for High Voltage batteries, the Kostal three-phase hybrid inverter is an energy solution for residential homes that want increase your self-consumption.
It is a photovoltaic hybrid inverter capable of generating up to 7000w in three-phase voltage, improves the operation of the installation and can work with the network. It will incorporate monitoring, historical record, instant consumption and graphics. Plenticore Plus are photovoltaic solar inverters that are committed to innovation, efficiency and effectiveness, improving photovoltaic systems.
Download datasheet Hybrid Three-phase Inverter Kostal
Download operation user Hybrid Three-phase Inverter Kostal
Download quick guide BYD Battery-Box HV Hybrid Three-phase Inverter Kostal
Connection BYD BATTERY BOX Batteries with Kostal Plenticore Plus inverters
All in one - Kostal PLENTICORE plus 7.0
Hybrid PV inverter with battery input with optional activation code
Compatibility with various high voltage batteries
3 PMP trackers for dimensioning almost all roofs
Extended PMP range - perfect for "repowering"
Smart Connected - Kostal PLENTICORE plus 7.0
Smart Communication Board: ready for the future - new functions expandable via integrated web application
Display, data logging, system monitoring, network interfaces and regulation integrated as standard, WLAN Ready via external USB WLAN adapter
Free Solar Portal for the monitoring of the photovoltaic installation
EEBus and Sunspec for Smart Home integration
Smart Performance - Kostal PLENTICORE plus 7.0
Fast, self-learning shadow management - individually tailored to the installation site
Dynamic control of active power and measurement of household consumption 24 hours a day
Generation and consumption forecasting with self-learning: for optimal self-consumption
Low transformation losses thanks to DC coupling and high voltage battery
Prepared for additional battery charging from AC power sources
Fácil Instalación - Kostal PLENTICORE plus 7.0
Easy device configuration using the commissioning wizard
Easy installation through separate clear connection area and protected power electronics
Compatible with RCD type A
Automatic update and remote support
Kostal Plenticore plus Inverter Installation
Energy Meter EM300 LR Zero Injection
EM300 anti-seize clamp valid for Kostal PIKO MP Plus inverters and Kostal PIKO Plenticore inverters, ideal for optimizing the system. Wifi network communication valid for three-phase and single-phase inverters.
DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.
Features and specifications Energy Manager EM300
The Energy Manager EM300 is used to record the self-consumption of the home or the power that is injected into the network, and represent the corresponding values in the solar portal.
In this case, the sensor can, in combination with the inverter, dynamically regulate self-consumption and optimally distribute the energy generated.
Download Data Sheet Energy Meter EM300
Characteristics of the EM300 Energy Meter
- 100% coordinated modern solution.
- Real-time data measurement
- Efficient tool.
The equipment should only be used in photovoltaic installations connected to the network within the expected power range. The equipment is not suitable for portable use.
Incorrect use can cause damage to equipment or other objects. The current sensor must be used exclusively for its intended use.
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
Industrial and tertiary Alpha+ differential.4P, 25A, 30mA.Class AC.6kA
Model: EPR4C025030
Interruptor magnetotérmico Alpha+ industrial. 4P, 25A, Curva C. 6kA
Model: EPB63M4C25
Protector combi Alpha + overvoltages P+T 2P, 40A 15kA
Model: EPBOV2SC40
| Tension: | 170-280V AC |
| Frequency: | 50-60 Hz |
| Class Electrical Insulation: | II |
| Shot wound: | C |
| Number of Polos: | 2P+T |
| Guarantee: | 3 Years |
| Certificates: | CE & RoHS,UKCA |
Inner surface box 24 elements Legrand
