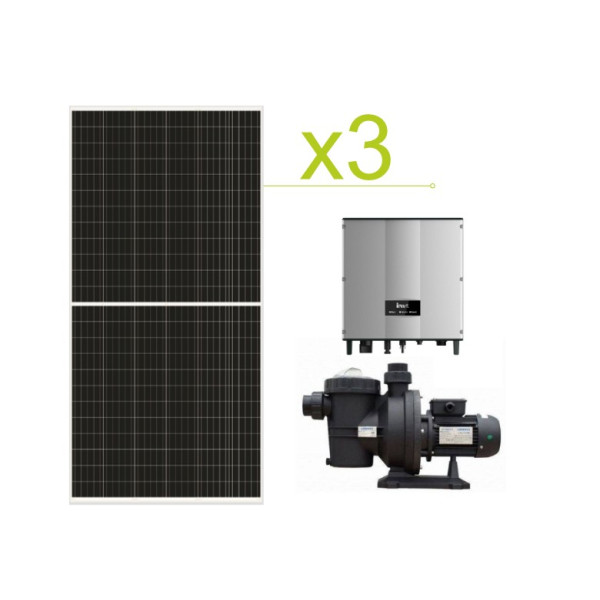

KDP-50 Solar Pool Debugger Kit
Solar panel kit for pool pump up to 0.75CV, the kit consists of 3x solar panels 480W. and 1x pool pump 0.75CV. The kit takes advantage of the direct photovoltaic solar energy production to spin the pool pump engine and clean the water. The 0.75CV pool pump solar kit can be cleaned up to 50,000 litres of water. Ideal for small and medium pools.
The solar kit for the pool debugger pump is ideal for the sizes 8x4, 10x4 and 12x4, standard measurements of private pools. Ask without compromise solar pool kit prices, solar plates, solar pumping controller and engine compatibility of the pump.
Solar Pump Inverter INVT BPD 0K7TN AC | 750W
Inverter INVT BPD 1K5TN AC, BDP series inverter for high protection solar pump. This inverter adopts the dynamic VI MPPT technology and motor control technology.
Dimensions: 280x300x137mm | Weight: 7Kg

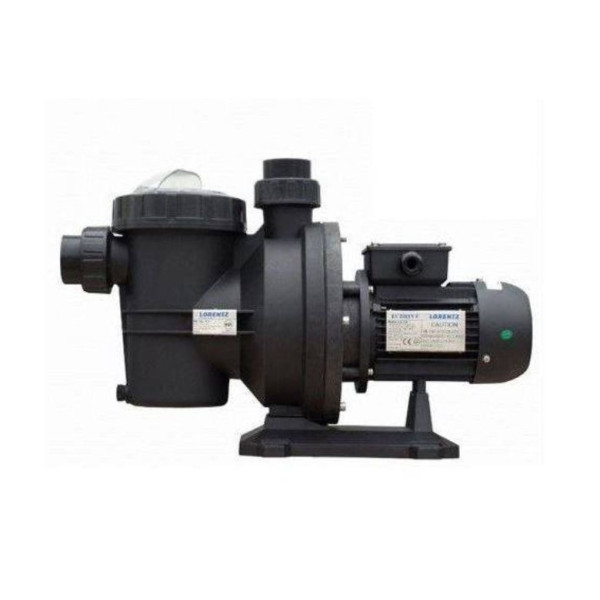

0.75CV three-phase solar pool pump
Pool Pump 0.75CV Three-phase Ideal IPE2 is a self-priming pool pump with large built-in pre-filters. The pre-filter of a pool pump is necessary for the correct operation because of the characteristics of the water to be pumped.
- This product is not available at this time.
Leapton solar 480W LP182-18-M-60-NH N Type TOPCon - 25 years warranty
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
- This product is not available for order.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
One of product is no longer available. This pack cant be purchased
Pack content
Inverter INVT BPD 1K5TN AC, BDP series inverter for high protection solar pump. This inverter adopts the dynamic VI MPPT technology and motor control technology.
Dimensions: 280x300x137mm | Weight: 7Kg
Solar pump inverter INVT BPD 1K5TN AC
Inverter INVT BPD 1K5TN AC, BDP series inverter for high protection solar pump. This inverter adopts the dynamic VI MPPT technology and motor control technology.
INVT BPD 1K5TN AC supports driving single-phase and three-phase 220V motor.
- Support single-phase and 3-phase 220V pump.
- Low startup voltage and wide input voltage range give more possibilities for accepting multi PV strings configurations.
- Bypass function optional.
- Protection class IP65 and fanless system design, with convenient installation and free maintenance advantages.
Technical Specification Inverter INVT 1K5TN AC
Technical specifications for INVT 1K5TN AC
Buy more INVT inverters
In Suministros del Sol you can buy INVT isolated inverters, as well as grid-tied inverters and hybrid inverters. We offer inverters at an economical price and with the highest quality and manufacturer's guarantee. For more information about inverters, consult us, we will hep you without compromise in your project of installation of solar inverter.
Pool Pump 0.75CV Three-phase Ideal IPE2 is a self-priming pool pump with large built-in pre-filters. The pre-filter of a pool pump is necessary for the correct operation because of the characteristics of the water to be pumped.
0.75CV three-phase solar pool pump
Pool Pump 0.75CV Three-phase Ideal IPE2 is a self-priming pool pump with large built-in pre-filters. The pre-filter of a pool pump is necessary for the correct operation because of the characteristics of the water to be pumped.
Applications
Self-priming electric pumps for swimming pool recirculation and filtration. Completely silent.
Materials
Pump body, pump foot, impeller, closure support and diffuser in technopolymer. Motor shaft in AISI 420. Mechanical seal in graphite and alumina oxide. Aluminum motor housing. NBR seals.
Motor
Two poles (N=2900 rpm) IP55 protection. Single-phase 230V with protector. Built-in technoamperometric and capacitor. Three-phase 400V. These models incorporate G2 1/4 suction and discharge fittings for gluing.
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
Leapton solar panel 480W LP182-18-M-60-NH N Type topon
480W monocrystalline Leapton solar module with N-Type TOPCon technology that ensures maximum efficiency even in low light conditions.
The 480W Leapton solar panel has a 25-year warranty and is within the Tier1 list of best-selling brands.
See also Leapton solar 480W LP182-18-M-60-NH
This Regulation shall be binding in its entirety and directly applicable in all Member States
The Commission therefore concludes that the contested scheme is compatible with the internal market
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
The number of cells shall be reported
It incorporates the latest technology in photovoltaic cell development with the N-Type TOPCon that increases output per cell from 10 to 20W.
It shall be capable of operating at a power output not exceeding 30 W
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
8 elements of Legrand
Solar panel kit for pool pump up to 0.75CV, the kit consists of 3x solar panels 480W. and 1x pool pump 0.75CV. The kit takes advantage of the direct photovoltaic solar energy production to spin the pool pump engine and clean the water. The 0.75CV pool pump solar kit can be cleaned up to 50,000 litres of water. Ideal for small and medium pools.
The solar kit for the pool debugger pump is ideal for the sizes 8x4, 10x4 and 12x4, standard measurements of private pools. Ask without compromise solar pool kit prices, solar plates, solar pumping controller and engine compatibility of the pump.
