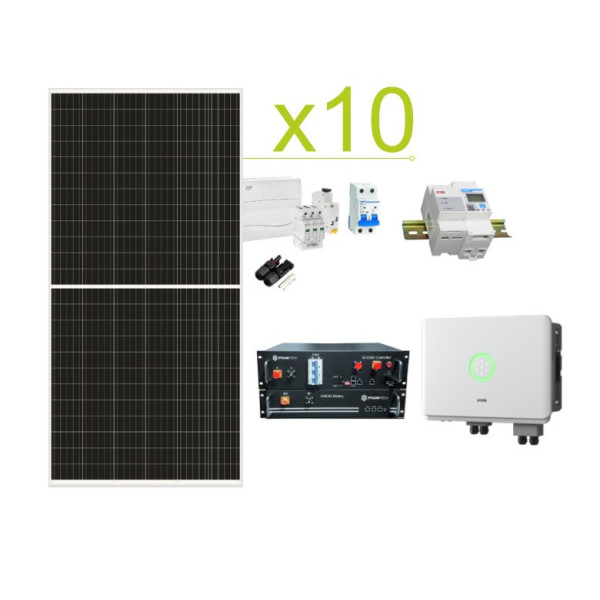

Autoconsumption Solar Kit SAJ 28,800Wh/day and lithium battery Pylontech HV 7.2-16.8kWh
Solar kit for self-consumption and isolated homes of the electric grid with lithium batteries, capable of producing up to 28,800Wh/day. It applies to residential homes, country houses, both for regular and weekend use.
The solar kit consists of 1x Investor SAJ H2 4000W Monsophase series, 10x solar panels 480W 120 cells, 1x Litio Battery Pylontech H48050 From 7.8kWh to 16.8kWh
Includes monitoring system Kit ESolar monitoring Monophase SEC.
Leapton solar 480W LP182-18-M-60-NH N Type TOPCon - 25 years warranty
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
- This product is not available for order.
SAJ H2 Series 4000W Single-Phase
New H2 series of the SAJ brand of single-phase inverters, improving quality, reliability and efficiency. This single-phase series offers inverters with power from 3kW to 6kW. The team efficiently manages the energy produced to get the most out of the solar installation.
Dimensions (mm) 380.5 x 519 x 193.5
Weight (kg) 18.5
* Technical support not included. Eligible separately here.
- This product is not available for order.
Pylontech HV H48050 - High Voltage from 7,2 to 16,8kWh - PowerCube X1
The new Pylontech PowerCube X1 HV battery forms a high voltage storage system based on lithium phosphate and iron battery modules. This battery is ideal for photovoltaic installations as it offers high power despite its compact size. PowerCube has a modular format so we can expand the capacity of our installation from 7.2kWh to 16.8kWh.
This battery is formed by modules of Pylontech H48050 and an intelligent system BMS that manages the cycles of load and discharge increasing the useful life.
*Includes battery-inverter connection cables kit and communications cable.
ESolar SEC Single-phase Monitoring Kit
ESolar SEC Single-phase monitoring kit, consisting of a Chint Single-phase DDSU666 wattmeter designed for power monitoring and energy measurement in power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly to be used in real-time measurements and visualization of electrical parameters such as voltage, current, active power, reactive power, frequency, power factor, and a SEC device for data collection.
DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
40A Differential Kayal
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Pack content
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
Leapton solar panel 480W LP182-18-M-60-NH N Type topon
480W monocrystalline Leapton solar module with N-Type TOPCon technology that ensures maximum efficiency even in low light conditions.
The 480W Leapton solar panel has a 25-year warranty and is within the Tier1 list of best-selling brands.
See also Leapton solar 480W LP182-18-M-60-NH
This Regulation shall be binding in its entirety and directly applicable in all Member States
The Commission therefore concludes that the contested scheme is compatible with the internal market
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
The number of cells shall be reported
It incorporates the latest technology in photovoltaic cell development with the N-Type TOPCon that increases output per cell from 10 to 20W.
It shall be capable of operating at a power output not exceeding 30 W
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
New H2 series of the SAJ brand of single-phase inverters, improving quality, reliability and efficiency. This single-phase series offers inverters with power from 3kW to 6kW. The team efficiently manages the energy produced to get the most out of the solar installation.
Dimensions (mm) 380.5 x 519 x 193.5
Weight (kg) 18.5
* Technical support not included. Eligible separately here.
SAJ H2 Series 4000W Single-Phase
New H2 series of the SAJ brand of single-phase inverters, improving quality, reliability and efficiency. This single-phase series offers inverters with power from 3kW to 6kW. The team efficiently manages the energy produced to get the most out of the solar installation.
Datasheet SAJ Serie H2 Single-phase
General Features SAJ Serie H2 Single-Phase
- Easy setting of smart working modes
- AFCI (optional)
- DC 16A/ string matched with ultra high PV modules
- Battery supported fast charging/ discharging
- 150% DC oversizing
- With UPS function switch time <10ms
The new Pylontech PowerCube X1 HV battery forms a high voltage storage system based on lithium phosphate and iron battery modules. This battery is ideal for photovoltaic installations as it offers high power despite its compact size. PowerCube has a modular format so we can expand the capacity of our installation from 7.2kWh to 16.8kWh.
This battery is formed by modules of Pylontech H48050 and an intelligent system BMS that manages the cycles of load and discharge increasing the useful life.
*Includes battery-inverter connection cables kit and communications cable.
Features of Pylontech PowerCube X1 Series HV Battery
- The pylonteche modules included are fully responsible for the environment.
- LiFePO4 technology offers performance, safety and long battery life.
- The battery management system (BMS) offers protection functions, including over-discharge,
overload, overcurrent and high/low temperature.
- The system can automatically manage the charge and discharge status and balance the current and voltage in each cell.
- Flexible configuration to expand capacity and voltage.
- The auto-cooling mode adopted minimizes total system noise.
- The working temperature range is 0°C to 50°C, with excellent discharge performance and service life.
- Small size and light weight of each module allows for quick configuration and mounting.
This battery is formed by:
- Pylontech Battery Management System (BMS)
- Pyontech H48050 HV Battery Modules
Pylontech PowerCube X1 Data Sheet
Installation Manual Pylontech PowerCube X1: BMS + Módulos H48050
Inverters compatible with Pylontech PowerCube X1 Battery Series
The Pylontech PowerCube battery is compatible with the Ingeteam Ingecon Sun Storage 6Tl inverter, Solax Power X1/X3-Hybrid inverters, Goodwe Et series inverters and Growatt SPH 10.000TL3 inverters.
Consult in the following PDF the list of inverters compatible with Powercube X1 pylontech batteries.
ESolar SEC Single-phase monitoring kit, consisting of a Chint Single-phase DDSU666 wattmeter designed for power monitoring and energy measurement in power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly to be used in real-time measurements and visualization of electrical parameters such as voltage, current, active power, reactive power, frequency, power factor, and a SEC device for data collection.
DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.
ESolar SEC Single Phase Monitoring Kit
ESolar SEC Single-phase monitoring kit, consisting of a Chint Single-phase DDSU666 wattmeter designed for power monitoring and energy measurement in power systems. It belongs to a generation of intelligent and programmable instrumentation, integrated with measurement and communication functions, mainly to be used in real-time measurements and visualization of electrical parameters such as voltage, current, active power, reactive power, frequency, power factor, and a SEC device for data collection.
Datasheet eSolar SEC KIT
User Manual eSolar SEC KIT
Load Monitoring SEC Kit 24H
Main functions and characteristics DDSU666-H
- DIN35mm standard for rail mounting.
- Segment LCD display.
- Measurement parameters: voltage, current, active and reactive power, frequency, power factor...
- RS485 communication. DL/T645-2007 protocol is supported, customizable for MODBUS-RTU protocol.
- Top, peak, flat and valley rates are supported.
- Suggested installation along with SAJ inverters.
Main parameters DDSU666-H
| Technical parameters |
Index |
||||
|
Input signal |
Voltage |
Wiring mode |
Single phase |
||
|
Voltage specification |
AC 220V |
||||
|
Specified working voltage range |
0.9Un~1.1Un; the extensional work voltage range: 0.8Un~1.2Un |
||||
|
Consumption of the voltage circuit |
≤5VA/1W |
||||
|
Resistance |
>500kΩ |
||||
|
Current |
Rated value |
Input via CT/PT: AC1.5(6)A |
|||
|
Overload Current |
Input via CT/PT: instant:201max, time of application is 0.5s |
||||
|
Consumption of the current circuit |
≤2VA |
||||
|
Resistance |
<20mΩ |
||||
|
Frequency |
Input range |
(50/60±5%)Hz |
|||
|
Clock |
Clock battery capacity |
≥1200mAh |
|||
|
Clock accuracy class(daily error) |
<0.5s/d(23℃) |
||||
|
Output |
Display |
Segment LCD |
|||
|
Measurement parameters and grade |
Voltage Class 0.5; Current Class 0.5; Power factor Class 1; |
||||
|
Energy |
Multi-rate energy |
Support multi-rate measurement of passive, negative total active power |
|||
|
Max. demand record |
Support Max. demand record of passive, negative total active power, demand interval and slip time can be set |
||||
|
Pulse constant |
AC200V |
AC1.5(6)A |
6400imp/kWh |
||
|
AC220V |
AC5(60)A/AC5(80)A |
800imp/kWh |
|||
|
Pulse signal output |
Provide 1 set(active energy) optical signal and optocoupler isolated open collector electrical signal pulse output, pulse length:80ms±16ms |
||||
|
Communication |
RS485 communication |
Support or DL/T645-2007 communication protocol, customizable MODBUS-RTU communication protocol, the communication baud rate 1200bps, 2400bps,4800bps,9600bps can be set, assumed to be 2400bps |
|||
|
IR communication |
Support DL/T645-2007 communication protocol, customizable for MODBUS-RTU communication protocol, Infrared wave length:900nm~1000nm Communication baud rate: 1200bp Communication angle: ≥±15° Communication distance: ≥4m |
||||
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
Interior surface panel 12 Legrand elements
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Solar kit for self-consumption and isolated homes of the electric grid with lithium batteries, capable of producing up to 28,800Wh/day. It applies to residential homes, country houses, both for regular and weekend use.
The solar kit consists of 1x Investor SAJ H2 4000W Monsophase series, 10x solar panels 480W 120 cells, 1x Litio Battery Pylontech H48050 From 7.8kWh to 16.8kWh
Includes monitoring system Kit ESolar monitoring Monophase SEC.
