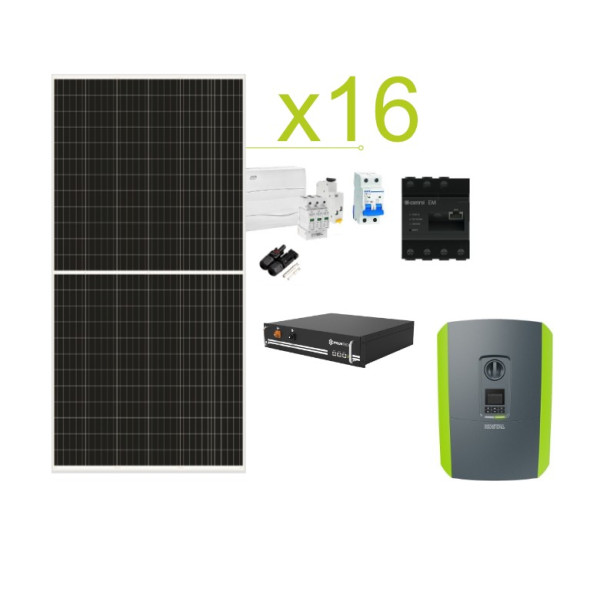

Three-Phase Self-Consumption Solar Kit Kostal PIKO 46,080Wh/day and Pylontech HV 7.2-16.8kWh Lithium Battery

Kostal PIKO 7.0 Plenticore Plus Three-Phase Hybrid Inverter, Intelligent energy management, the new KOSTAL PIKO 7.0 inverter has 3 PMP inputs, one of them valid for High Voltage batteries, the Kostal three-phase hybrid inverter is an energy solution for residential homes that want increase your self-consumption.

It is a photovoltaic hybrid inverter capable of generating up to 7000w in three-phase voltage, improves the operation of the installation and can work with the network. It will incorporate monitoring, historical record, instant consumption and graphics. Plenticore Plus are photovoltaic solar inverters that are committed to innovation, efficiency and effectiveness, improving photovoltaic systems.

* Technical support not included. Eligible separately here.

Hybrid Three-Phase Kostal Inverter PIKO 7.0 Plenticore PLUS

Kostal PIKO 7.0 Plenticore Plus Three-Phase Hybrid Inverter, Intelligent energy management, the new KOSTAL PIKO 7.0 inverter has 3 PMP inputs, one of them valid for High Voltage batteries, the Kostal three-phase hybrid inverter is an energy solution for residential homes that want increase your self-consumption.

It is a photovoltaic hybrid inverter capable of generating up to 7000w in three-phase voltage, improves the operation of the installation and can work with the network. It will incorporate monitoring, historical record, instant consumption and graphics. Plenticore Plus are photovoltaic solar inverters that are committed to innovation, efficiency and effectiveness, improving photovoltaic systems.

Download datasheet Hybrid Three-phase Inverter Kostal

Download operation user Hybrid Three-phase Inverter Kostal

Download quick guide BYD Battery-Box HV Hybrid Three-phase Inverter Kostal

Connection BYD BATTERY BOX Batteries with Kostal Plenticore Plus inverters

All in one - Kostal PLENTICORE plus 7.0

Hybrid PV inverter with battery input with optional activation code

Compatibility with various high voltage batteries

3 PMP trackers for dimensioning almost all roofs

Extended PMP range - perfect for "repowering"

Smart Connected - Kostal PLENTICORE plus 7.0

Smart Communication Board: ready for the future - new functions expandable via integrated web application

Display, data logging, system monitoring, network interfaces and regulation integrated as standard, WLAN Ready via external USB WLAN adapter

Free Solar Portal for the monitoring of the photovoltaic installation

EEBus and Sunspec for Smart Home integration

Smart Performance - Kostal PLENTICORE plus 7.0

Fast, self-learning shadow management - individually tailored to the installation site

Dynamic control of active power and measurement of household consumption 24 hours a day

Generation and consumption forecasting with self-learning: for optimal self-consumption

Low transformation losses thanks to DC coupling and high voltage battery

Prepared for additional battery charging from AC power sources

Fácil Instalación - Kostal PLENTICORE plus 7.0

Easy device configuration using the commissioning wizard

Easy installation through separate clear connection area and protected power electronics

Compatible with RCD type A

Automatic update and remote support

Kostal Plenticore plus Inverter Installation

The new Lithium battery Pylontech H48050 is ideal for use as a solar storage system in plants connected or isolated at 48V . It is a high voltage battery and designed for a long service life. A minimum of three connected modules and a BMS controller SC500-100S or SC1000-100S are required for this battery to work.

Capacity : 2.4 kWh

Dimensions: 442*390*100mm Weight: 24 kg

Check out the complete Pylontech Powercube-X1 battery here.

Contact us if you need information about compatibility with your inverter.

Pylontech features H48050 48V

The new generation of Pylontech brand lithium battery modules offer greater energy storage capacity in less space. Pylontech H48050 48V is ideal for replacing old heavy lead acid batteries. With this new high voltage battery we get a great efficiency in a small module.

*These functions require a minimum of three connected modules and a BMS controller. The module can be purchased individually to expand the previously installed rack, but it cannot be purchased as a stand-alone module to be installed individually.

 Technical datasheet HV Pylontech H48050

- Modular design. Connect as many pylontech batteries as you need to get the capacity you need.

- No maintenance.

- 3 times longer life than traditional lead-acid batteries. More than 6,000 charge/discharge cycles.

- Fast charge.

- Overvoltage protection.

- Short-circuit protection.

- Temperature setting.

- Load/discharge protection.

Manufacturer Warranty: 7 years (+3 extra years if you register the product in the manufacturer's web)

In order to obtain the 3 extra years of warranty given by the manufacturer, you will need to register the product in their web. You can find the form to fill HERE.

List of inverters compatible with Pylontech batteries.

Manufacturer Warranty: 7 years (+3 extra years if you register the product in the manufacturer's web)

In order to obtain the 3 extra years of warranty given by the manufacturer, you will need to register the product in their web. You can find the form to fill HERE.

List of inverters compatible with pylontech Powercube X1, H1/H2 and Force H1 pylontech batteries can be found in the following PDF.

List of Inverters compatible with Pylontech batteries

The US2000 Pylontech battery is compatible with the following models:

- Goodwe GW-BP / SBP and GW-ES/EM

- Voltronic Axpert

- Solax Power SK-SU and SK-TL

Technical characteristics

The SC0500A-100S X1-X2 BMS controller is a battery management system for use on Pylontech H48050 48V high voltage modules. It allows you to effectively connect and manage the charging and discharging of individual Pylontech battery modules. This model is used in the Powercube X1 high voltage battery pack.

This BMS can manage up to 7 H48050 or H48074 high voltage battery modules.

Voltage: 100-430 Vdc

Dimensions: 442*390*132 mm Weight: 8kg

The BMS controller SC0500-100S for Pylontech battery H48050 or H48074 constantly monitors the status of the individual modules and cells. Among other things, it protects them against overcharging, overvoltage and overtemperature. This prevents premature battery failure due to environmental influences or incorrect use. Without this controller the Pylontech H48050 battery modules would not be able to function. A minimum of three H48050 or H48074 batteries are required together with the controller in order to mount a Powercube X1 or Powercube X2 rack.

 Technical datasheet BMS SC500-100S Pylontech

Features BMS SC0500-100S for high voltage pylontech batteries

- Modular design. Connect as many pylontech batteries as you need to get the capacity you need.

- Maintenance free.

- 8 kW self-consumption power

- open circuit voltage up to 435Vdc

- Maximum load 100 A

- Over voltage protection.

- Short-circuit protection.

- Temperature setting.

- Charge/discharge protection.

Pylontech BMS SC500-100S Technical Specifications

Energy Meter EM300 LR Zero Injection

EM300 anti-seize clamp valid for Kostal PIKO MP Plus inverters and Kostal PIKO Plenticore inverters, ideal for optimizing the system. Wifi network communication valid for three-phase and single-phase inverters.

DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.

Features and specifications Energy Manager EM300

The Energy Manager EM300 is used to record the self-consumption of the home or the power that is injected into the network, and represent the corresponding values ​​in the solar portal.

In this case, the sensor can, in combination with the inverter, dynamically regulate self-consumption and optimally distribute the energy generated.

Download Data Sheet Energy Meter EM300

Characteristics of the EM300 Energy Meter

• 100% coordinated modern solution.
• Real-time data measurement
• Efficient tool.

  The equipment should only be used in photovoltaic installations connected to the network within the expected power range. The equipment is not suitable for portable use.

  Incorrect use can cause damage to equipment or other objects. The current sensor must be used exclusively for its intended use.



The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.

Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

Protector combi Alpha + overvoltages P+T 2P, 40A 15kA

Model: EPBOV2SC40

Interruptor magnetotérmico Alpha+ industrial. 4P, 25A, Curva C. 6kA

Model: EPB63M4C25

Industrial and tertiary Alpha+ differential.4P, 25A, 30mA.Class AC.6kA

Model: EPR4C025030

Inner surface box 24 elements Legrand

The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.

Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.

2 x 2m long power cables (positive and negative)

Electrical wiring sets Pylontech for the battery-inverter connection

Important: The communication cable between battery and inverter is purchased separately. You can buy it right here for investors Deye, Voltronic Axpert VMIII 5000-48, Voltronic Axpert King 5000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48 as well as for the inverters Ingecon SUN Storage 6 TL M of which Ingeteam.
