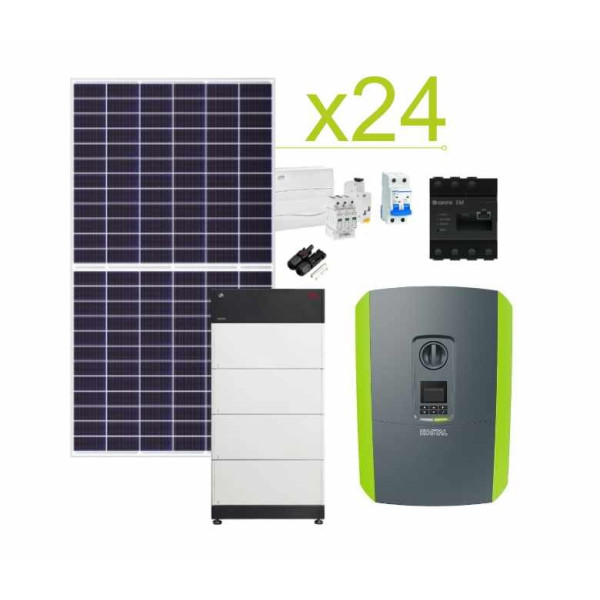

Triphasic Solar AutoConsumption Kit Kostal PIKO 69,120Wh/day and lithium battery 11,0kWh at 22,1kWh

The new generation of high voltage BYD Battery-Box Premium HVM has been designed in response to user demand to offer one of the best storage systems for self-consumption facilities and off-grid photovoltaic installations.

Available models: BYD Battery-Box HVM 8.3kWh, 11.0kWh, 13.8kWh, 16.6kWh, 19.3kWh y 22.1kWh

Dimensions: 945x585x298mm Weight: 129kg (BYD Battery-Box HVM 8.3) For more details, please refer to the data sheet.

The new BYD Battery-Box HVM is compatible with most single-phase hybrid inverters on the market such as Ingeteam, Fronius or Kostal inverters. Please consult our team if you have doubts about the compatibility of your solar inverter.

* Technical support not included. Eligible separately here.

BYD Box HVM 200-400V New HV Lithium Battery

BYD presents its new generation of lithium batteries for storing energy in photovoltaic installations. BYD is one of the leading manufacturers of batteries and electric mobility solutions. The new Battery-BOX will be available in 48V and high voltage models. The modular design allows for flexible expansion and use in off-grid, back-up mode and self-consumption connected to the grid.

Available models: BYD Battery-Box HVM 8.3kWh | BYD Battery-Box HVM 11.0kWh | BYD Battery-Box HVM 13.8kWh | BYD Battery-Box HVM 16.6kWh | BYD Battery-Box HVM 19.3kWh | BYD Battery-Box HVM 22.1kWh

Technical Data BYD B-BOX HVM Premium

BYD B-Box HVM Premium High Voltage Lithium Battery Features

BYD Battery Box HVM 200-400V - Modular design for easy and flexible installation. - Module capacity: from 8.3kWh to 22.1kWh - Up to 3 complete units can be connected in parallel to reach a capacity of 66.2kWh. - Compatibility with most single-phase and three-phase inverters on the market: Ingeteam, Fornius, Kostal... - Lithium battery (LFP). Increased safety, service life and performance. - It works in grid-connected installations and isolated photovoltaic installations. - Modules can be stacked for expansion without the need for extra wiring or connections. - Maximum flexibility. Ideal for systems that want to expand capacity in the future.

¿How the new BYD Premium HVM differs from the previous BYD HV?

Compatibility of the new generation of high voltage BYD B-BOX PREMIUM HVM batteries

Although the new generation of BYD promises to be highly compatible with most inverters on the market, we recommend contacting our technical team before purchasing or installing. The current BYD HV battery is compatible with Ingeteam, Fronius or Kostal single-phase and three-phase inverters, among others.

ETechnical Data for BYD Battery-Box Premium HVM from 8.3kWh to 22.1kWh

Buy BYD B-BOX Premium HVM HV Battery

In Suministros del Sol you can buy the new generation of BYD B-Box Premium lithium batteries in 48V and high voltage versions. We offer lithium batteries for self-consumption or isolated installations of all powers at an economic price and with the maximum quality and manufacturer's guarantee. For more information about these batteries, please contact us and we will help you without obligation in your photovoltaic project.

Kostal PIKO 10 Plenticore Plus Three-Phase Hybrid Inverter, Intelligent energy management, the new KOSTAL PIKO 10 inverter has 3 PMP inputs, one of them valid for High Voltage batteries, the Kostal three-phase hybrid inverter is an energy solution for residential homes that want increase your self-consumption.

It is a photovoltaic hybrid inverter capable of generating up to 10000w in three-phase voltage, improves the operation of the installation and can work with the network. It will incorporate monitoring, historical record, instant consumption and graphics. Plenticore Plus are photovoltaic solar inverters that are committed to innovation, efficiency and effectiveness, improving photovoltaic systems.

* Technical support not included. Eligible separately here.

Hybrid Three-Phase Kostal Inverter PIKO 10 Plenticore PLUS

Kostal PIKO 10 Plenticore Plus Three-Phase Hybrid Inverter, Intelligent energy management, the new KOSTAL PIKO 10 inverter has 3 PMP inputs, one of them valid for High Voltage batteries, the Kostal three-phase hybrid inverter is an energy solution for residential homes that want increase your self-consumption.

It is a photovoltaic hybrid inverter capable of generating up to 10000w in three-phase voltage, improves the operation of the installation and can work with the network. It will incorporate monitoring, historical record, instant consumption and graphics. Plenticore Plus are photovoltaic solar inverters that are committed to innovation, efficiency and effectiveness, improving photovoltaic systems.

Download datasheet Hybrid Three-phase Inverter Kostal

Download operation user Hybrid Three-phase Inverter Kostal

Download quick guide BYD Battery-Box HV Hybrid Three-phase Inverter Kostal

Connection BYD BATTERY BOX Batteries with Kostal Plenticore Plus inverters

All in one - Kostal PLENTICORE plus 10

Hybrid PV inverter with battery input with optional activation code

Compatibility with various high voltage batteries

3 PMP trackers for dimensioning almost all roofs

Extended PMP range - perfect for "repowering"

Smart Connected - Kostal PLENTICORE plus 10

Smart Communication Board: ready for the future - new functions expandable via integrated web application

Display, data logging, system monitoring, network interfaces and regulation integrated as standard, WLAN Ready via external USB WLAN adapter

Free Solar Portal for the monitoring of the photovoltaic installation

EEBus and Sunspec for Smart Home integration

Smart Performance - Kostal PLENTICORE plus 10

Fast, self-learning shadow management - individually tailored to the installation site

Dynamic control of active power and measurement of household consumption 24 hours a day

Generation and consumption forecasting with self-learning: for optimal self-consumption

Low transformation losses thanks to DC coupling and high voltage battery

Prepared for additional battery charging from AC power sources

Fácil Instalación - Kostal PLENTICORE plus 10

Easy device configuration using the commissioning wizard

Easy installation through separate clear connection area and protected power electronics

Compatible with RCD type A

Automatic update and remote support

Kostal Plenticore plus Inverter Installation

Energy Meter EM300 LR Zero Injection

EM300 anti-seize clamp valid for Kostal PIKO MP Plus inverters and Kostal PIKO Plenticore inverters, ideal for optimizing the system. Wifi network communication valid for three-phase and single-phase inverters.

DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.

Features and specifications Energy Manager EM300

The Energy Manager EM300 is used to record the self-consumption of the home or the power that is injected into the network, and represent the corresponding values ​​in the solar portal.

In this case, the sensor can, in combination with the inverter, dynamically regulate self-consumption and optimally distribute the energy generated.

Download Data Sheet Energy Meter EM300

Characteristics of the EM300 Energy Meter

• 100% coordinated modern solution.
• Real-time data measurement
• Efficient tool.

  The equipment should only be used in photovoltaic installations connected to the network within the expected power range. The equipment is not suitable for portable use.

  Incorrect use can cause damage to equipment or other objects. The current sensor must be used exclusively for its intended use.



The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.

Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

Industrial and tertiary Alpha+ differential.4P, 25A, 30mA.Class AC.6kA

Model: EPR4C025030

Interruptor magnetotérmico Alpha+ industrial. 4P, 25A, Curva C. 6kA

Model: EPB63M4C25

Protector combi Alpha + overvoltages P+T 2P, 40A 15kA

Model: EPBOV2SC40

Inner surface box 24 elements Legrand
