Goodwe Hybrid Inverter GW3048-EM of 3000w 48V, of the GoodWe EM series, can work in systems of connection to on grid and off grid systems. The Goodwe solar inverter is compatible with lead acid batteries and 48V lithium batteries. compatible with LG Chem RESU 48V lithium batteries. Ideal to boost self-consumption in residential homes. It charges the surplus energy of the photovoltaic field in the batteries for its later consumption. Zero injection to the electricity grid with the EzMeter. Monitoring with mobile App, internet connection.

Goodwe Energy Meter included.

* Technical support not included. Eligible separately here.

Hybrid Inverter GoodWe GW3048-EM

Hybrid inverter of the manufacturer Goodwe of 3kW 48V bidirectional, designed for installations of last generation, the investor manages the energy coming from the solar panels and uses it for the consumptions of the house storing the surplus in the batteries. The Goodwe GW3048-EM works in parallel with the electrical network, battery or FV, with monophasic output and compatible with lithium and lead acid batteries in 48V.

Characteristics Goodwe inverter GW3048-EM

The solar inverter GoodWe works with systems of connection to grid and off grid systems, during the day the solar panels generate electricity that can serve to feed the charges, export to the grid or charge the battery according to its configuration.

The stored energy can be used to feed the consumptions during the night. The GoodWe GW3048-EM inverter can function as a charger inverter, charging the batteries with the power grid. In the image on the right, the simple operation diagram of the GoodWe GW3048-EM similar to that of the SBP series is shown.

See Data Sheet GoodWe EM

The solar inverter GoodWe works with systems of connection to grid or off grid systems, during the day the solar panels generate electricity that can serve to feed the charges, export to the network or charge the battery according to its configuration.

The stored energy can be used to feed the consumptions during the night. The GoodWe GW3048-EM inverter can function as a charger inverter, charging the batteries with the power grid. In the image on the right, the simple operation diagram of the GoodWe GW3048-EM similar to that of the SBP series is shown.

GooWe GW3048-EM inverter installation

The GoodWeight photovoltaic hybrid inverter is easy to install, only basic electricity knowledge is needed, for its installation we recommend following the manufacturer's instructions, from Suministros del Sol we advise you on the installation of the inverter, we provide you with schemas and telephone advice. We also provide our technical team of installers, so that the solar installation works properly with full guarantee and is satisfied with the service provided.

Batteries compatible with the GoodWe GW3048-EM solar inverter

The GoodWE GW3048-EM 3000W and 48V is compatible with most solar batteries with 48V voltage, including lead acid batteries and lithium batteries. Among the batteries highlighted for installation from Suministros del Sol we recommend installing Lithium Ion batteries (Li-Oi), such as the LG Chem RESU battery, Pylontech batteries, BYD batteries for their excellent performance in efficiency and effectiveness levels.

Hybrid inverter monitoring Goodwe GW3048-EM

The GoodWe inverter incorporates a monitoring system, the manufacturer offers the following communication options to the monitoring portal;

EzLogger Pro, is a monitoring device developed by GoodWe that reads and records the key data of the system and transmits them through the internet to the GoodWe portal.

Ezlogger, connects to the inverter via RS485, connects to the PC via Ethernet and transmits the data to the GoodWe EzExplorer monitoring software and to the GoodWe portal.

Ezlogger WI-FI, connects to the inverter via RS485, connects to the wireless router through an integrated Wi-Fi communication module and transmits the data to the GoodWe portal.

GoodWe GW3048-EM inverters warranty

GoodWe EM inverters guarantee is for 5 years, starting from start-up. Accessories, including WIFI and EzMeter with a 2-year warranty. From the date of manufacture of GOODWE. "EzMeter and WIFI integrated"

GoodWe Energy proposes a system to extend the warranty, consult with us about the system for extending the guarantee.

Buy inverter GoodWe GW3048-EM

Buy the GoodWe photovoltaic inverter is easy, simple and at a cheap price in Suministros del Sol, our technical and commercial team will advise you on the range of goodwe solar inverters, both of the EM series and of the others of the GoodWe manufacturer. Contact us about prices of solar inverters, we will propose the best solution for the improvement of the operation of your solar installation.

The high voltage battery LG RESU FLEX consists of two components that allow storage capacity to be flexibly scaled (BMA+BPU).

Available in three different sizes; two to four battery modules with a usable storage capacity of 8,6kWh, 12,9kWh y 17,2 kWh.

The battery is modularly expandable and suitable for both wall and floor installation.

Size: 665,2x665,2x148,4 mm

weight of the Battery module (BMA): other

Weight of the Battery control unit (BPU): 16,5 kg

* Technical support not included. Eligible separately right here.

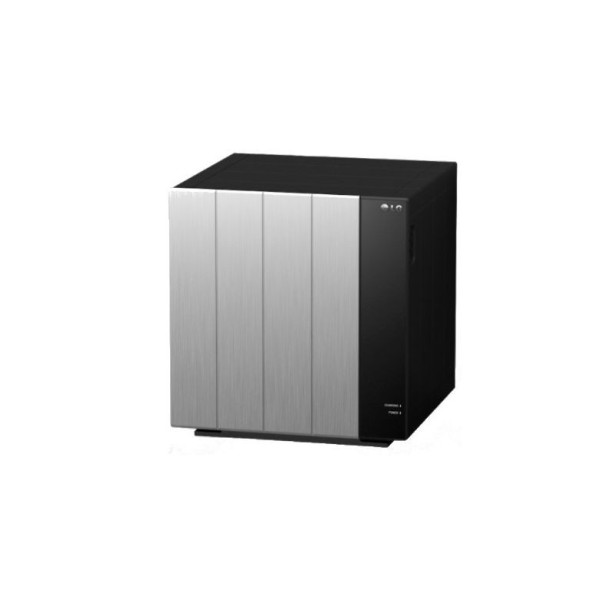

LG RESU FLEX 8.6kWh to 17.9kWh

The high voltage battery LG RES FLEX consists of two components allowing for flexible scaling of storage capacity (BMA battery module + BPU battery protection unit).

Available in three different sizes; two to four battery modules with a usable storage capacity of 8,6kWh, 12,9kWh y 17,2 kWh.

The battery is modularly expandable and suitable for both wall and floor installation. For installation on the ground, the battery modules are connected in series to the control unit. On the other hand, in the case of wall installation, the individual units can be installed horizontally side by side on the wall.

  Technical Datasheet Lithium Batteries LG RESU FLEX 8.6kWh-17.9kWh

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.

Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

Interior surface panel 12 Legrand elements

GoodWe’s Smart Meter is designed with high precision small dimensions, convenient operation and installation. It is available for both single-phase and three-phase grid system connection to detect voltage, current, power and energy, for working with inverters including SEMS systems for the purpose energy management

DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.

* Technical support not included. Eligible separately here.

GoodWe Smart Meter

The GoodWe wattmeter or current regulator has been thought to offer high precision measurements; its design is compact, easy to use and install. It is available for single-phase and three-phase systems and has the ability to detect voltage, current levels and power supply. It can operate in conjunction with inverters connected to the SEMS system for smarter power management.

Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA

Model: EPR2C040030
