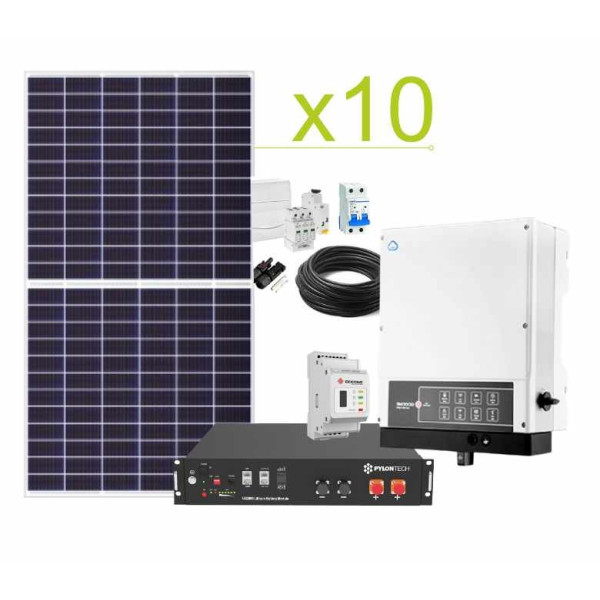

Kit Solar Autoconsumption Goodwe 28,800Wh/day and lithium battery Pylontech from 4.8kWh to 14.4kWh
Autoconsumption solar kit with batteries capable of producing up to 28,800Wh/day, the solar kit consists of 1x Inverter GoodWe GW5048-EM complemented by intelligent current regulator and monitoring system, 10x solar panels 480W 120 Cells, 2x of a kind used in motor vehicles Pylontech 2.4kWh 48V (option to modular battery expansion) . It is applied on residential homes, country houses, both for regular use and weekends.
The self-consumption kit manages smartly and efficiently energy sources, combine solar and network energy, with zero injection.
Leapton solar 480W LP182-18-M-60-NH N Type TOPCon - 25 years warranty
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
- This product is not available for order.
Hybrid Inverter Goodwe GW5048-EM
Goodwe Hybrid Inverter GW5048-EM of 5000w 48V, of the GoodWe EM series, can work in systems of connection to on grid and off grid systems. The Goodwe solar inverter is compatible with lead acid batteries and 48V lithium batteries. compatible with LG Chem RESU 48V lithium batteries. Ideal to boost self-consumption in residential homes. It charges the surplus energy of the photovoltaic field in the batteries for its later consumption. Zero injection to the electricity grid with the EzMeter. Monitoring with mobile App, internet connection.
Goodwe Energy Meter included.
* Technical support not included. Eligible separately here.
- This product is not available for order.
Lithium Battery 2.4kWh Pylontech US2000C - New Version 48V
Pylontech's lithium battery US2000C is the latest technology frontier for photovoltaic storage applications.
The simplicity and modularity of the US2000C with 2.4kWh capacity makes it suitable for small and large accumulation systems and expandable according to current and future energy needs.
IMPORTANT: If you purchase a Pylontech module to expand your battery rack you will not need a cable kit. If it is the first module you buy you will need the Pylontech cable kit to connect your new battery to the solar inverter.
NOW AVAILABLE!
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
Goodwe Smart Meter for Hybrid Inverters
GoodWe’s Smart Meter is designed with high precision small dimensions, convenient operation and installation. It is available for both single-phase and three-phase grid system connection to detect voltage, current, power and energy, for working with inverters including SEMS systems for the purpose energy management
DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.
* Technical support not included. Eligible separately here.
40A Differential Kayal
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
Electrical wiring sets Pylontech for the battery-inverter connection
The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.
2 x 2m long power cables (positive and negative)
One of product is no longer available. This pack cant be purchased
Pack content
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
Leapton solar panel 480W LP182-18-M-60-NH N Type topon
480W monocrystalline Leapton solar module with N-Type TOPCon technology that ensures maximum efficiency even in low light conditions.
The 480W Leapton solar panel has a 25-year warranty and is within the Tier1 list of best-selling brands.
See also Leapton solar 480W LP182-18-M-60-NH
This Regulation shall be binding in its entirety and directly applicable in all Member States
The Commission therefore concludes that the contested scheme is compatible with the internal market
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
The number of cells shall be reported
It incorporates the latest technology in photovoltaic cell development with the N-Type TOPCon that increases output per cell from 10 to 20W.
It shall be capable of operating at a power output not exceeding 30 W
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
Goodwe Hybrid Inverter GW5048-EM of 5000w 48V, of the GoodWe EM series, can work in systems of connection to on grid and off grid systems. The Goodwe solar inverter is compatible with lead acid batteries and 48V lithium batteries. compatible with LG Chem RESU 48V lithium batteries. Ideal to boost self-consumption in residential homes. It charges the surplus energy of the photovoltaic field in the batteries for its later consumption. Zero injection to the electricity grid with the EzMeter. Monitoring with mobile App, internet connection.
Goodwe Energy Meter included.
* Technical support not included. Eligible separately here.
Hybrid Inverter GoodWe GW5048-EM
Hybrid inverter of the manufacturer Goodwe of 5.0kW 48V bidirectional, designed for installations of last generation, the investor manages the energy coming from the solar panels and uses it for the consumptions of the house storing the surplus in the batteries. The Goodwe GW5048-EM works in parallel with the electrical grid, battery or FV, with monophasic output and compatible with lithium and lead acid batteries in 48V.
Characteristics Goodwe inverter GW5048-EM
The solar inverter GoodWe works with systems of connection to grid and off grid systems, during the day the solar panels generate electricity that can serve to feed the charges, export to the grid or charge the battery according to its configuration.
The stored energy can be used to feed the consumptions during the night. The GoodWe GW5048-EM inverter can function as a charger inverter, charging the batteries with the power grid. In the image on the right, the simple operation diagram of the GoodWe GW5048-EM similar to that of the SBP series is shown.
The solar inverter GoodWe works with systems of connection to grid or off grid systems, during the day the solar panels generate electricity that can serve to feed the charges, export to the network or charge the battery according to its configuration.
The stored energy can be used to feed the consumptions during the night. The GoodWe GW5048-EM inverter can function as a charger inverter, charging the batteries with the power grid. In the image on the right, the simple operation diagram of the GoodWe GW5048-EM similar to that of the SBP series is shown.
GooWe GW5048-EM inverter installation
The GoodWeight photovoltaic hybrid inverter is easy to install, only basic electricity knowledge is needed, for its installation we recommend following the manufacturer's instructions, from Suministros del Sol we advise you on the installation of the inverter, we provide you with schemas and telephone advice. We also provide our technical team of installers, so that the solar installation works properly with full guarantee and is satisfied with the service provided.
Batteries compatible with the GoodWe GW5048-EM solar inverter
The GoodWE GW5048-EM 5000W and 48V is compatible with most solar batteries with 48V voltage, including lead acid batteries and lithium batteries. Among the batteries highlighted for installation from Suministros del Sol we recommend installing Lithium Ion batteries (Li-Oi), such as the LG Chem RESU battery, Pylontech batteries, BYD batteries for their excellent performance in efficiency and effectiveness levels.
Hybrid inverter monitoring Goodwe GW3048-EM
The GoodWe inverter incorporates a monitoring system, the manufacturer offers the following communication options to the monitoring portal;
EzLogger Pro, is a monitoring device developed by GoodWe that reads and records the key data of the system and transmits them through the internet to the GoodWe portal.
Ezlogger, connects to the inverter via RS485, connects to the PC via Ethernet and transmits the data to the GoodWe EzExplorer monitoring software and to the GoodWe portal.
Ezlogger WI-FI, connects to the inverter via RS485, connects to the wireless router through an integrated Wi-Fi communication module and transmits the data to the GoodWe portal.
GoodWe GW3048-EM inverters warranty
GoodWe EM inverters guarantee is for 5 years, starting from start-up. Accessories, including WIFI and EzMeter with a 2-year warranty. From the date of manufacture of GOODWE. "EzMeter and WIFI integrated"
Buy inverter GoodWe GW5048-EM
Buy the GoodWe photovoltaic inverter is easy, simple and at a cheap price in Suministros del Sol, our technical and commercial team will advise you on the range of goodwe solar inverters, both of the EM series and of the others of the GoodWe manufacturer. Contact us about prices of solar inverters, we will propose the best solution for the improvement of the operation of your solar installation.
Pylontech's lithium battery US2000C is the latest technology frontier for photovoltaic storage applications.
The simplicity and modularity of the US2000C with 2.4kWh capacity makes it suitable for small and large accumulation systems and expandable according to current and future energy needs.
IMPORTANT: If you purchase a Pylontech module to expand your battery rack you will not need a cable kit. If it is the first module you buy you will need the Pylontech cable kit to connect your new battery to the solar inverter.
NOW AVAILABLE!
Features Pylontech US2000C 48V lithium battery
Technical datasheet Pylontech US2000C 48V - lithium battery 2.4kWh
Installation manual for lithium battery Pylontech US2000C 48V
The Pylontech US2000C 2.4kWh lithium-ion battery is made up of lithium-ion modules that allow us to have a modular photovoltaic storage system to expand its capacity with up to 16 units without the need for any additional equipment. Among its main features is also the compatibility with many of the inverters on the market. Its price-performance ratio is another factor to take into account.
The 48V Pylontech US2000C offers an easy-to-use format and quick parallel connection. It contains an internal BMS that is responsible for distributing power between the cells efficiently and safely, preventing overcharging or excessive discharging.
The manufacturer Pylontech offers a 7 year warranty on the product as long as the instructions for use are followed. We recommend contacting our technicians and following the instructions to keep the battery in perfect condition and to comply with the requirements of the brand.
Pylontech US2000C 48V batteries are compatible with Voltronic Axpert or Victron Energy off-grid inverters, as well as low-cost inverters such as Goodwe. Contact our technical team for Pylontech's compatibility with your inverter installation.
Manufacturer's warranty: 7 years (+3 additional years with registration on manufacturer's website)
To access the additional 3 years warranty offered by the manufacturer it is necessary to register the product on their website. You can find the form to fill in HERE.
Capacidad de las batería Pylontech US2000C 48V
The capacity of each module of the Pylontech US2000C 48V lithium battery is 2.4kWh. The discharge cycles of lithium batteries are much deeper than lead batteries, so the performance and features make it ideal for self-consumption installations. Thanks to its modular format, up to 16 units can be installed, reaching up to 38.4kWh.
Advantages of the LiFePo4 technology Pylontech US2000C
- Life cycle over 6,000 cycles, equivalent to approximately 11 years of work, with a final capacity of 80%;
- The molecular structure of LFP batteries is more stable and therefore safer, allowing a 600°C increase in combustion temperature compared to 300°C for NMC and LCO;
- They are easy to expand to obtain a large storage size;
- Increased depth of discharge (90% DOD);
- Compact and modular design allowing easy installation/upgrade;
- Ability to operate in different temperature conditions;
- Advanced BMS that allows you to report alarms in real time; Advanced BMS that allows you to report alarms in real time
Connection of Pylontech US2000C 2.4kWh 48V battery modules
List of Inverters compatible with Pylontech US2000C 48V batteries
See the following PDF for a list of inverters compatible with pylontech US2000C, US3000C and pylontech Powercube X1, H1/H2 and Force H1 batteries.
List of Inverters compatible with Pylontech batteries
The Pylontech US2000 battery is compatible with models:
- Goodwe GW-BP / SBP and GW-ES/EM.
- Voltronic Axpert (OFF-GRID Installations)
Technical specifications Pylontech US2000C - US3000C
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
Interior surface panel 12 Legrand elements
GoodWe’s Smart Meter is designed with high precision small dimensions, convenient operation and installation. It is available for both single-phase and three-phase grid system connection to detect voltage, current, power and energy, for working with inverters including SEMS systems for the purpose energy management
DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.
* Technical support not included. Eligible separately here.
GoodWe Smart Meter
The GoodWe wattmeter or current regulator has been thought to offer high precision measurements; its design is compact, easy to use and install. It is available for single-phase and three-phase systems and has the ability to detect voltage, current levels and power supply. It can operate in conjunction with inverters connected to the SEMS system for smarter power management.
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.
2 x 2m long power cables (positive and negative)
Electrical wiring sets Pylontech for the battery-inverter connection
Important: The communication cable between battery and inverter is purchased separately. You can buy it right here for investors Deye, Voltronic Axpert VMIII 5000-48, Voltronic Axpert King 5000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48 as well as for the inverters Ingecon SUN Storage 6 TL M of which Ingeteam.
Autoconsumption solar kit with batteries capable of producing up to 28,800Wh/day, the solar kit consists of 1x Inverter GoodWe GW5048-EM complemented by intelligent current regulator and monitoring system, 10x solar panels 480W 120 Cells, 2x of a kind used in motor vehicles Pylontech 2.4kWh 48V (option to modular battery expansion) . It is applied on residential homes, country houses, both for regular use and weekends.
The self-consumption kit manages smartly and efficiently energy sources, combine solar and network energy, with zero injection.
