Three-phase inverter MAX 100K TL3-X LV | Growatt

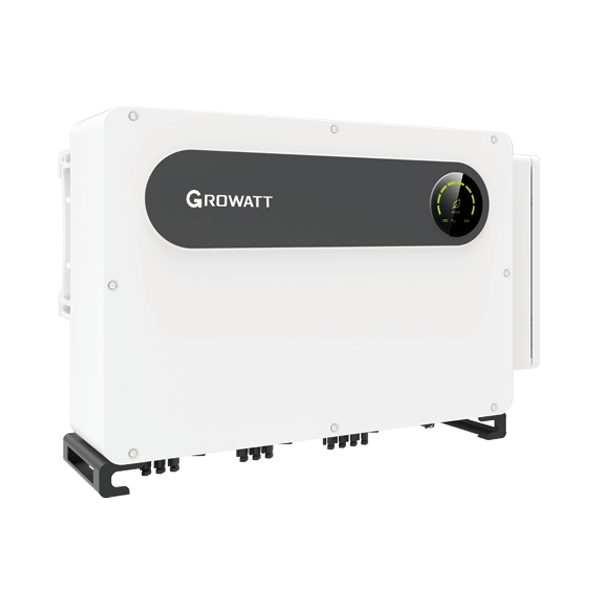

Three-phase inverter MAX 100K TL3-X LV

This commercial and industrial PV inverter from Growatt offers high performance in a fuse-free, multi-point MPPT design with two strings per MPP tracker. Compatible with high power modules and maximum safety and reliability.

Dimensions (mm): 970/640/345

Weight (kg): 84

See all the details of this article in the attached files:

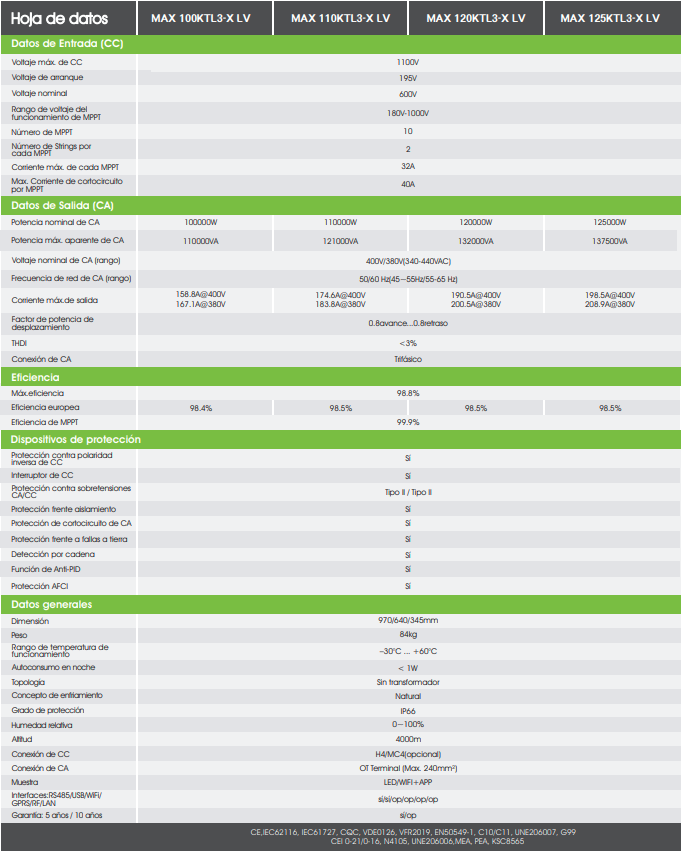

 MAX 100-125KTL3-X LV Datasheet

More about MAX 100-125KTL3-X LV:

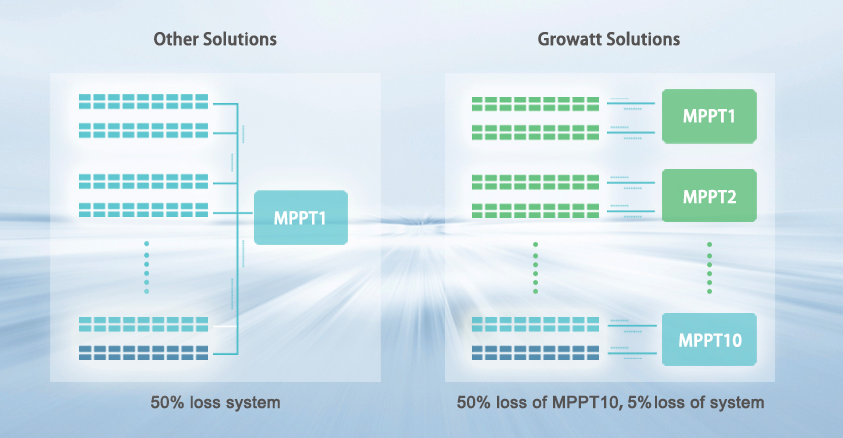

• 10MPPTS fuse-free design.
• Compatible with high power modules.
• Intelligent I/V scanning and diagnostics.
• Compatible with AI and Cu (AC) cables.
• 2-in-1 DC connection.
• Communication with optional programmable logic controller (PLC).
• Intelligent monitoring by Strings.
• Type II SPD (Surge Protection Device) on DC and AC sides.
• IP 66 degree of protection.
• Optional: AFCI protection (arc fault circuit interrupter).
