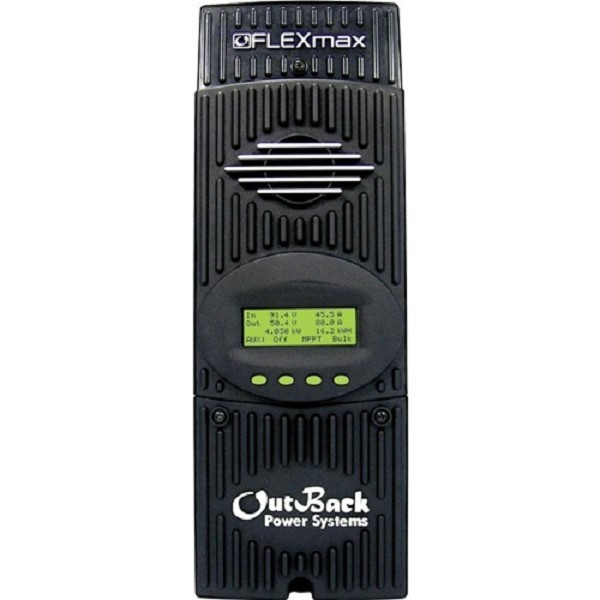

Charge Controller Outback Flexmax FM80

OUTBACK FM80

MPPT charge controller 80A 12V/24V/36V/48V/60V

Product Highlights

  • Maximum Power Point Tracking (MPPT)
  • Active cooling and intelligent thermal management cooling
  • Ambient temperatures as high as 104°F (40°C)
  • Built-in, backlit 80 character display
  • Integrated OutBack network communications

* Technical support not included. Eligible separately here.

€665.00
Tax included



Secure payment



Shipping policy



Return policy

Charge Controller MPPT Outback Flexmax FM60

Description

The FLEXmax family of charge controllers is the latest innovation in Maximum Power Point Tracking (MPPT) charge controllers from OutBack Power. The innovative FLEXmax MPPT software algorithm is both continuous and active, increasing your photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both FLEXmax charge controllers can operate at their full maximum current rating, 60 Amps or 80 Amps respectively, in ambient temperatures as high as 104°F (40°C).

Included in all of the FLEXmax Charge Controllers are the revolutionary features first developed by OutBack Power, including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built-in, backlit 80 character display shows the current status and logged system performance data for the last 128 days at the touch of a button. The integrated OutBack network communications allows FLEXmax series Charge Controllers to be remotely programmed and monitored via a MATE system display and provides unrivaled complete system integration.

FLEXmax MPPT Charge Controllers are the only choice when you demand a high performance, efficient and versatile charge controller for your advanced power system.

Download Technical Sheet Charge Controler FM80
