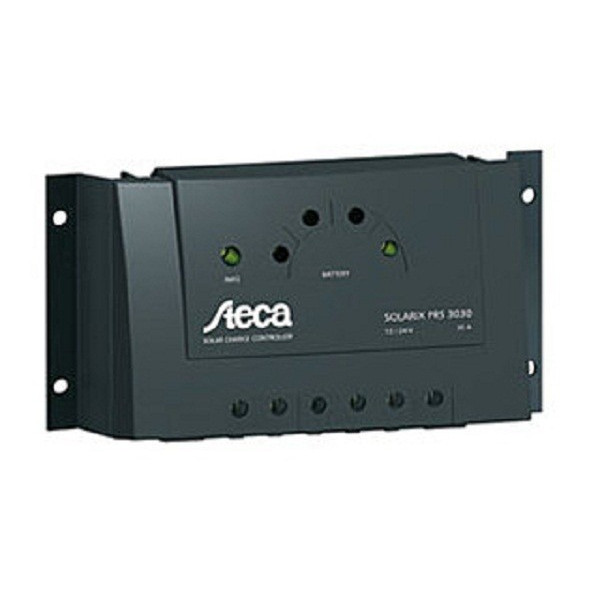

Steca PRS2020 20A 12/24V Charge Controller

The Steca Solarix PRS solar charge controller impresses both for its simplicity and power and at the same time offers a modern design and a user-friendly display at an irresistible price.

Several LEDs of different colors simulate a bar indicator that provides information on the state of charge of the battery.

Here the modern Steca algorithms come into action, which ensure optimum battery care.

The Solarix PRS charge controllers are equipped with an electronic fuse that guarantees unbeatable protection.

They work in series and separate the solar module from the battery to protect the solar module against overload.

In addition, they can be equipped with special functions for larger projects.

Examples are the night light function and selectable voltages, both at the end of the load and at the total discharge.

Product Features:

- Series regulator
- Automatic voltage selection
- Voltage and current regulation
- MAP regulation
- Staggered loading technology
- Disconnection of load depending on current
- Automatic consumer reconnection
- Temperature Compensation
- Grounding at one or more positive terminals or only at one of the negative terminals
- Self-control function
- Monthly maintenance charge

Electronic protection functions:

- Overload protection
- Protection against total discharge
- Protection against reverse polarity of the modules, the load and the battery
- Automatic electronic fuse
- Short-circuit protection of the load and solar modules
- Overvoltage protection at the module input
- Open circuit protection without battery
- Reverse current protection at night
- Protection against overtemperature and overload
- Overvoltage on battery

Indications

- Multifunction LED display
- Multi-colored LED
- 5 LEDs indicate operating states
- for operation, charging status, fault messages

Options

- Night light function factory or configurable by the Steca PA RC 100
- Parameterization of the functional values with the Steca PA RC 100

Certifications

- According to European standards (CE)
- RoHS Compliant
- Made in Germany
- Developed in Germany
- Manufactured according to ISO 9001 and ISO 14001
