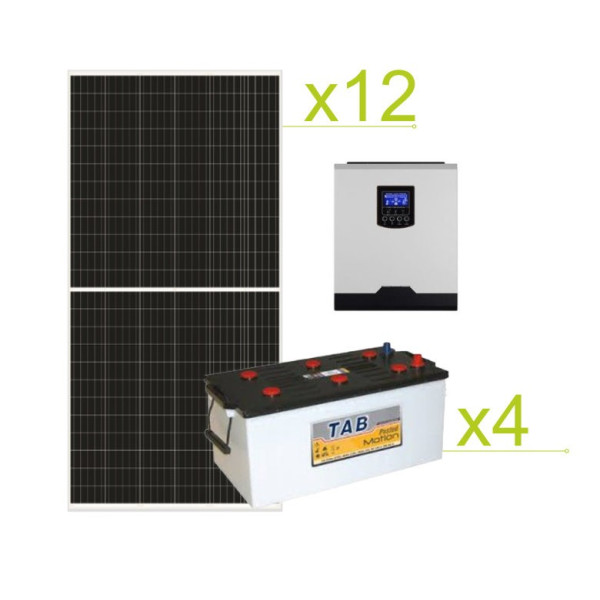

Isolated solar kit 36360Wh with 4 TAB batteries 250Ah
Solar home insulated kit 36360Wh for small consumption 12x solar panel 505W, 4x solar battery deep cycle TAB Monoblock of 12v 250Ah and a a voltage of not more than 300 V. What. Its applications are varied, from solar installations for lighting, small appliances, telecommunications systems, alarms, cottages, motorhomes and camper lights. insulated solar kit best price on the market, advice and good service.
YH SUNPRO 505W SP505-132M10 HI-EFF TWIN MONO
The leading manufacturer of solar panels YH SUNPRO is among the Tier1 Bloomberg brands.
Size: 2094 x 1134 x 35 mm
Weight: manufacture from materials of any heading
12 years product warranty and 25 years of linear production guarantee above 84%.
Other
- This product is not available for order.
Inverter Voltronic Axpert MKS 5K 5000W MPPT 48V 80A
Axpert inverter MKS 5K 5000W MPPT 48V 80A
Multifunctional all in one inverter of 5000W and 48V that combines inverter functions, 80A MPPT solar controller and 80A battery charger to provide uninterruptible power supply in portable size. Possibility of connecting 9 equipment in parallel. Load in 4 stages with equalization and power factor 1 (FP1) to achieve 5000W real.
- This product is not available at this time.
- By default
- Extension to 5 years
- No
- Yes
Solar Battery TAB Monoblock 12V 250Ah (C100)
It offers excellent benefits for the solar equipment since thanks to its reinforced plates allows a longer duration and a better operation. It just needs a very sporadic seasonal maintenance to maintain the battery life. It offers excellent value for money.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Permanent and transient overvoltages 2p 40A
Protector combi Alpha + overvoltages P+T 2P, 40A 15kA
Model: EPBOV2SC40
40A Differential Kayal
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
One of product is no longer available. This pack cant be purchased
Pack description
In the case of vehicles of categories N1 and N2
Solar home insulated kit 24960Wh for small consumption, the solar kit is combined with 12x solar panel 505W, 4x solar battery deep cycle TAB Monoblock of 12v 250Ah and a a voltage of not more than 300 V. What. Its applications are varied, from solar installations for lighting, small appliances, telecommunications systems, alarms, cottages, motorhomes and camper lights. insulated solar kit best price on the market, advice and good service.
Components of solar kit Insulated 36360Wh
12x 505W solar panel, the high efficiency Trina solar panel is a 505W monocrystalline module with Half Cell PERC technology. Trina is one of the leading manufacturers on the photovoltaic market complying with the TIER1 classification standard for all its modules.
Ideal for both isolated and demanding grid-connected solar PV installations requiring maximum power per square metre. These panels stand out for their incredible value for money.
4x deep cycle solar battery TAB 250Ah 12v, one of the machinery for making pulp of fibrous cellulosic material it is also used in the manufacture of solar cells cheap solar insulated kit with guarantees of reliability and durability. What. This solar battery is classified within the 12v batteries with maintenance, meaning it needs to add distilled water in its cavities to get its good operation and maintenance over time. The the warranty on this monoblock battery is 1 year. What. The 12v 250Ah TAB monoblock battery in C100 is a battery easy to install and can be easily expanded by connecting them in series and in parallel according to the needs of the solar installation. The batteries are connected in series to achieve the 24v voltage required by the Axpert 3000w solar inverter.
1x inverter charger regulator Axpert VP 24v 3000w with for use in the manufacture of products falling within heading 8528 [1], ideal for insulated installations and small consumption. It is one of the best value investors, in the case of small isolated installations, a pure, small and compact sine wave is ideal. It can be installed in small and medium photovoltaic kits.
Pack content
The leading manufacturer of solar panels YH SUNPRO is among the Tier1 Bloomberg brands.
Size: 2094 x 1134 x 35 mm
Weight: manufacture from materials of any heading
12 years product warranty and 25 years of linear production guarantee above 84%.
Other
YH SUNPRO 505W SP505-132M10 HI-EFF TWIN MONO Panel
505W monocrystalline Sunpro module the latest technology in photovoltaic cells that guarantees maximum efficiency even in low light conditions.
The Sunpro 505W SP505-132M10 solar panel has a 12-year warranty and is within the Tier1 list of best-selling brands.
See Technical Data Sheet YH SUNPRO 505W SP505-132M10
CE Certificate YH SUNPRO 505W SP505-132M10
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
Manufacture from materials of any heading
It incorporates the latest in developing photovoltaic cell technology that increases output per cell from 10 to 20W.
Photovoltaic cell
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
Axpert inverter MKS 5K 5000W MPPT 48V 80A
Multifunctional all in one inverter of 5000W and 48V that combines inverter functions, 80A MPPT solar controller and 80A battery charger to provide uninterruptible power supply in portable size. Possibility of connecting 9 equipment in parallel. Load in 4 stages with equalization and power factor 1 (FP1) to achieve 5000W real.
All in one inverter Axpert MKS 5K 5000W MPPT 48V 80A
Inverter-charger-regulator 48V and 5000W nominal power, with 80A battery charger, 60A MPPT charge regulator for solar modules. Model Axpert MKS5000-48 that allows the equalization of batteries.
3-in-1 equipment that combines 230V inverter, battery charger when an auxiliary alternating current input is connected (network, generator set or similar) and a solar charge maximizing regulator from solar panels.
Axpert inverter of maximum performance, designed for small autonomous solar installations.
It incorporates MPPT charge regulator maximizer for MPPT modules and battery charger with high charging current.
48Vdc working voltage.
Properties of the multifunction all in one inverter axpert MKS 5000W MPPT 80A 48V
A renewed design with connectors for batteries and solar panels easier to connect are the main external changes compared to previous models. Internally it comes with additional functions that improve the charge of the batteries in front of the first multifunctional all in one inverters.
Up to 9 units in parallel
The multifunctional axpert inverter MKS 5000W 48V can be connected in parallel with up to 9 units, reaching 45KW of single or three-phase power.
Equalization charge
Possibility of performing equalization in manual and automatic programming intervals from 1 to 90 days from the menu. It allows an equalization voltage of 64V, essential in lead acid batteries.
Equalization time
From the menu we can select the equalization time from 30 to 900 min.
Protection voltage
The equipment's firing time increased to 66 volts and can be used with more types of batteries and new technologies that appear.
FP1 (Power factor 1)
The new all in one inverter axpert 5000W PF1 increases the power by 25% compared to the previous model, thus providing an output of 5000w real.
Pure sinewave axpert all in one inverter
The new all in one 48V 5000W MPPT 80A is a powerful pure sine wave inverter suitable for connecting any appliance, motor, ... up to 5000W. It allows to work at 110% several minutes and double its power for 5 seconds for inductive loads and engine start thanks to its high power of overload.
MPPT 80A regulator
MPPT regulator of 80A and up to 145V in open circuit. The MPPT regulator charge voltage allows to reach 64 volts to be able to use lead acid, gel or agm batteries.
The all in one inverter comes with a 60A AC charger to charge if necessary
60-amp battery charger that allows you to use the electrical network or a generator to charge batteries if necessary. Capacity to charge 140 amps with network and solar panels simultaneously delivering power to the batteries.
All in one inverter with LCD where you can see all the data of the solar installation.
In this screen you will monitor the whole system in an easy and intuitive way, voltage and power of the solar panels, power consumed, the frequency and voltage of output as well as being able to program a multitude of options and priorities of operation. Very intuitive to use.
Includes software for windows and linux where you can monitor the system from a PC to modify values, download history, set alarms, ...
Axpert multifunction all in one inverters warranty
All axpert all in one inverters come with a 2-year warranty (repair without investor costs provided it is not due to misuse)
Main features
- Pure sine wave solar inverter
- Output power factor 1 (0.8 in the 3kp and 5kp model)
- High PV input voltage range
- Inverter running without battery
- Built-in 80A MPPT solar charger
- Battery equalization function to optimize battery performance and extend the life cycle
- Cold start function
It offers excellent benefits for the solar equipment since thanks to its reinforced plates allows a longer duration and a better operation. It just needs a very sporadic seasonal maintenance to maintain the battery life. It offers excellent value for money.
Solar Battery Deep Cycle TAB Monoblock 250Ah (C100)
Characteristics:
- Voltage: 12V.
- Brand: TAB.
- Dimensions: 509x175x182 / 208 mm.
- Weight: 35.8 Kg.
- Battery type: Solar Monoblock.
- Under maintenance.
- 300 charge cycles (according to IEC / EN 60254-1 / 25 ° C).
- Capacity in C100: 150Ah and in C20: 140Ah.
- Separation plate between reinforced cells.
- Plates anchored to vibration and shock proof.
- Low self-discharge.
- Low flotation current.
- Leaded battery terminals.
- Special alloy that ensures the corrosion resistance of the grids and the conductivity of the active material.
- Manufactured according to ISO 9002 certification and complying with CE and UL regulations.
- Fire resistant ABS material container.
- 2 years warranty.
The batteries can be connected between them by forming three different types of connection:
Serial connection:
The serial connection is made when you want to increase the voltage while the capacity of the battery is maintained. To make this type of connection, you must attach the positive pole of one of the batteries, with the negative pole of the other.
Parallel connection:
The parallel connection serves to multiply the capacity of the battery while the voltage remains constant. To do this, all the positives are connected on one side and on the other side, all the negative poles.
Mixed serial and parallel connection:
This type of connection is made in installations at 24V where you want to connect more than 2 batteries at a time. In this case, batteries should always be placed in pairs, ie in pairs. It is not recommended to connect more than 8 12V batteries to each other, as this may damage the installation because of performance losses.
Attention: Never connect the positive and negative poles of the same battery together. This will result in a short circuit and irreparable damage to the battery. Also do not connect several batteries in a circle, for the same reason.
The most important cables of a solar installation are those that are used to connect the batteries to each other and the one that connects from the battery to the inverter. These cables must be sufficiently sectioned.
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
Protector combi Alpha + overvoltages P+T 2P, 40A 15kA
Model: EPBOV2SC40
| Tension: | 170-280V AC |
| Frequency: | 50-60 Hz |
| Class Electrical Insulation: | II |
| Shot wound: | C |
| Number of Polos: | 2P+T |
| Guarantee: | 3 Years |
| Certificates: | CE & RoHS,UKCA |
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
8 elements of Legrand
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
