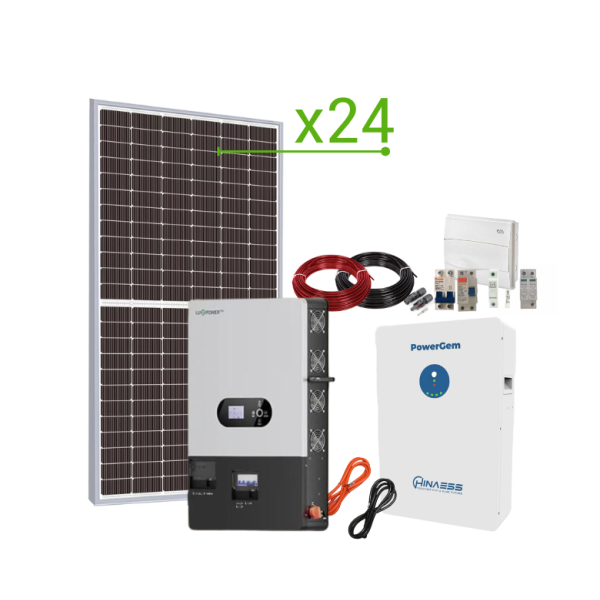

Insulated Solar Kit 83.520Wh/day and lithium battery 28kWh - LuxPower SNA 14kW

LuxPower SNA 14,000W all-in-one multifunctional 14,000W 48V solar inverter, which combines the functions of an inverter, MPPT solar regulator, and battery charger to provide power supply for homes without a grid connection.

Dimensions: 530 x 830 x 150mm

Weight: 40 kg

Power: 14,000W

Grid type: single-phase

MPPT: 2

Monitoring: Wifi (included)

Guarantee: 3 years

LuxPower SNA 14,000W solar inverter for off-grid installation

The Luxpower SNA 14,000W solar inverter is ideal for installation in homes or premises without connection to the electricity grid that require a stable and quality electricity supply. The LuxPower SNA series is specially designed to operate in off-grid mode, is compatible with most 48V lithium batteries on the market, and has an advanced communication and monitoring system that improves all existing equipment on the market.

LuxPower SNA 14,000W Operating Modes

The SNA series off-grid inverters allow the system to operate as backup power or as a replacement for a diesel generator. Since the inverter supports the parallel connection function, the system capacity can range from 5 kW to 50 kW.

Off-grid mode: Works like a traditional off-grid inverter, you can adjust the output to either the utility grid first, the battery first, or solar first.

This device is ideal for installations where the power grid is unavailable or where a weak grid causes power outages. It is also ideal for homes that want to disconnect from the grid.

It has a backup AC port where you can choose to connect to the utility grid, a diesel generator (recommended), and other power sources such as wind turbines.

Luxpower SNA 14,000W Mobile Monitoring

One of the most striking aspects of the Luxpower SNA series inverters is the development of the inverter communication system, which includes a Wi-Fi stick as standard and allows mobile monitoring through the mobile application LuxPowerView available for both Android and iOS.

Technical Details LuxPower SNA 14,000W

• Output power: 14,000W
• Network type: single-phase
• MPPT: 2/2+2
• MPPT range: 100-480V
• Compatible batteries: *Related downloads
• Maximum loading and unloading batteries: 125/140A
• Communication: LCD+LED, RS4855, WiFi, CAN
• Weight: 40kg
• Dimensions: 530 x 830 x 150 mm

 LuxPower SNA 14,000W Inverter Data Sheet

LuxPower SNA 14,000W Warranty

The equipment has a 3-year warranty, provided that the following handling recommendations are followed:

 Luxpower SNA 14,000W Guarantee

 Luxpower SNA 14,000W warranty conditions

LuxPower SNA 14K inverter installation

LuxPower SNA 14,000W Inverter User Manual

List of batteries compatible with the LuxPower SNA 14K inverter

Batteries compatible with LuxPower SNA 12,000W Inverter

LuxPower SNA inverter CE certificate 14K

CE Certificate LuxPower SNA 14,000W Inverter

Lithium Battery (LFP) PowerGem of the manufacturer HinaEss of 14.3 kWh capacity (280Ah at 51.2V) and 8000 cycles of useful life, ideal for solar energy applications, both in its version for photovoltaic self-consumption with storage, as well as for off-grid solar installations.

Dimensions: 900x475x238 mm

Weight: 115 kg

PowerGem Plus Lithium Battery 14.3kWh - 51.2V

The PowerGem Plus Lithium Iron Phosphate (LiFePO4) or (LFP) battery of 14.3 kWh from Hinaess is ideal for solar energy applications, both for photovoltaic self-consumption with storage and for off-grid solar installations.

Compatible with Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Solark, SRNE, Must inverters... parallel connection capacity up to 32 units. Easy installation thanks to its quick connections to reduce installation times.

Advantages of LFP Technology

It has a long and extended lifespan, around 8,000 cycles and approximately 10 years, with the manufacturer guaranteeing more than 70% of useful capacity at the beginning. They are easy to expand to obtain large storage; increased depth of discharge (90% DOD); compact and modular design that allows for easy installation/updating; ability to operate in different temperature conditions; advanced BMS that allows real-time alarm reporting.

PowerGem Plus Capacity

The energy capacity of each of these modules is 14.3kWh. Thanks to its format, up to 32 units can be connected in parallel, reaching a staggering 457.6kWh of energy storage capacity.

Battery Interface

The interface presented by HINAESS with the PowerGem Plus is intuitive and easy to connect:

1. Power button - Press to turn on the BMS and press again to turn off the BMS
2. Execution LED
3. Alarm LED
4. Charge status LED
5. Positive connector
6. Communication output
7. Communication input
8. CAN port
9. RS485 port
10. Dry contact
11. Dip switch
12. Reset button
13. Negative connector
14. Ground

PowerGem Battery Technical Specifications by Hinaess 51.2V 14.3kWh

Manufacturer's Warranty

For HINAESS batteries, we guarantee that the manufacturer ensures at least 70% of the initial usable energy capacity after 10 years of use or 8,000 cycles, whichever comes first.

Downloads

PowerGem Plus Lithium Battery Technical Datasheet 14.3kWh - 51.2V

Download PowerGem Plus Lithium Battery User Manual 14.3kWh - 51.2V

Download warranty conditions

The 50 mm HinaESS power cable kit is necessary for the connection of the battery to our photovoltaic investor. This cable kit is compatible with the HinaESS Powergem 14kWh battery models.

2 x 1,5m long power cables (positive and negative)

HinaESS power cable kit for battery-inverter connection Δ Powergem

Important: The battery-inverter communication cable is purchased separately. You can buy it here for investors Deye, Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48 as well as for Ingecon SUN Storage 6 Ingeteam o investors off-grid LuxPower SNA.

2M communications cable to connect investors Voltronic Axpert or Luxpower SNA with HinaESS lithium batteries.

Important: This cable is suitable for investors Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48x and the rest of superior power models.

Please consult with us if you have any questions of compatibility of your equipment with this cable. It's not sold separately.

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

Pre-assembled DC protection panel designed to ensure maximum safety in photovoltaic installations. Assembled in a surface-mounted, watertight enclosure, they house surge protectors and fuse holders with 20A fuses per pole. These pre-assembled panels are ready to use, simplifying photovoltaic installations and resulting in considerable time savings.

Type: DC Protection Panel, 3 string, 600V DC

Includes:

• 1 Surface-mounted, watertight enclosure
• 3 600V surge protector
• 6 fuse holders + 2 x 20A fuses

Pre-assembled DC Protection Panel 3 String 600V

The DC protection panel is an essential component in any solar installation. Its main function is to act as a shield between the generating array—the solar panels—and the inverter. By directly receiving the DC wiring that carries energy on lines up to 600V (for single-phase configurations), this panel protects the main equipment from transient voltage spikes, lightning strikes, and overcurrents, preventing costly breakdowns and ensuring compliance with safety regulations.

The main advantage of choosing a pre-assembled and pre-wired panel is the direct time and cost savings during construction.

Receiving a plug-and-play unit eliminates the complexity of individually assembling fuse holders, 20A fuses, and surge protectors on-site. This drastically reduces the margin of error in internal wiring, ensures that all components meet watertightness and fireproofing standards in their surface-mount enclosure, and speeds up commissioning for both professional installers and private projects.

The AC protection panel connects the solar inverter to the home's electrical grid, protecting the installation against overvoltages, short circuits, and ground faults. Purchasing it pre-assembled and pre-wired ensures regulatory compliance, prevents wiring errors, and minimizes on-site installation time: simply mount it to the wall, connect the lines, and start up with complete safety.

Type: Single-phase 80A AC protection panel suitable for photovoltaic installations with or without grid connection.

Includes:

• 1 Inner waterproof surface box
• 2 automatic magneto-thermal switches 2P 80A
• 1 differential switch 2p 80A 300mA
• 1 x 125A three-position manual transfer switch

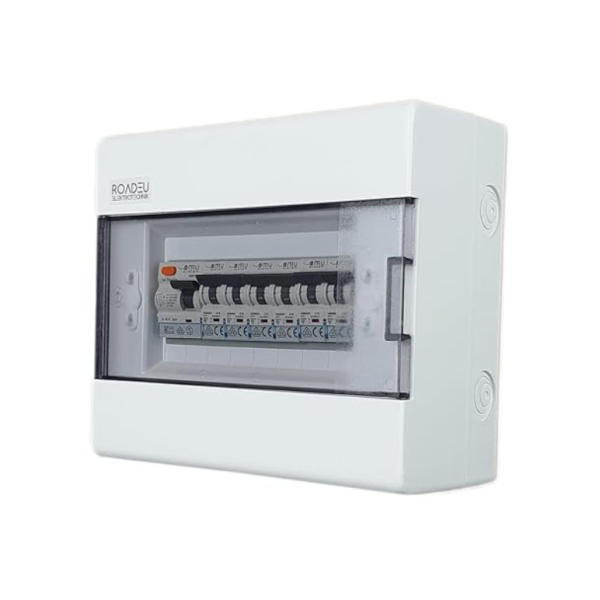

Pre-assembled 80A single-phase AC panel with on/off-grid backup

The AC protection panel is the component responsible for protecting the electrical line that connects the solar inverter to the main electrical panel of the house and the electrical grid. Its function is to safeguard the inverter and the installation against overvoltages (transient and permanent), short circuits, and ground faults, guaranteeing a safe disconnection in case of any anomaly.

Purchasing it pre-assembled and pre-wired guarantees a quick, clean, and 100% safe installation. By receiving the surface-mounted, weatherproof panel fully assembled and factory-tested, you drastically reduce labor time during installation, avoid wiring errors between circuit breakers and residual current devices (RCDs), and ensure strict compliance with current electrical regulations.
