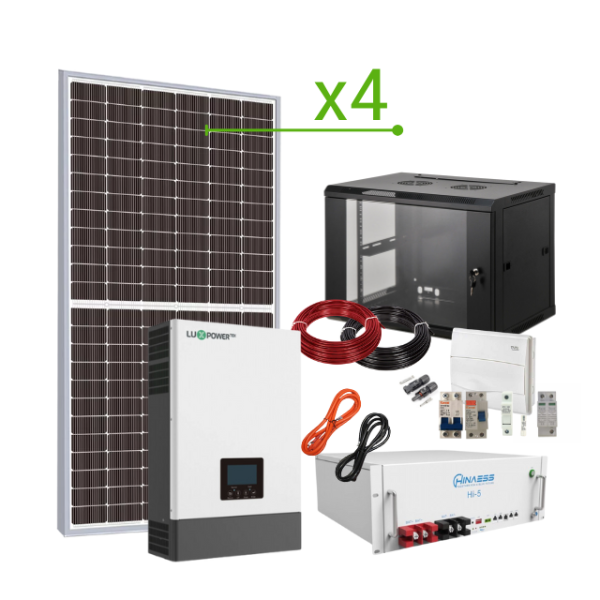

Insulated Solar Kit 13.920Wh/day and lithium battery 5kWh - LuxPower SNA 6kW

LuxPower SNA 6000W Solar Inverter for Off-grid Installation

LuxPower SNA 6000W all-in-one multifunctional 6000W 48V solar inverter, which combines the functions of an inverter, MPPT solar controller, and battery charger to provide a power supply for homes without connection to the electricity grid.

Dimensions: 330 x 505 x 135mm

Weight: 14.5 kg

Power: 6,000W

Grid Type: Single-phase

MPPT: 2

Monitoring: Wifi (included)

Warranty: 3 years

LuxPower SNA 6000W Solar Inverter for Off-grid Installation

The 6000W Luxpower SNA solar inverter is ideal for installation in homes or premises without connection to the electricity grid that require a stable and high-quality power supply. The SNA series from LuxPower are specially designed to operate in off-grid mode, are compatible with most 48V lithium batteries on the market, and have an advanced communication and monitoring system that improves upon all existing equipment on the market.

Operating Modes LuxPower SNA 6000W

The SNA series off-grid inverters allow the system to function as backup power or as a substitute for a diesel generator. Since the inverter supports the parallel connection function, the system capacity can range from 5 kW to 50 kW.

Off-grid operating mode: functions as a traditional off-grid inverter, it can set the output to public grid first, battery first, or solar first.

This equipment is ideal for installations where the electricity grid does not reach or there is a weak grid that causes power outages. It is also the ideal equipment for those homes that want to disconnect from the electricity grid.

It has a backup AC port where we can choose to connect the electricity grid, diesel generator (recommended), and other energy sources such as wind turbines.

Luxpower SNA 6000W Mobile Monitoring

One of the most striking aspects of the Luxpower SNA series inverters is the development of the inverter's communication system, which includes a standard Wifi stick and allows mobile monitoring through the LuxPowerView mobile application available for both Android and iOS operating systems.

Technical Details LuxPower SNA 6000W

• Output Power: 6000W
• Grid Type: Single-phase
• MPPT: 2
• MPPT Range: 100-480V
• Compatible Batteries: *Related Downloads
• Maximum Charge and Discharge Current: 125/140A
• Communication: LCD+LED, RS4855, WiFi, CAN
• Weight: 14.5 kg
• Dimensions: 335 x 450 x 160mm

Technical Data Sheet LuxPower SNA 6000W Inverter

LuxPower SNA 6000W Warranty

The equipment has a 3-year warranty, provided that the following handling recommendations are met:

Luxpower SNA 6000W Warranty

Luxpower SNA 6000W Warranty Conditions

LuxPower SNA 6K Inverter Installation

LuxPower SNA 6000W Inverter Installation Manual

User Manual LuxPower SNA 6000W Inverter

LuxPower SNA 6000W Inverter Configuration Manual

List of batteries compatible with the LuxPower SNA 6K inverter

Batteries compatible with LuxPower SNA 6000W Inverter

CE Certificate LuxPower SNA 6K inverter

CE Certificate LuxPower SNA 6000W Inverter

New version of the lithium Battery (LFP) Hi-5 manufacturer HinaESS of 5,12kWh capacity (100Ah to 51,2V) and 6000 life cycles useful, ideal for solar energy applications, both for the photovoltaic self-consumption with storage, and for solar installations isolated from the power grid.

Dimensions: 438x165x546mm

Weight: 49,4 kg

Guarantee: 10 years

*Important: We recommend purchasing the HinaESS update cable(sold separately).

Lithium battery Hi-5 HinaESS 5,12kWh V3 - 51,2V

Lithium Battery (LFP) Hi-5 manufacturer HinaESS of 5,12kWh capacity (100Ah to 51,2V) and 6000 life cycles useful, ideal for solar energy applications, both for the photovoltaic self-consumption with storage, and for solar installations isolated from the power grid.

This 5.12kWh modular battery is expandable in up to 50 units without any additional equipment and is compatible with most solar market investors.

HynaESS Hi-5 battery compatible investors

Compatible with investors Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Solark, SRNE, Must... parallel connection capacity up to 32 units. Easy installation thanks to its fast connections to reduce times in the facilities.

List of battery-compatible investors HinaESS Hi-5

Battery capacity HinaESS Hi-5

The energy storage capacity with which each of these modules counts is of 5,12kWh. Thanks to the format it presents, you can connect to 32 parallel units, reaching the fridge 166.4kWh power storage capacity.

Advantages of LFP technology

It has a long and extended service life, about 6,000 cycles and about 10 years approximately, guaranteeing the manufacturer that arrives with more than 70% of the useful capacity to the int. They are easy to enlarge to obtain large storage; increase in download depth (90% DOD); compact and modular design that allows easy installation / update; possibility of operating in different temperature conditions; advanced BMS that allows you to report real-time alarms.

HynaESS Hi-5 battery interface

Technical specifications of the HinaESS Hi-5 V3 battery 51.2V 5.12kWh

Download

Technical data Litio HinaESS Hi-5 5,12kWh Battery - 51,2V

Download Manual Litio Hi-5 HinaESS 5,12kWh - 51,2V

 Download warranty conditions HinaESS Hi-5

The HinaESS 25mm power cable kit is necessary for the connection of the battery to our photovoltaic investor. This cable kit is compatible with the HinaESS Hi-5 battery models.

2 x 1,5m long power cables (positive and negative)

HinaESS power cable kit for battery-inverter connection Δ Hi-5

Important: The battery-inverter communication cable is purchased separately. You can buy it right here for investors Deye, Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48 as well as for Ingecon SUN Storage 6 Ingeteam or investors off-grid LuxPower SNA.

2M communications cable to connect investors Voltronic Axpert or Luxpower SNA with HinaESS lithium batteries.

Important: This cable is suitable for investors Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48x and the rest of superior power models.

Please consult with us if you have any questions of compatibility of your equipment with this cable. It's not sold separately.

19″ Wall-Mounted Rack Cabinet, 9U 60X60cm, made of SPCC cold-rolled steel, including:

• Removable door with 5mm thick tempered glass.

• Door opens more than 180º.

• Accessible side panels.

• Security lock with key.

• Cable access from the top and bottom of the cabinet.

• Prepared to incorporate two cooling fans.

• Screws and wall mounting accessories supplied.

• Reliable and rigid construction.

• Dimensions 60 x 60 x 50 cm (width/depth/height).

• SUPPLIED UNASSEMBLED.

MODEL SUPPLIED WITHOUT ACCESSORIES, SHELVES, FAN, THERMOSTAT…

Rack Cabinet 9U 600X600 for 3 US5000 Modules

Whatever your company's requirements, both in terms of space and capacity, we provide a tailored solution. Whether you are a small business or a multinational, your company will have the perfect solution if you want to install micro data centers, telecommunications systems, networks, educational systems, or broadcasting; whatever you need, with the highest quality and competitive prices.

We have 19” wall cabinets of different heights —from 6U to 18U—, with a depth of 600 mm and width of 600 mm, ideal for limited space requirements and/or restrictive environmental conditions.

Main Features of Rack Cabinets

Wall-mounted rack cabinet with standard width of 19” (482.6 mm), with ample interior space for components and wiring. Compact and resistant design.

Modular and stackable construction.

Easy access from three sides for installation and maintenance, reducing assembly and management time.

Front door with 4mm tempered glass and keyed security lock. Total opening angle of 180°.

Easily removable side panels.

Adjustable mounting rails.

This type of rack cabinets can be installed both on walls and on the floor.

Materials and Finishes

Treatment: degreasing and anti-rust paint.

Degree of Protection: IP20.

Thickness of the steel structure: 2 mm.

Material: High quality cold rolled SPCC steel.

Color: Black, smooth and polished finish.

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

Pre-assembled DC protection panel designed to ensure maximum safety in photovoltaic installations. Assembled in a surface-mounted, watertight enclosure, they house surge protectors and fuse holders with 20A fuses per pole. These pre-assembled panels are ready to use, simplifying photovoltaic installations and resulting in considerable time savings.

Type: DC Protection Panel, 1 string, 600V DC

Includes:

• 1 Surface-mounted, watertight enclosure
• 1 600V surge protector
• 2 fuse holders + 2 x 20A fuses

Pre-assembled DC Protection Panel 1 String 600V

The DC protection panel is an essential component in any solar installation. Its main function is to act as a shield between the generating array—the solar panels—and the inverter. By directly receiving the DC wiring that carries energy on lines up to 600V (for single-phase configurations), this panel protects the main equipment from transient voltage spikes, lightning strikes, and overcurrents, preventing costly breakdowns and ensuring compliance with safety regulations.

The main advantage of choosing a pre-assembled and pre-wired panel is the direct time and cost savings during construction.

Receiving a plug-and-play unit eliminates the complexity of individually assembling fuse holders, 20A fuses, and surge protectors on-site. This drastically reduces the margin of error in internal wiring, ensures that all components meet watertightness and fireproofing standards in their surface-mount enclosure, and speeds up commissioning for both professional installers and private projects.

The AC protection panel connects the solar inverter to the home's electrical grid, protecting the installation against overvoltages, short circuits, and ground faults. Purchasing it pre-assembled and pre-wired ensures regulatory compliance, prevents wiring errors, and minimizes on-site installation time: simply mount it to the wall, connect the lines, and start up with complete safety.

Type: Single-phase 40A AC protection panel suitable for photovoltaic installations with or without grid connection.

Includes:

• 1 Inner waterproof surface box
• 2 automatic magneto-thermal switches 2P 40A
• 1 differential switch 2p 40A 300mA
• 1 x 63A three-position manual transfer switch

Pre-assembled 40A single-phase AC panel with on/off-grid backup

The AC protection panel is the component responsible for protecting the electrical line that connects the solar inverter to the main electrical panel of the house and the electrical grid. Its function is to safeguard the inverter and the installation against overvoltages (transient and permanent), short circuits, and ground faults, guaranteeing a safe disconnection in case of any anomaly.

Purchasing it pre-assembled and pre-wired guarantees a quick, clean, and 100% safe installation. By receiving the surface-mounted, weatherproof panel fully assembled and factory-tested, you drastically reduce labor time during installation, avoid wiring errors between circuit breakers and residual current devices (RCDs), and ensure strict compliance with current electrical regulations.
