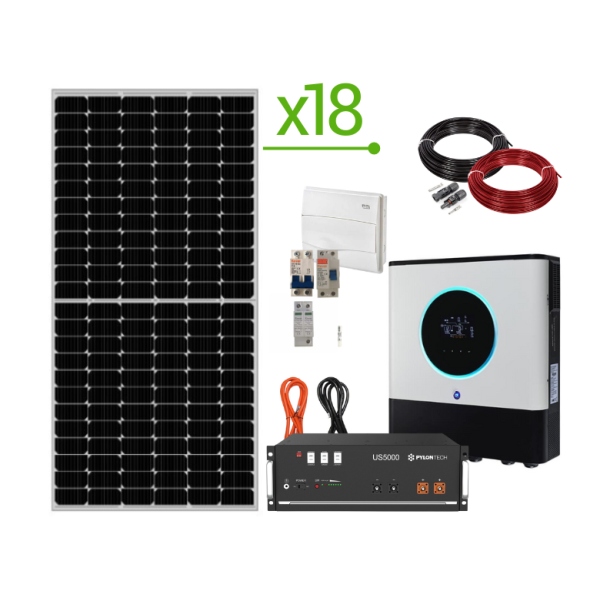

Insulated Solar Kit 51,840Wh/day and lithium battery 14.4Wh - Voltronic Axpert MAX II 8K-48
Solar photovoltaic kit for home without connection to electric grid composed of the following:
Lithium photovoltaic kit 51,840Wh/day for isolated housing, the kit is composed of 3x pylontech lithium battery 4.8Kw ,1x solar inverter axpert max II of 8000W 48v MPPT and 18x solar panels 480W. The photovoltaic lithium solar kit for isolated housing is ideal for consumptions up to 8000w, the working tension of investor is 48v along with the solar lithium battery Pylontech, a combination that offers very good results. The solar kit is ideal for homes isolated from the network with high consumptions, country houses and weekends.
They will need support (not included) for solar panels, which can be on flat surface or on tilted surface.
Leapton solar 480W LP182-18-M-60-NH N Type TOPCon - 25 years warranty
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
- This product is not available for order.
Voltronic Axpert - MAX II 8000W | Off-gris solar inverter
Voltronic Axpert MAX II. New fourth generation 8000W and 48V solar inverter. This new equipment includes new techniques, this new model incorporates a Wi-Fi function, this allows you to carry out monitoring from your mobile through the mobile application.
The inverter comes with UBS On-the-Go function for easy rewriting of internal parameters, data downloads, and software updates. The battery independent design enhances this inverter to function without a battery connected.
- Dimensions: 158,4 x 502,5 x 530,8m
- Weight: 20kg
- Wifi: Android o iOS App monitoring
New Lithium Battery Pylontech US5000 4.8kWh – 48V
New Lithium Battery US5000 Pylontech the capacity is 4.8 kWh.
This battery also has a modular design to facilitate the system capacity expansion as needed, as it has a parallel capacity of up to 16 units.This allows you to reach up to 72.96 kWh of accumulation, without having to add a LV Hub.
Its intelligent BMS protects the battery cells and provides a 95% DoD.
IMPORTANTIf you purchase a module Pylontech to expand your battery rack you will not need Kit of cables.If it is the first module you buy, you will need a cable kit Pylontech connect the battery to the solar inverter.
Electrical wiring sets Pylontech for the battery-inverter connection
The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.
2 x 2m long power cables (positive and negative)
Voltronic Axpert Communication Cable to Pylontech Battery | US2000C-US3000C-UP2500
2M communication cable for connecting Voltronic Axpert inverters to Pylontech lithium batteries. This cable is also compatible with Ingeteam's Ingecon SUN Storage inverters with Pylontech US2000C, US3000C, or high voltage H48050 batteries.
Important: This cable is suitable for Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7,200-48, Voltronic Axpert VM IV 3,600-24, Voltronic Axpert VM IV 5,600-48, Voltronic Axpert MAX II 8,200-48 as well as for Ingeteam's Ingecon SUN Storage 6 TL M inverters.
Please consult with us if you have any questions about the compatibility of your equipment with this cable. Not sold separately.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
40A Differential Kayal
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
One of product is no longer available. This pack cant be purchased
Pack content
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
Leapton solar panel 480W LP182-18-M-60-NH N Type topon
480W monocrystalline Leapton solar module with N-Type TOPCon technology that ensures maximum efficiency even in low light conditions.
The 480W Leapton solar panel has a 25-year warranty and is within the Tier1 list of best-selling brands.
See also Leapton solar 480W LP182-18-M-60-NH
This Regulation shall be binding in its entirety and directly applicable in all Member States
The Commission therefore concludes that the contested scheme is compatible with the internal market
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
The number of cells shall be reported
It incorporates the latest technology in photovoltaic cell development with the N-Type TOPCon that increases output per cell from 10 to 20W.
It shall be capable of operating at a power output not exceeding 30 W
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
Voltronic Axpert MAX II. New fourth generation 8000W and 48V solar inverter. This new equipment includes new techniques, this new model incorporates a Wi-Fi function, this allows you to carry out monitoring from your mobile through the mobile application.
The inverter comes with UBS On-the-Go function for easy rewriting of internal parameters, data downloads, and software updates. The battery independent design enhances this inverter to function without a battery connected.
- Dimensions: 158,4 x 502,5 x 530,8m
- Weight: 20kg
- Wifi: Android o iOS App monitoring
Inverter Voltronic Axpert MAX II 8000W-48V
Voltronic Axpert MAX II. New fourth generation 8000W and 48V solar inverter. This new equipment includes new techniques, this new model incorporates a Wi-Fi function, this allows you to carry out monitoring from your mobile through the mobile application.
The inverter comes with UBS On-the-Go function for easy rewriting of internal parameters, data downloads, and software updates. The battery independent design enhances this inverter to function without a battery connected.
Technical Datasheet Voltronic Axpert - MAX II 8000W 48V
Main characteristics of the new Axpert MAX II 8000W-48V inverter
Technical sheet of the Axpert MAX II 8000W-48V inverter for isolated installations
Double mppt of 500v and 150A.
The new axpert max hybrid inverter has two independent inputs of up to 500v and 150 amps to connect up to 4000w in solar panels in each of them. With the two inputs to the maximum we have a photovoltaic field of 8000w to power consumption and charge batteries. The starting range has been decreased and at only 90 volts input the mppt will already work to generate solar energy.
The inverter has an 150 amp AC charger for cloudy days
The 80 amp battery charger of this hybrid allows that if the battery ever dies due to bad weather the hybrid inverter can use the source of a generator or electrical network to charge it in a few hours. For example. an 1500 amp battery 80% depleted would replenish your face in about 8 hours. If the load source is a generator, it must be a low harmonic distortion inverter. Non-inverter generators may not be supported by the equipment as having correct margins to run.
All-in-one inverter with LCD where you can see all the data of the solar installation.
On this screen you will monitor the entire system in an easy and intuitive way, voltage and power of the solar panels, consumed power, frequency and output voltage, as well as being able to program a multitude of options and operating priorities. Very intuitive to use.
It includes software for windows and linux where you can monitor the system from a pc to modify values, download historical records, set alarms, ...
Axpert multifunction all-in-one inverter warranty
All axpert all-in-one inverters come with a 2-year warranty (free repair of the inverter provided it is not due to misuse)
New Lithium Battery US5000 Pylontech the capacity is 4.8 kWh.
This battery also has a modular design to facilitate the system capacity expansion as needed, as it has a parallel capacity of up to 16 units.This allows you to reach up to 72.96 kWh of accumulation, without having to add a LV Hub.
Its intelligent BMS protects the battery cells and provides a 95% DoD.
IMPORTANTIf you purchase a module Pylontech to expand your battery rack you will not need Kit of cables.If it is the first module you buy, you will need a cable kit Pylontech connect the battery to the solar inverter.
Features Lithium battery Pylontech US5000 4,8kWh 48V
Data sheet Pylontech US5000 48V - 4.8kWh lithium battery
Installation manual Lithium battery Pylontech US25000 48V
The lithium battery Pylontech US5000 of 4.8kWh is formed by Lithium-Ion modules that allows us to have a modular photovoltaic storage system to expand its capacity with up to 16 units without the need for any additional equipment. Among its main features is also the compatibility with many of the investors in the market. Its value for money is another factor to take into account.
Pylontech 48V US5000 offers an easy-to-handle format and fast parallel connection. It contains an internal BMS that is responsible for distributing energy between the cells efficiently and safely, avoiding overload or excessive discharges.
The manufacturer Pylontech offers 7 years warranty for the product as long as the instructions for use are followed. We recommend contacting our technician and following the instructions to keep the battery in perfect condition and meet the requirements of the brand.
The 48V Pylontech US5000 batteries are compatible with inverters for off-grid installations Voltronic Axpert or Victron Energy, as well as economical inverters such as Goodwe. Contact our technical team to know the compatibility of Pylontech with the inverter of your installation.
Manufacturer's warranty: 7 years (+3 additional years with manufacturer web registration)
To access the additional 3 years of warranty offered by the manufacturer it is necessary to register the product on its website. You can find the form to fill out HERE.
Battery capacity Pylontech US5000 48V
The capacity of each module of the 48V US5000 Pylontech lithium battery is 4.8kWh. The discharge cycles of lithium batteries are much deeper than lead-acid batteries, so the performance and performance make it ideal for self-consumption installations. Thanks to its modular format, up to 16 units can be installed, reaching up to 76.8kWh.
Advantages of LiFePo4 Pylontech US5000 technology
- Life cycle more than 6,000 cycles, equivalent to approximately 11 years of work, with a final capacity of 80%;
- The molecular structure of LFP batteries is more stable and therefore safer, allowing a 600°C increase in combustion temperature compared to 300°C for NMC and LCO;
- They are easy to expand for large storage;
- Increased depth of discharge (90% DOD);
- Compact and modular design allows for easy installation/upgrade;
- Possibility to operate in different temperature conditions;
- Advanced BMS that allows you to report alarms in real time
Connecting battery modules Pylontech US5000 4.8kWh 48V
List of Inverters compatible with batteries Pylontech US5000 48V
See in the following PDF the list of inverters compatible with pylontech US2000C, US3000C and pylontech Powercube X1, H1/H2 and Force H1 batteries
List of Inverters compatible with Pylontech batteries
We especially recommend the use of the Pylontech US5000 battery with the following single-phase and three-phase inverter models:
- Goodwe GW-BP / SBP and GW-ES/EM
- Voltronic Axpert (Isolated Installations)
- Turbo Energy 10k 48V (Three-phase)
- Ingeteam Ingecon SUN Storage 6TL M
Technical specifications Pylontech US5000
The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.
2 x 2m long power cables (positive and negative)
Electrical wiring sets Pylontech for the battery-inverter connection
Important: The communication cable between battery and inverter is purchased separately. You can buy it right here for investors Deye, Voltronic Axpert VMIII 5000-48, Voltronic Axpert King 5000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48 as well as for the inverters Ingecon SUN Storage 6 TL M of which Ingeteam.
2M communication cable for connecting Voltronic Axpert inverters to Pylontech lithium batteries. This cable is also compatible with Ingeteam's Ingecon SUN Storage inverters with Pylontech US2000C, US3000C, or high voltage H48050 batteries.
Important: This cable is suitable for Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7,200-48, Voltronic Axpert VM IV 3,600-24, Voltronic Axpert VM IV 5,600-48, Voltronic Axpert MAX II 8,200-48 as well as for Ingeteam's Ingecon SUN Storage 6 TL M inverters.
Please consult with us if you have any questions about the compatibility of your equipment with this cable. Not sold separately.
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
Interior surface panel 12 Legrand elements
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Solar photovoltaic kit for home without connection to electric grid composed of the following:
Lithium photovoltaic kit 51,840Wh/day for isolated housing, the kit is composed of 3x pylontech lithium battery 4.8Kw ,1x solar inverter axpert max II of 8000W 48v MPPT and 18x solar panels 480W. The photovoltaic lithium solar kit for isolated housing is ideal for consumptions up to 8000w, the working tension of investor is 48v along with the solar lithium battery Pylontech, a combination that offers very good results. The solar kit is ideal for homes isolated from the network with high consumptions, country houses and weekends.
They will need support (not included) for solar panels, which can be on flat surface or on tilted surface.
