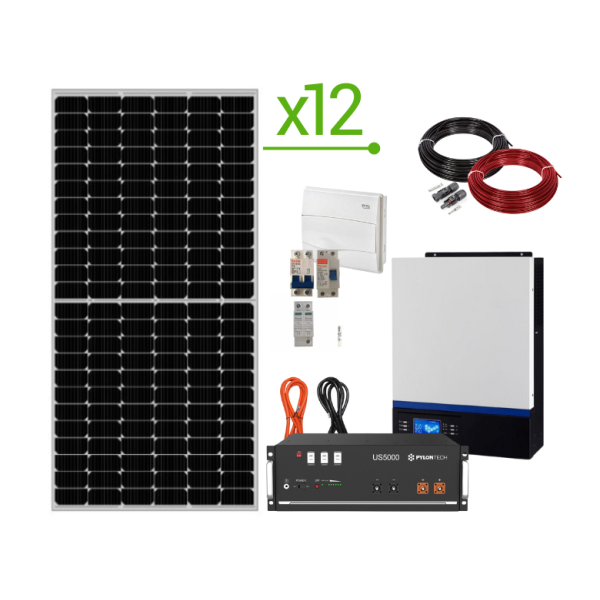

Insulated Solar Kit 34,560Wh/day and lithium battery 9.6kWh - Voltronic Axpert VMIII 5K-48
Solar photovoltaic kit for home without connection to electric grid composed of:
The photovoltaic lithium kit for isolated housing is ideal for consumptions up to 5000w, battery working voltage investor is 48v along with the lithium battery Pylontech, a combination that offers very good results. The solar kit is ideal for isolated homes with medium consumptions, country houses and weekends.
They will need support (not included) for solar panels, you can find them right here.
Leapton solar 480W LP182-18-M-60-NH N Type TOPCon - 25 years warranty
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
- This product is not available for order.
Inverter Voltronic Axpert VMIII 5000W-48V
Inverter Axpert VMIII 5000W 48V all in one multifunctional 5000W and 48V that combines functions of inverter, solar mppt regulator and battery charger to provide uninterruptible power supply in portable size.
The Axpert VMIII is a stand-alone inverter with many new functions. Its detachable LCD control module can be converted into a remote panel. It has integrated Bluetooth connectivity, ready for mobile monitoring and in addition, the USB on-the-go function makes it possible to upload and download data. The new Axpert VMIII inverter can operate without the battery connected.
- Dimensions: 115 x 300 x 400mm
- Weight: 10kg
New Lithium Battery Pylontech US5000 4.8kWh – 48V
New Lithium Battery US5000 Pylontech the capacity is 4.8 kWh.
This battery also has a modular design to facilitate the system capacity expansion as needed, as it has a parallel capacity of up to 16 units.This allows you to reach up to 72.96 kWh of accumulation, without having to add a LV Hub.
Its intelligent BMS protects the battery cells and provides a 95% DoD.
IMPORTANTIf you purchase a module Pylontech to expand your battery rack you will not need Kit of cables.If it is the first module you buy, you will need a cable kit Pylontech connect the battery to the solar inverter.
Electrical wiring sets Pylontech for the battery-inverter connection
The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.
2 x 2m long power cables (positive and negative)
Voltronic Axpert Communication Cable to Pylontech Battery | US2000C-US3000C-UP2500
2M communication cable for connecting Voltronic Axpert inverters to Pylontech lithium batteries. This cable is also compatible with Ingeteam's Ingecon SUN Storage inverters with Pylontech US2000C, US3000C, or high voltage H48050 batteries.
Important: This cable is suitable for Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7,200-48, Voltronic Axpert VM IV 3,600-24, Voltronic Axpert VM IV 5,600-48, Voltronic Axpert MAX II 8,200-48 as well as for Ingeteam's Ingecon SUN Storage 6 TL M inverters.
Please consult with us if you have any questions about the compatibility of your equipment with this cable. Not sold separately.
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
Differential switch 2 poles 25A 30mA
Industrial and tertiary Alpha+ differential. 2P, 25A, 30mA. I'm going to take this. AC class. 6kA
This Regulation shall enter into force on the day following that of its publication in the Official Journal of the European Union
One of product is no longer available. This pack cant be purchased
Pack content
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
Leapton solar panel 480W LP182-18-M-60-NH N Type topon
480W monocrystalline Leapton solar module with N-Type TOPCon technology that ensures maximum efficiency even in low light conditions.
The 480W Leapton solar panel has a 25-year warranty and is within the Tier1 list of best-selling brands.
See also Leapton solar 480W LP182-18-M-60-NH
This Regulation shall be binding in its entirety and directly applicable in all Member States
The Commission therefore concludes that the contested scheme is compatible with the internal market
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
The number of cells shall be reported
It incorporates the latest technology in photovoltaic cell development with the N-Type TOPCon that increases output per cell from 10 to 20W.
It shall be capable of operating at a power output not exceeding 30 W
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
Inverter Axpert VMIII 5000W 48V all in one multifunctional 5000W and 48V that combines functions of inverter, solar mppt regulator and battery charger to provide uninterruptible power supply in portable size.
The Axpert VMIII is a stand-alone inverter with many new functions. Its detachable LCD control module can be converted into a remote panel. It has integrated Bluetooth connectivity, ready for mobile monitoring and in addition, the USB on-the-go function makes it possible to upload and download data. The new Axpert VMIII inverter can operate without the battery connected.
- Dimensions: 115 x 300 x 400mm
- Weight: 10kg
All in one Inverter Voltronic Axpert VMIII 5000-48V
Inverter-charger-regulator of 48V and 5000W of nominal power, with 60A battery charger, 80A MPPT charge regulator for solar modules. Model Axpert VM5000-48 that allows the equalization of batteries.
3-in-1 equipment that combines 230V inverter, battery charger when an auxiliary alternating current input is connected (network, generator set or similar) and a solar charge maximizing regulator from solar panels.
Main feautures
- Detechabel LCD control module with multiple communications
- Built-in bluethooth for mobile monitoring (android app is aviable)
- Supports USB On-the-go function
- Reserved communication port for BSM (RS485, CAN-BUS or RS232)
- Repleaceable fan design for ease fo maintenance
- Supply load from Grid or PV, even battery is not aviable
- Configurable AC/PV aoutput usage timer and prioritization
- Selectable high power charging current
- Selectable input voltage range for home appliances and personal cimputers
- Compatible to utility mains or generator input
- Auto restar while AC is recovering
- Cold start function
Axpert inverter of maximum performance, designed for small autonomous solar installations.
It incorporates MPPT charge regulator maximizer for MPPT modules and battery charger with high charging current.
48Vdc working voltage.
Qualities of the axpert multifunction all in one inverter VM III 5000W MPPT 80A
A renewed design with connectors for batteries and solar panels easier to connect are the main external changes compared to previous models. Internally it comes with additional functions that improve the charge of the batteries in front of the first multifunctional all in one inverters.
Equalization charge
Possibility of performing equalization in manual and automatic programming intervals from 1 to 90 days from the menu. It allows an equalization voltage of 54V, essential in lead acid batteries.
Equalization time
From the menu we can select the equalization time from 30 to 900 min.
Protection voltage
The equipment's firing time increased to 63 volts and can be used with more types of batteries and new technologies that appear.
FP1 (Power factor 1)
The new all in one inverter axpert 5000W PF1 increases the power by 25% compared to the previous model, thus providing a real output of 5000W.
Axpert pure sine wave all in one inverter
The new all in one inverter 48V 5000W MPPT 80A is a powerful pure sine wave inverter suitable for connecting any appliance, motor, ... up to 5000W. It allows to work at 110% several minutes and double its power for 5 seconds for inductive loads and engine start thanks to its high power of overload.
MPPT 80A regulator
MPPT regulator of 60A and up to 500 volts in open circuit. The MPPT regulator charge voltage allows to reach 54 volts to be able to use lead acid, gel or agm batteries.
The all in one inverter comes with a 60A ac charger to charge if necessary.
60-amp battery charger that allows you to use the electrical network or a generator to charge batteries if necessary. Ability to charge 80 amps with network and solar panels delivering power simultaneously to the batteries.
All in one inverter with LCD where to see all the data of the solar installation.
In this screen you will monitor the whole system in an easy and intuitive way, voltage and power of the solar panels, power consumed, the frequency and voltage of output as well as being able to program a multitude of options and priorities of operation. Very intuitive to use.
Includes software for windows and linux where you can monitor the system from a PC to modify values, download history, set alarms, ...
Inverter Voltronic Axpert VMIII 5000VA-48V
Axpert multifunction all in one inverters warranty
All axpert all in one inverters come with a 2-year warranty (repair without investor costs provided it is not due to misuse)
New Lithium Battery US5000 Pylontech the capacity is 4.8 kWh.
This battery also has a modular design to facilitate the system capacity expansion as needed, as it has a parallel capacity of up to 16 units.This allows you to reach up to 72.96 kWh of accumulation, without having to add a LV Hub.
Its intelligent BMS protects the battery cells and provides a 95% DoD.
IMPORTANTIf you purchase a module Pylontech to expand your battery rack you will not need Kit of cables.If it is the first module you buy, you will need a cable kit Pylontech connect the battery to the solar inverter.
Features Lithium battery Pylontech US5000 4,8kWh 48V
Data sheet Pylontech US5000 48V - 4.8kWh lithium battery
Installation manual Lithium battery Pylontech US25000 48V
The lithium battery Pylontech US5000 of 4.8kWh is formed by Lithium-Ion modules that allows us to have a modular photovoltaic storage system to expand its capacity with up to 16 units without the need for any additional equipment. Among its main features is also the compatibility with many of the investors in the market. Its value for money is another factor to take into account.
Pylontech 48V US5000 offers an easy-to-handle format and fast parallel connection. It contains an internal BMS that is responsible for distributing energy between the cells efficiently and safely, avoiding overload or excessive discharges.
The manufacturer Pylontech offers 7 years warranty for the product as long as the instructions for use are followed. We recommend contacting our technician and following the instructions to keep the battery in perfect condition and meet the requirements of the brand.
The 48V Pylontech US5000 batteries are compatible with inverters for off-grid installations Voltronic Axpert or Victron Energy, as well as economical inverters such as Goodwe. Contact our technical team to know the compatibility of Pylontech with the inverter of your installation.
Manufacturer's warranty: 7 years (+3 additional years with manufacturer web registration)
To access the additional 3 years of warranty offered by the manufacturer it is necessary to register the product on its website. You can find the form to fill out HERE.
Battery capacity Pylontech US5000 48V
The capacity of each module of the 48V US5000 Pylontech lithium battery is 4.8kWh. The discharge cycles of lithium batteries are much deeper than lead-acid batteries, so the performance and performance make it ideal for self-consumption installations. Thanks to its modular format, up to 16 units can be installed, reaching up to 76.8kWh.
Advantages of LiFePo4 Pylontech US5000 technology
- Life cycle more than 6,000 cycles, equivalent to approximately 11 years of work, with a final capacity of 80%;
- The molecular structure of LFP batteries is more stable and therefore safer, allowing a 600°C increase in combustion temperature compared to 300°C for NMC and LCO;
- They are easy to expand for large storage;
- Increased depth of discharge (90% DOD);
- Compact and modular design allows for easy installation/upgrade;
- Possibility to operate in different temperature conditions;
- Advanced BMS that allows you to report alarms in real time
Connecting battery modules Pylontech US5000 4.8kWh 48V
List of Inverters compatible with batteries Pylontech US5000 48V
See in the following PDF the list of inverters compatible with pylontech US2000C, US3000C and pylontech Powercube X1, H1/H2 and Force H1 batteries
List of Inverters compatible with Pylontech batteries
We especially recommend the use of the Pylontech US5000 battery with the following single-phase and three-phase inverter models:
- Goodwe GW-BP / SBP and GW-ES/EM
- Voltronic Axpert (Isolated Installations)
- Turbo Energy 10k 48V (Three-phase)
- Ingeteam Ingecon SUN Storage 6TL M
Technical specifications Pylontech US5000
The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.
2 x 2m long power cables (positive and negative)
Electrical wiring sets Pylontech for the battery-inverter connection
Important: The communication cable between battery and inverter is purchased separately. You can buy it right here for investors Deye, Voltronic Axpert VMIII 5000-48, Voltronic Axpert King 5000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48 as well as for the inverters Ingecon SUN Storage 6 TL M of which Ingeteam.
2M communication cable for connecting Voltronic Axpert inverters to Pylontech lithium batteries. This cable is also compatible with Ingeteam's Ingecon SUN Storage inverters with Pylontech US2000C, US3000C, or high voltage H48050 batteries.
Important: This cable is suitable for Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7,200-48, Voltronic Axpert VM IV 3,600-24, Voltronic Axpert VM IV 5,600-48, Voltronic Axpert MAX II 8,200-48 as well as for Ingeteam's Ingecon SUN Storage 6 TL M inverters.
Please consult with us if you have any questions about the compatibility of your equipment with this cable. Not sold separately.
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Interior surface panel 12 Legrand elements
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
Industrial and tertiary Alpha+ differential. 2P, 25A, 30mA. I'm going to take this. AC class. 6kA
This Regulation shall enter into force on the day following that of its publication in the Official Journal of the European Union
Solar photovoltaic kit for home without connection to electric grid composed of:
The photovoltaic lithium kit for isolated housing is ideal for consumptions up to 5000w, battery working voltage investor is 48v along with the lithium battery Pylontech, a combination that offers very good results. The solar kit is ideal for isolated homes with medium consumptions, country houses and weekends.
They will need support (not included) for solar panels, you can find them right here.
