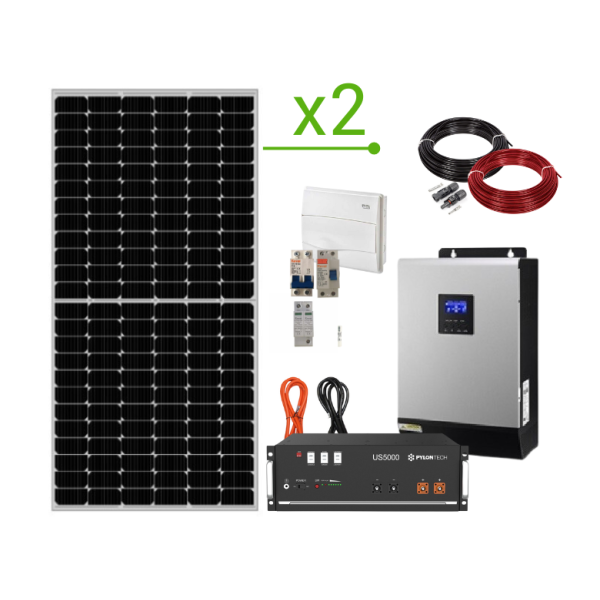

Insulated Solar Kit 5.760Wh/day and lithium battery 2,4kWh - Voltronic Axpert MKS 3K-48
Solar photovoltaic kit for home without connection to electric grid composed of:
The photovoltaic lithium kit for isolated housing is ideal for consumptions up to 3.000W, battery working voltage investor is 48v along with the lithium battery Pylontech, a combination that offers very good results. The solar kit is ideal for isolated homes with low consumptions, country houses and weekends.
They will need support (not included) for solar panels, you can find them right here.
Hanersun 490W Hitouch 5N HN18N-60HT TOPCon - Bifacial
High efficiency bifacial solar panel Hanersun 490W Hitouch N5 HN18N-60HT TOPCon. The leading manufacturer of Hanersun solar panels is among the Tier1 Bloomberg brands.
Size: 1910 x 1134 x 30 mm
Weight: 25.9 kg
What Plated
15 years warranty of product and 30 years of linear production guarantee above 87.4%.
Other
Inverter Voltronic Axpert MKS 3K-48 Plus 3000W MPPT 48V
Multifunctional inverter of 3000W and 48V that combines functions of inverter, MPPT solar regulator of 60A and battery charger of 15A to offer uninterruptible power supply in portable size. Load in 4 stages with equalization and power factor 1 (FP1) to achieve 3000W real
Lithium Battery 2.4kWh Pylontech US2000C - New Version 48V
Pylontech's lithium battery US2000C is the latest technology frontier for photovoltaic storage applications.
The simplicity and modularity of the US2000C with 2.4kWh capacity makes it suitable for small and large accumulation systems and expandable according to current and future energy needs.
IMPORTANT: If you purchase a Pylontech module to expand your battery rack you will not need a cable kit. If it is the first module you buy you will need the Pylontech cable kit to connect your new battery to the solar inverter.
NOW AVAILABLE!
Electrical wiring sets Pylontech for the battery-inverter connection
The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.
2 x 2m long power cables (positive and negative)
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
Differential switch 2 poles 25A 30mA
Industrial and tertiary Alpha+ differential. 2P, 25A, 30mA. I'm going to take this. AC class. 6kA
This Regulation shall enter into force on the day following that of its publication in the Official Journal of the European Union
Shipping costs for orders with less than 4 solar panels
Sending self-consuming or isolated kits and packages that include less than 4 photovoltaic panels carry associated an additional cost in terms of preparation and shipping for Spain and Portugal.
Pack content
High efficiency bifacial solar panel Hanersun 490W Hitouch N5 HN18N-60HT TOPCon. The leading manufacturer of Hanersun solar panels is among the Tier1 Bloomberg brands.
Size: 1910 x 1134 x 30 mm
Weight: 25.9 kg
What Plated
15 years warranty of product and 30 years of linear production guarantee above 87.4%.
Other
Hanersun 490W Hitouch N5 HN18N-60HT TOPWith bifacial
Bifacial module Hanersun of 490W monocrystalline with N-Type TOPCon technology that guarantees maximum efficiency even in low luminosity conditions.
The 490W Hanersun bifacial solar panel has 15 years warranty and is within the Tier1 list of the most sold brands.
See technical data sheet Hanersun 490W bifacial Hitouch N5 HN18N-60HT TOPCon
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
Cell N-Type TOPCon
It incorporates the latest technology in the development of photovoltaic cells with the type N-Type TOPCon which increases cell production from 10 to 20W.
Technical characteristics Hanersun 490W Hitouch N5 HN18N-60HT TOPWith bifacial
Data sheet
- Module Type
- Bifacial
- Panel power
- 450W-510W
Multifunctional inverter of 3000W and 48V that combines functions of inverter, MPPT solar regulator of 60A and battery charger of 15A to offer uninterruptible power supply in portable size. Load in 4 stages with equalization and power factor 1 (FP1) to achieve 3000W real
All in One inverter Axpert MKS 3K-48 Plus 3000W MPPT 48V
Inverter-charger-regulator of 48V and 3000W of nominal power, with 48A battery charger, 60A MPPT charge regulator for solar modules. Model Axpert MKS 3K-48 that allows the equalization of batteries.
3-in-1 equipment that combines 230V inverter, battery charger when an auxiliary alternating current input is connected (network, generator set or similar) and a solar charge maximizing regulator from panels.
Download Axpert Inverter Manual
Download Axpert Investor Technical Sheet
Axpert inverter of maximum performance, designed for small autonomous solar installations.
It incorporates MPPT charge regulator maximizer for MPPT modules and battery charger with high charging current.
48V working voltage
Properties of the multifunction all in one inverter axpert MKS 3000W MPPT 60A 48V
A renewed design with connectors for batteries and solar panels easier to connect are the main external changes compared to previous models. Internally it comes with additional functions that improve the charge of the batteries in front of the first multifunctional all in one inverters.
Equalization charge
Possibility of performing equalization in manual and automatic programming intervals from 1 to 90 days from the menu. It allows an equalization voltage 54V, essential in lead acid batteries.
Equalization time
From the menu we can select the equalization time from 30 to 900 min.
Protection voltage
The equipment's firing time increased up to 62V and can be used with more types of batteries and new technologies that appear.
FP1 (Power factor 1)
The new all in one inverter axpert 3000W PF1 increases 25% the power compared to the previous model thus providing an output of 3000w real.
Pure sinewave axpert all in one inverter
The new all in one 48V 3000W mppt 60A is a powerful pure sine wave inverter suitable for connecting any appliance, motor, ... up to 3000W. It allows to work at 110% several minutes and double its power for 5 seconds for inductive loads and engine start thanks to its high power of overload.
MPPT regulator 60A
MPPT regulator of 60A and up to 145V in open circuit. The MPPT regulator charge voltage allows to reach 54V to be able to use lead acid, gel or agm batteries.
The all in one inverter comes with a 15A AC charger to charge if necessary.
15 amp battery charger that allows you to use the electrical network or a generator to charge batteries if necessary. Ability to charge 75 amps with network and solar panels delivering power simultaneously to the batteries.
All in one inversor with LCD where to see all the data of the solar installation.
In this screen you will monitor the whole system in an easy and intuitive way, voltage and power of the solar panels, power consumed, the frequency and voltage of output as well as being able to program a multitude of options and priorities of operation. Very intuitive to use.
Includes software for windows and linux where you can monitor the system from a PC to modify values, download history, set alarms, ...
Axpert multifunction all in one inverters warranty
All axpert all in one inverters come with a 2-year warranty (repair without investor costs provided it is not due to misuse)
Main features
- Pure sine wave solar inverter
- Output power factor 1 (0.8 in the 3kp and 5kp model)
- High PV input voltage range
- Inverter running without battery
- Built-in 60A MPPT solar charger
- Battery equalization function to optimize battery performance and extend the life cycle
- Cold start function
To get more information about which inverter is the most suitable for your solar installation please contact us, we will be happy to help you.
Pylontech's lithium battery US2000C is the latest technology frontier for photovoltaic storage applications.
The simplicity and modularity of the US2000C with 2.4kWh capacity makes it suitable for small and large accumulation systems and expandable according to current and future energy needs.
IMPORTANT: If you purchase a Pylontech module to expand your battery rack you will not need a cable kit. If it is the first module you buy you will need the Pylontech cable kit to connect your new battery to the solar inverter.
NOW AVAILABLE!
Features Pylontech US2000C 48V lithium battery
Technical datasheet Pylontech US2000C 48V - lithium battery 2.4kWh
Installation manual for lithium battery Pylontech US2000C 48V
The Pylontech US2000C 2.4kWh lithium-ion battery is made up of lithium-ion modules that allow us to have a modular photovoltaic storage system to expand its capacity with up to 16 units without the need for any additional equipment. Among its main features is also the compatibility with many of the inverters on the market. Its price-performance ratio is another factor to take into account.
The 48V Pylontech US2000C offers an easy-to-use format and quick parallel connection. It contains an internal BMS that is responsible for distributing power between the cells efficiently and safely, preventing overcharging or excessive discharging.
The manufacturer Pylontech offers a 7 year warranty on the product as long as the instructions for use are followed. We recommend contacting our technicians and following the instructions to keep the battery in perfect condition and to comply with the requirements of the brand.
Pylontech US2000C 48V batteries are compatible with Voltronic Axpert or Victron Energy off-grid inverters, as well as low-cost inverters such as Goodwe. Contact our technical team for Pylontech's compatibility with your inverter installation.
Manufacturer's warranty: 7 years (+3 additional years with registration on manufacturer's website)
To access the additional 3 years warranty offered by the manufacturer it is necessary to register the product on their website. You can find the form to fill in HERE.
Capacidad de las batería Pylontech US2000C 48V
The capacity of each module of the Pylontech US2000C 48V lithium battery is 2.4kWh. The discharge cycles of lithium batteries are much deeper than lead batteries, so the performance and features make it ideal for self-consumption installations. Thanks to its modular format, up to 16 units can be installed, reaching up to 38.4kWh.
Advantages of the LiFePo4 technology Pylontech US2000C
- Life cycle over 6,000 cycles, equivalent to approximately 11 years of work, with a final capacity of 80%;
- The molecular structure of LFP batteries is more stable and therefore safer, allowing a 600°C increase in combustion temperature compared to 300°C for NMC and LCO;
- They are easy to expand to obtain a large storage size;
- Increased depth of discharge (90% DOD);
- Compact and modular design allowing easy installation/upgrade;
- Ability to operate in different temperature conditions;
- Advanced BMS that allows you to report alarms in real time; Advanced BMS that allows you to report alarms in real time
Connection of Pylontech US2000C 2.4kWh 48V battery modules
List of Inverters compatible with Pylontech US2000C 48V batteries
See the following PDF for a list of inverters compatible with pylontech US2000C, US3000C and pylontech Powercube X1, H1/H2 and Force H1 batteries.
List of Inverters compatible with Pylontech batteries
The Pylontech US2000 battery is compatible with models:
- Goodwe GW-BP / SBP and GW-ES/EM.
- Voltronic Axpert (OFF-GRID Installations)
Technical specifications Pylontech US2000C - US3000C
The power cord kit Pylontech it's necessary to connect the battery to our photovoltaic inverter. This cable kit is compatible with battery models Pylontech For the purposes of this Regulation, the following definitions shall apply: Pylontech of 24 V UP2500.
Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting the inverter.
2 x 2m long power cables (positive and negative)
Electrical wiring sets Pylontech for the battery-inverter connection
Important: The communication cable between battery and inverter is purchased separately. You can buy it right here for investors Deye, Voltronic Axpert VMIII 5000-48, Voltronic Axpert King 5000-48, Voltronic Axpert MAX 7.200-48, Voltronic Axpert VM IV 3.600-24, Voltronic Axpert VM IV 5.600-48, Voltronic Axpert MAX II 8.200-48 as well as for the inverters Ingecon SUN Storage 6 TL M of which Ingeteam.
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Interior surface panel 12 Legrand elements
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
Industrial and tertiary Alpha+ differential. 2P, 25A, 30mA. I'm going to take this. AC class. 6kA
This Regulation shall enter into force on the day following that of its publication in the Official Journal of the European Union
Sending self-consuming or isolated kits and packages that include less than 4 photovoltaic panels carry associated an additional cost in terms of preparation and shipping for Spain and Portugal.
Solar photovoltaic kit for home without connection to electric grid composed of:
The photovoltaic lithium kit for isolated housing is ideal for consumptions up to 3.000W, battery working voltage investor is 48v along with the lithium battery Pylontech, a combination that offers very good results. The solar kit is ideal for isolated homes with low consumptions, country houses and weekends.
They will need support (not included) for solar panels, you can find them right here.
