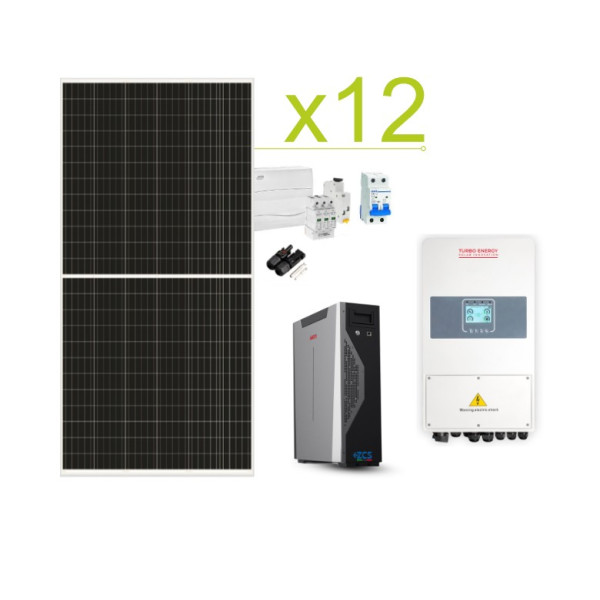

Off-grid Solar Kit Turbo Energy 34,560Wh/day and WeCo XP 5.3kWh Lithium Battery

5kW hybrid inverter from the Turbo Energy brand, ideal for both photovoltaic self-consumption applications and isolated grid installations. It has the Peak Shaving function that allows the contracted power to be reduced, thanks to our software the battery is automatically programmed to be consumed at peak demand, so there is a reduction in demand from the network.

Monitoring, zero discharge and Wi-Fi included

Dimensions: 580x330x232mm

Weight: 20.5kg

Turbo Energy Hybrid Inverter 48V 5.0

5kWh hybrid inverter of the Turbo Energy brand, ideal for both photovoltaic self-consumption applications and for off-grid installations. It has the Peak Shaving function that allows to reduce the contracted power, thanks to our software the battery is automatically programmed to be consumed in peak demand so there is a reduction in demand to the grid.

 Download Technical Data Sheet Turbo Energy Hybrid Inverter 48V 5.0

 Download Turbo Energy 48V Hybrid Inverter Manual 5.0

 Download Installation Guide Turbo Energy Hybrid Inverter 48V 5.0

Main features Turbo Energy 48V 5kW hybrid inverter

- Wifi monitoring

- Compatible with Pylontech 48V batteries US2000C or US3000C

- Programmable operating modes

- Peak Shaving

- 5kW backup output

- Smart Load

- Overload protection

Dimensions: 580x330x232 mm

Weight: 20,5 kg

Certificates and warranty Turbo Energy 48V 5.0

 Download Declaration of Conformity Turbo Energy Hybrid Inverter 48V 5.0

 Download Certificate of Conformity (Intertek) Turbo Energy Hybrid Inverter 48V 5.0

 Download Warranty Turbo Energy Hybrid Inverter 48V 5.0

The new 5.3kWh, 48V WeCo XP lithium battery with modular system is one of the most versatile storage systems for application in isolated or self-consuming photovoltaic installations.

The WeCo XP WiFi battery is compatible with the most commonly used inverter brands; Goodwe, The Voltronic Axpert, You know, Studer, Sma, Blue...

Capacity of the module: 5.3 kWh

Size: 460x520x155weight: 53 kg

Modular system Max. 15 units in parallel and 105 units with the WeCo Expansion Hub.

Low voltage / high voltage applications

Guarantee: 10 years

The new WeCo XP is fully compatible with the WeCo Dual model for expansions.

IMPORTANT -- ACCESSORIES -- READ THE DESCRIPTION

Characteristics of the new lithium battery WeCo 5K3 XP WiFi 5,3kWh 48V

The new WeCo XP lithium battery is one of the most advanced on the market for storage in photovoltaic solar energy systems. The new WeCo XP battery is expandable and compatible with the previous model. It allows you to connect from 1 module of 5.3kWh up to 15 modules in parallel and expand up to 105 modules working at 48V. At high voltage, thanks to the WeCo HUB, we can go up to 768kWh.

Battery data sheet Weco 5K3 XP

Manual battery Weco 5K3 XP

THIS IS IMPORTANT -- ACCESSORIES

-If it is the first WeCo battery you connect you will need for proper operation the power cable kit the WeCo brand and the communication cable in addition to support in case of need.

-In case you already own a WeCo battery and want to expand to continue to 48V, you will need parallel terminals and bracket (optional).

-In case you already own a WeCo battery and want to expand to work at high voltage, you will need the new BMS and the stand (optional).

FITTINGS

WeCo power cable kit

WeCo communications cable

WeCo parallel connectors

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.

Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA

Model: EPR2C040030

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Interior surface panel 12 Legrand elements

The WeCo current cable kit is necessary for the connection of the battery to our PV inverter. This cable kit is compatible with WeCo battery models.

Each battery unit includes the interconnection cables between batteries (parallel connection to another battery), while this cable kit is for connecting to the inverter.

2 x 2m long power cables (positive and negative)

Important: The communication cable between battery and inverter is purchased separately. You can purchase it here for the Voltronic Axpert VMIII 5,000-48, Voltronic Axpert King 5,000-48, Voltronic Axpert MAX 7,200-48, Voltronic Axpert VM IV 3,600-24, Voltronic Axpert VM IV 5,600-48, Voltronic Axpert MAX II 8,200-48 as well as for the Ingecon SUN Storage 6 TL M inverters from Ingeteam.

2M communication cable for connecting inverters with WeCo brand lithium batteries.

Please consult with us if you have any questions about the compatibility of your equipment with this cable. Not sold separately.
