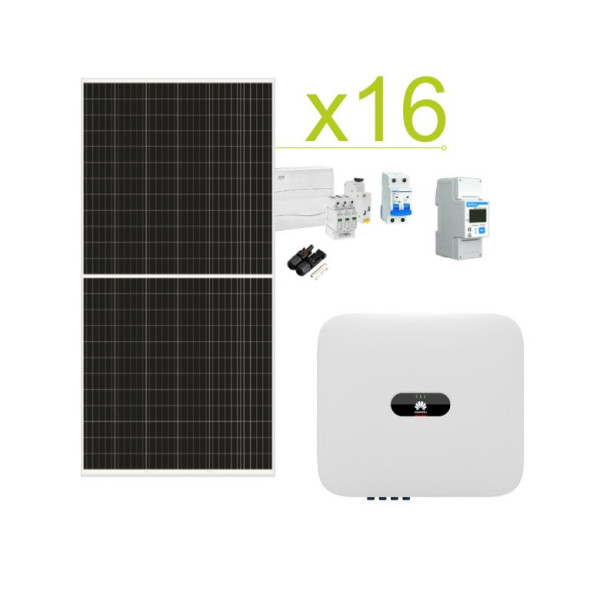

Solar Autoconsumption Kit Huawei 46,080Wh/day
Self-consumption solar kit capable of producing up to 46,080Wh/day. The solar kit consists of 1x NEW Inverter Huawei 6KTL L1, (injected zero) Smart Power Sensor and monitoring system, 16x solar panels 480W 120 cells. It is applied on residential homes, country houses, both for regular use and weekends.
The self-consumption kit manages smartly and efficiently energy sources, combine solar and network energy, with zero injection.
Leapton solar 480W LP182-18-M-60-NH N Type TOPCon - 25 years warranty
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
- This product is not available for order.
Huawei SUN2000-6KTL-L1 invertes | New residential model - 6.000W Single phase
The Huawei SUN2000L-6KTL-L1 hybrid inverter is part of Huawei's innovative new range of residential inverters. This intelligent inverter from Huawei has active protection against current arcs, higher efficiency with up to 30% more energy thanks to the new SUN2000-450W-P optimisers and also offers the possibility of connecting lithium accumulation batteries such as the LG Chem RESU 10H or the new modular battery from Huawei LUNA2000-SO.
To receive the necessary technical support for the start-up and configuration of the equipment or for the processing of the warranty, if necessary, you must select it in the drop-down menu. If you do not do so, you should always contact the manufacturer.
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
DDSU666-H Smart Power Sensor - Single-phase energy meter for Huawei inverters
Huawei Smart Power Sensor DDSU666-H is a single-phase current meter for solar photovoltaic installations for self-consumption. With the Smart Power Sensor, the Huawei solar inverters of the SUN2000L Smart Energy Center series can show, in addition to the solar production, the demand of the installation and offers the possibility of configuring zero grid feeding.
To receive the necessary technical support for the start-up and configuration of the equipment or for the processing of the warranty, if necessary, you must select it in the drop-down menu. If you do not do so, you should always contact the manufacturer.
Compatible with all Huawei single-phase inverter models
IMPORTANT: This equipment is not sold separately without its corresponding inverter.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
Permanent and transient overvoltages 2p 40A
Protector combi Alpha + overvoltages P+T 2P, 40A 15kA
Model: EPBOV2SC40
40A Differential Kayal
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
One of product is no longer available. This pack cant be purchased
Pack content
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
Leapton solar panel 480W LP182-18-M-60-NH N Type topon
480W monocrystalline Leapton solar module with N-Type TOPCon technology that ensures maximum efficiency even in low light conditions.
The 480W Leapton solar panel has a 25-year warranty and is within the Tier1 list of best-selling brands.
See also Leapton solar 480W LP182-18-M-60-NH
This Regulation shall be binding in its entirety and directly applicable in all Member States
The Commission therefore concludes that the contested scheme is compatible with the internal market
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
The number of cells shall be reported
It incorporates the latest technology in photovoltaic cell development with the N-Type TOPCon that increases output per cell from 10 to 20W.
It shall be capable of operating at a power output not exceeding 30 W
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
The Huawei SUN2000L-6KTL-L1 hybrid inverter is part of Huawei's innovative new range of residential inverters. This intelligent inverter from Huawei has active protection against current arcs, higher efficiency with up to 30% more energy thanks to the new SUN2000-450W-P optimisers and also offers the possibility of connecting lithium accumulation batteries such as the LG Chem RESU 10H or the new modular battery from Huawei LUNA2000-SO.
To receive the necessary technical support for the start-up and configuration of the equipment or for the processing of the warranty, if necessary, you must select it in the drop-down menu. If you do not do so, you should always contact the manufacturer.
Huawei's new single-phase inverters for residential self-consumption facilities are equipped with artificial intelligence and active protection. The entire SUN2000L-2-6KTL-L1 is equipped with built-in WLAN communication as standard.
Download technical details of Huawei SUN2000L-6KTL-L1
Download installation guide of Huawei SUN2000L-6KTL-L1
Download product guarantee of Huawei SUN2000L-6KTL-L1
Features of Huawei SUN2000L-6KTL-L1 single-phase hybrid inverter
The Huawei SUN2000L-5KTL-L1 is a single-phase inverter that is particularly suitable for residential self-consumption facilities. This 6,000W output power inverter has a maximum efficiency of 98.4% and is perfectly complemented by the SUN2000P-450W panel optimizers
- Easy to install and easy to use
No LCD screen. Built-in wifi (4G optional). Allows quick start up thanks to Huawei Solar's APP. The new Huawei SUN2000L-6KTL-L1 is configured in a single click and is easy to install thanks to its extreme lightness as it weighs 12kg.
- Silent
The new Huawei inverter has no fans, making it particularly quiet and suitable for use in homes.
- Latest generation hybrid inverte
The Huawei SUN2000L-6KTL-L1 has a battery input. It can combine the energy generated by the photovoltaic field together with the stored energy to supply all the power your home needs. The built-in storage interface allows you to install batteries without any extra elements. The new Huawei L1 series for residential installations are compatible with the LG Chem RESU 7H or 10H high voltage batteries as well as the new Huawei LUNA2000-SO modular battery.
- Monitoring
This series of residential string inverters has integrated WLAN but can be expanded with the use of Huawei Dongle. Communication via mobile networks (Huawei Smart Dongle 4G) is an option, or you can use communication via cable (Huawei Smart Dongle WLAN FE). The new Huawei inverter has Module Level Monitoring, which allows the solar panels to be monitored individually thanks to the new Huawei SUN2000L-450W-P power optimizers.
Through FusionSolar Smart PV Management System, Huawei offers all the control of the photovoltaic installation, allowing to know at any time and from any place the consumption and production of our plant.
- Safe and reliable
The Huawei SUN2000L-6KTL-L1 has an IP65 rating and as such has outstanding protection against external influences. The inverter is cooled by natural convection. It also has integrated lightning protection for both direct and alternating current. In addition, the inverter has integrated arc fault protection.
Technical Specifications of Huawei Single Phase Hybrid Inverter SUN2000L-6KTL-L1
If you do not find the product you are looking for or have questions about the compatibility of this or other Huawei products, please contact our team. More information on the official Huawei Solar website.
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
Huawei Smart Power Sensor DDSU666-H is a single-phase current meter for solar photovoltaic installations for self-consumption. With the Smart Power Sensor, the Huawei solar inverters of the SUN2000L Smart Energy Center series can show, in addition to the solar production, the demand of the installation and offers the possibility of configuring zero grid feeding.
To receive the necessary technical support for the start-up and configuration of the equipment or for the processing of the warranty, if necessary, you must select it in the drop-down menu. If you do not do so, you should always contact the manufacturer.
Compatible with all Huawei single-phase inverter models
IMPORTANT: This equipment is not sold separately without its corresponding inverter.
Main features Smart Power Sensor DDSU666-H single phase for Huawei inverters
- Measurement accuracy class 1
- Standard 35mm DIN mounting
- Compact and lightweight: 36mm x 72mm
- LCD display for easy setup and measurement
- Installation coupling connection
- RS485 included
- Efficient. Power consumption <1W
Download technical datasheet Smart Power Sensor DDSU666-H Single-phase
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
Interior surface panel 12 Legrand elements
Protector combi Alpha + overvoltages P+T 2P, 40A 15kA
Model: EPBOV2SC40
| Tension: | 170-280V AC |
| Frequency: | 50-60 Hz |
| Class Electrical Insulation: | II |
| Shot wound: | C |
| Number of Polos: | 2P+T |
| Guarantee: | 3 Years |
| Certificates: | CE & RoHS,UKCA |
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
Self-consumption solar kit capable of producing up to 46,080Wh/day. The solar kit consists of 1x NEW Inverter Huawei 6KTL L1, (injected zero) Smart Power Sensor and monitoring system, 16x solar panels 480W 120 cells. It is applied on residential homes, country houses, both for regular use and weekends.
The self-consumption kit manages smartly and efficiently energy sources, combine solar and network energy, with zero injection.
