Kostal Inverter Piko 15 Three-phase

Inverter 15000W Kostal PIKO three Phase

The Kostal PIKO 15000W Three Phase grid inverter is a model of the Kostal PIKO series in Three-phase grid inverters. The main characteristic of this inverter is that when working only with network connection they do not have a built-in transformer, therefore, its main function is direct consumption without batteries. In addition, this series of inverters includes a monitoring system that facilitates the control and supervision of the proper functioning of the solar installation and the performance of our solar inverter for grid connection.

Kostal PIKO MP network inverters thanks to their design have great flexibility when it comes to launching it, because they support any type of solar panel thanks to its wide voltage range of entrance.

Characteristics of the PIKO Kostal Inverter 15000W Three Phase

The Kostal PIKO 15000W network inverter incorporates the MC4 fast connection system.

Light weight, the inverter only weighs 8.3 Kg, as it does not incorporate a transformer.

Ethernet connectivity and internal data logging with display on its housing.

5 year manufacturer's warranty, expandable.

Silent, the Kostal PIKO network inverter is cooled by internal ventilation in this way its noise does not exceed 31dB.

Integrated communication package as standard with data logging, web server and solar portal.

Possibility of integration of energy meters

Operation and installation of the Kostal network inverter PIKO 15000W Three Phase

The operation of the Kostal PIKO 15000W Three Phase network inverter is similar to the other inverters of network connection, the solar panels are generating energy in DC at different voltage and the network inverter converts the energy in 220V alternating and single phase that injects it instantaneously to the electrical installation.

In this inverter system with network, in particular with the Kostal PIKO 15000w Three Phase inverter, it is necessary to install a wattmeter, this device is used so that in our solar installation with network we do not waste energy to the electrical network, this device controls the current of the grid inverter and the electrical network so that we do not inject any energy into the network.

The commissioning of the Kostal PIKO network inverter is simple, we only have to take into account the connection of the panels in a single series and then adjust the internal parameters of the Kostal assistant.

For consumptions during the day, the installation of a network inverter can be very profitable since it supposes a important saving in the invoice of the light. Also if we get to optimize the consumptions in the slots of greater generation of photovoltaic energy the saving will be greater.

For the against the Three-phase PIKO  Kostal network inverters can not be used with batteries , that is, if we wanted to store surplus energy would not be possible since these network inverters only work with the power grid and solar panels not being able to store the remaining energy of panel for later consumption in the house.

For more information about the network inverters Kostal PIKO Three-phase contact us we will advise you without obligation.

Inverter - PIKO 15

Three-phase injection

Conversion without transformer

Possibility of expansion of the input current

Integrated circuit for self-consumption

Electronic integrated DC disconnect device

Integrated datalogger and web server for monitoring system

Several communication interfaces included as standard:

2 x Ethernet, RS485, S0, 4 x analog inputs

Display chart with keyboard

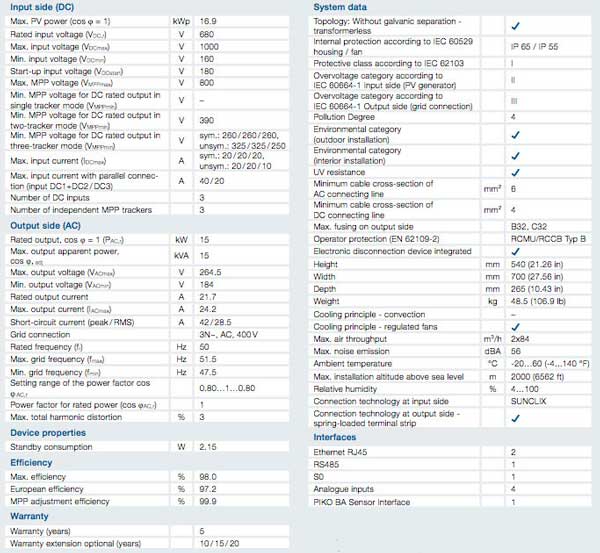

Datos técnicos inverter PIKO - 15
