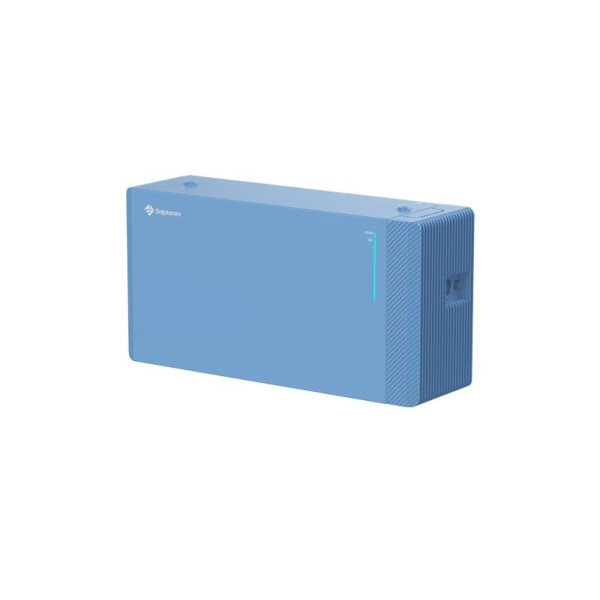

Lithium Battery Solplanet ASW5120-LB-G3 | 5.12kWh - 51.2V
Solplanet ASW5120-LB-G3 Lithium Battery (LiFePO4) from manufacturer Solplanet with 5.12kWh capacity (100Ah at 51.2V) and a lifespan of 6000 cycles, ideal for solar energy applications, both for photovoltaic self-consumption with storage and for off-grid solar installations.
Dimensions: 630 mm / 185 mm / 320 mm
Weight: 46.0 kg
Secure payment
Shipping policy
Return policy
Solplanet ASW5120-LB-G3 Lithium Battery | 5.12kWh - 51.2V
The Solplanet ASW5120-LB-G3 Lithium Battery (LiFePO4) offers a capacity of 5.12kWh (100Ah at 51.2V) and a lifespan of 6000 cycles, making it an optimal solution for solar power systems, both for self-consumption with storage and for off-grid installations. This battery is modular and can be stacked up to 4 modules per tower, reaching 20.48 kWh of nominal energy and 19.45 kWh of usable energy.
Performance and Reliability of the Solplanet ASW5120-LB-G3 Battery
The Solplanet ASW5120-LB-G3 stands out for its robust and efficient design, with compact dimensions of 630/185/320 mm and a weight of 46.0 kg, making installation easier. Its IP66 design allows both indoor and outdoor installation. The LiFePO4 technology provides safety and long lifespan, and the battery supports a charge/discharge rate of up to 1C.
Advanced Features of the Solplanet ASW5120-LB-G3 Battery
- LiFePO4 Technology: Known for its safety and durability.
- Modular design: Allows expansion by connecting up to 4 modules in parallel, optimizing storage capacity.
- Weather resistance: IP66 certification for indoor and outdoor use.
- Battery Management System (BMS): Smart and safe management with accurate diagnostics and SOC measurement for optimal battery control.
- High efficiency: Round-trip efficiency over 95%.
- Safety: Equipped with fire suppression system, integrated MOSFET, and double fuse for enhanced safety.
- User-friendly: Sleek design with hidden cable management and lightweight modules for easy handling and installation. Monitoring and configuration via Solplanet app.
- Communication: CAN interface.
Technical Specifications of Solplanet ASW5120-LB-G3 Battery
| Cell type | LiFePO4 |
| Nominal capacity | 100 Ah |
| Nominal energy | 5.12 kWh |
| Usable energy | 4.86 kWh |
| Nominal battery voltage | 51.2 V |
| Battery voltage range | 40 V - 58.4 V |
| Max. charge/discharge current | 100 A |
| Max. charge/discharge power | 5.12 kW |
| Dimensions (Width/Depth/Height) | 630 mm / 185 mm / 320 mm |
| Weight | 46.0 kg |
| Protection rating | IP66 |
| Lifecycle | 6000 cycles |
| Round-trip efficiency | ≥95% |
DOWNLOADS
Solplanet ASW5120-LB-G3 Battery Datasheet
BAT-SOL-ASW5120-LB-G3
Solplanet ASW5120-LB-G3 Lithium Battery (LiFePO4) from manufacturer Solplanet with 5.12kWh capacity (100Ah at 51.2V) and a lifespan of 6000 cycles, ideal for solar energy applications, both for photovoltaic self-consumption with storage and for off-grid solar installations.
Dimensions: 630 mm / 185 mm / 320 mm
Weight: 46.0 kg
