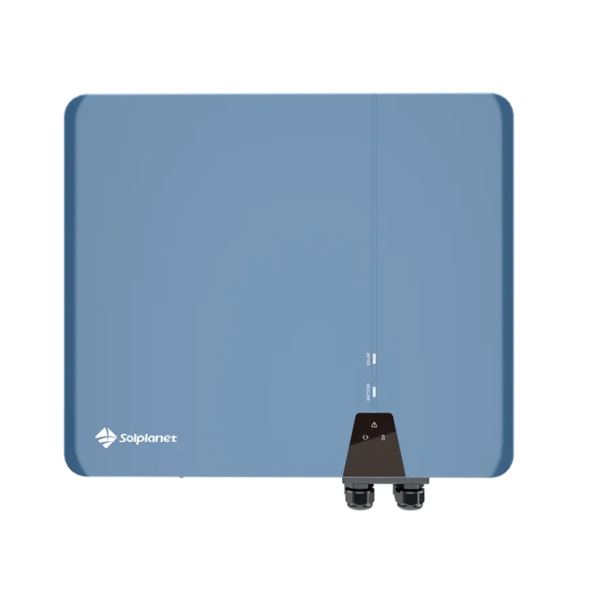

Solplanet ASW12kH-T3 | 12kW Three-Phase Hybrid Inverter

Solplanet ASW12kH-T3 | 12kW Three-Phase Hybrid Inverter

The new generation of Solplanet three-phase hybrid inverters, ASW H-T3 Series, feature a compact wall mount and IP66-rated design. They are compact, discreet, and reliable.

The Solplanet ASW12kH-T3 inverter boasts impressive speed when switching from grid-parallel mode to off-grid mode, with a UPS-level switching time of < 10 ms. This ensures you don't have to worry about power outages on the grid.

Solplanet ASW12kH-T3 inverter datasheet

Solplanet ASW12kH-T3 inverter installation manual

Solplanet ASW12kH-T3 user manual

Main features of Solplanet ASW H-T3 Series inverters

The Solplanet ASW12kH-T3 inverter is reliable, powerful, and easy to install.

- Features a design that allows quick and easy installation using basic tools. It also holds IP66 certification, making it ideal for both indoor and outdoor installations.

- The Solplanet hybrid inverter offers exceptional efficiency, with a maximum charge/discharge power of 12,000 W. MPPT efficiency is 99.9%, and European/maximum efficiency is 97.9% / 98.4%.

- The ASW H-T3 series provides a UPS-level switching time of < 10 ms. The system detects grid disconnection in under 10ms, so you won't have to worry about power outages.

- Allows oversizing of the photovoltaic array up to 150% for higher yields.

- The ASW12kH-T3 model offers a maximum input voltage of 1100 V and a minimum start voltage of 180 V. It features 3 independent MPPTs and a maximum input current of 16 A per MPPT, ideal for bifacial and large-area photovoltaic modules. The maximum photovoltaic array power is 18,000 Wp.

- Configuration, commissioning, and monitoring via the Solplanet app. Includes communication interfaces such as Wifi/LAN and BMS (CAN), as well as an interface for smart meters (RS485).
