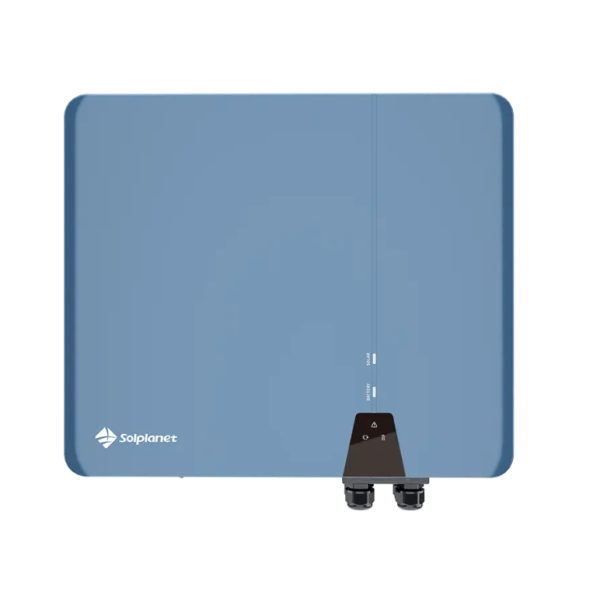

Solplanet ASW10kH-T3 | 10kW Three-Phase Hybrid Inverter

Solplanet ASW10kH-T3 | 10kW Three-Phase Hybrid Inverter

The new generation of Solplanet three-phase hybrid inverters, ASW H-T3 Series, features a compact wall-mounted support and IP66 protection design. They are compact, discreet, and reliable.

The Solplanet ASW10kH-T3 inverter boasts impressive switching speed from on-grid to off-grid mode, with UPS-level switching time of < 10 ms. This ensures you won’t have to worry about power outages from the utility grid.

Solplanet ASW10kH-T3 Inverter Datasheet

Solplanet ASW10kH-T3 Installation Manual

Solplanet ASW10kH-T3 User Manual

Main Features of the Solplanet ASW H-T3 Series Inverters

The Solplanet ASW10kH-T3 inverter is a reliable, powerful, and easy-to-install device.

- Designed for quick and easy installation with basic tools. Also certified with IP66 protection, making it suitable for both indoor and outdoor installations.

- The Solplanet hybrid inverter offers outstanding efficiency, with a maximum charge/discharge power of 10,000 W. MPPT efficiency is 99.9%, and European/maximum efficiency is 97.9% / 98.4%.

- The ASW H-T3 series provides UPS-level switching time of < 10 ms. The system detects grid disconnection in less than 10 ms, ensuring uninterrupted operation during outages.

- Allows for up to 150% oversizing of the PV array for greater energy yields.

- The ASW10kH-T3 model offers a maximum input voltage of 1100 V and a minimum startup voltage of 180 V. It features 3 independent MPPTs and a maximum input current of 16 A per MPPT, ideal for large-area or bifacial PV modules. The maximum PV array power is 15,000 Wp.

- Configuration, commissioning, and monitoring via the Solplanet App. Includes communication interfaces such as Wifi/LAN and BMS (CAN), as well as an interface for smart meters (RS485).
