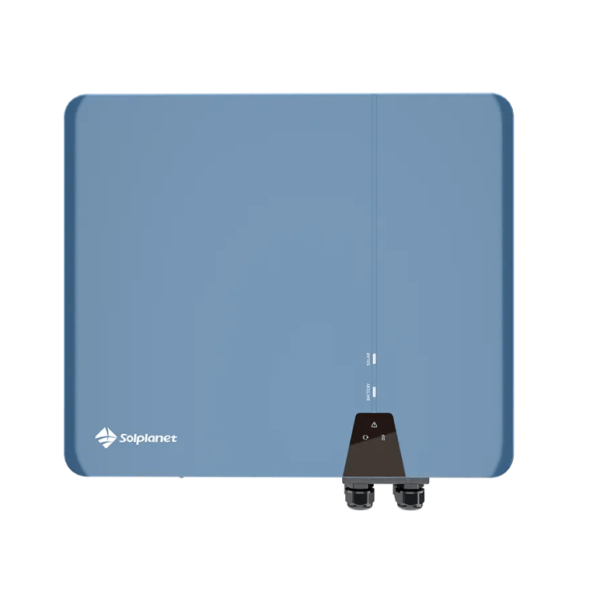

Solplanet ASW06kH-T2 | 6kW Three-Phase Hybrid Inverter

The new generation of Solplanet hybrid three-phase inverters, ASW H-T2 Series, features a compact wall-mount bracket and IP66 protection design. They are compact, discreet, and reliable.

The Solplanet ASW06kH-T2 inverter offers impressive speed when switching from on-grid to off-grid mode, with a UPS-level switchover time of < 10 ms. This ensures you won’t have to worry about grid power outages.

Solplanet ASW06kH-T2 Inverter Datasheet

Solplanet ASW06kH-T2 Installation Manual

Solplanet ASW06kH-T2 User Manual

Main Features of the Solplanet ASW H-T2 Series Inverters

The Solplanet ASW06kH-T2 inverter is a reliable, powerful, and easy-to-install device.

- Designed for quick and simple installation with basic tools. It also features IP66 certification, making it suitable for both indoor and outdoor installations.

- The Solplanet hybrid inverter offers exceptional efficiency, with a maximum charge/discharge power of 6000 W. MPPT efficiency is 99.9%, and European/max efficiency is 97.5%/98.2%.

- The ASW H-T2 Series provides a UPS-level switchover time of < 10 ms. The system detects disconnection from the grid in under 10ms, so there’s no need to worry about grid power cuts.

- Allows PV array oversizing of up to 150% for higher yields.

- The ASW06kH-T2 model supports a maximum input voltage of 1100 V and a minimum startup voltage of 180 V. It features 2 independent MPPTs and a maximum input current of 20 A per MPPT, ideal for bifacial and large-area PV modules. The maximum PV array power is 9000 Wp.

- Configuration, commissioning, and monitoring via the Solplanet app. It includes communication interfaces such as Wifi/LAN and BMS (CAN), as well as an interface for smart meters (RS485).
