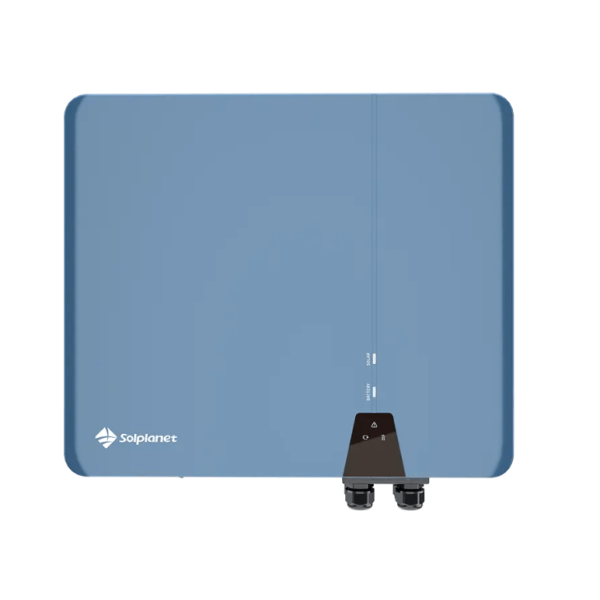

Solplanet ASW08kH-T2 | 8kW Three-Phase Hybrid Inverter

Solplanet ASW08kH-T2 | 8kW Three-Phase Hybrid Inverter

The new generation of Solplanet three-phase hybrid inverters, ASW H-T2 Series, features a compact wall-mount bracket and IP66 protection design. They are compact, discreet, and reliable.

The Solplanet ASW08kH-T2 inverter features impressive switching speed between grid-connected and off-grid modes, with UPS-level switchover time of < 10 ms. This ensures you won’t have to worry about grid power outages.

Solplanet ASW08kH-T2 Inverter Datasheet

Solplanet ASW08kH-T2 Installation Manual

Solplanet ASW08kH-T2 User Manual

Main Features of the Solplanet ASW H-T2 Series Inverters

The Solplanet ASW08kH-T2 inverter is a reliable, powerful, and easy-to-install unit.

- Its design allows for quick and easy installation using basic tools. It also features IP66 certification, making it ideal for both indoor and outdoor installations.

- The Solplanet hybrid inverter offers outstanding efficiency, with a maximum charge/discharge power of 8000 W. MPPT efficiency is 99.9%, and European/maximum efficiency is 97.9% / 98.4%.

- The ASW H-T2 series features a UPS-level switchover time of < 10 ms. The system detects grid disconnection in less than 10 ms, ensuring uninterrupted power supply during grid failures.

- Allows PV oversizing up to 150% for increased performance.

- The ASW08kH-T2 model offers a maximum input voltage of 1100 V and a minimum start-up voltage of 180 V. It features 2 independent MPPTs and a maximum input current of 20 A per MPPT, making it ideal for large-area and bifacial PV modules. The maximum PV array power is 12,000 Wp.

- Configuration, commissioning, and monitoring are done via the Solplanet app. It includes communication interfaces such as Wifi/LAN and BMS (CAN), as well as a smart meter interface (RS485).
