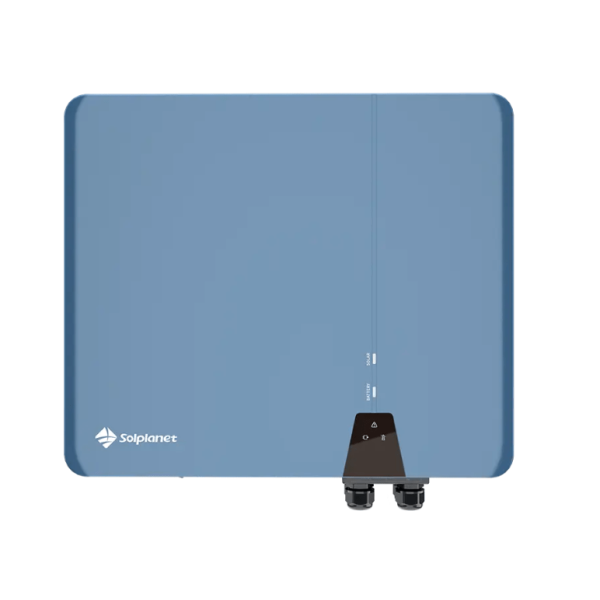

Solplanet ASW05kH-T2 | 5kW Three-Phase Hybrid Inverter

Solplanet ASW05kW-T2 | 5kW Three-Phase Hybrid Inverter

The new generation of Solplanet three-phase hybrid inverters, ASW H-T2 Series, features a compact wall-mounted bracket and IP66 protection design. They are compact, discreet, and reliable.

The Solplanet ASW05kH-T2 inverter offers an impressive switching speed when changing from grid-tied to off-grid mode, with an uninterruptible power supply (UPS)-level switchover time of < 10 ms. This ensures you won't have to worry about power outages from the electrical grid.

Technical datasheet – Solplanet ASW05kH-T2 inverter

Installation manual – Solplanet ASW05kH-T2 inverter

User manual – Solplanet ASW05kH-T2 inverter

Main Features of the Solplanet ASW H-T2 Series Inverters

The Solplanet ASW05kH-T2 inverter is a reliable, powerful, and easy-to-install unit.

- Designed for quick and simple installation using basic tools. It also has IP66 certification, making it suitable for both indoor and outdoor use.

- The Solplanet hybrid inverter offers outstanding efficiency, with a maximum charge/discharge power of 5000 W. MPPT efficiency is 99.9%, while European/maximum efficiency is 97.2% / 98.0%.

- The ASW H-T2 series features a UPS-level switching time of < 10 ms. The system detects grid disconnection in less than 10 ms, so you won’t need to worry about power cuts.

- Allows PV array oversizing of up to 150% for increased yields.

- The ASW05kH-T2 model supports a maximum input voltage of 1100 V and a minimum start voltage of 180 V. It includes 2 independent MPPTs and a maximum input current of 20 A per MPPT, making it ideal for bifacial and large-surface PV modules. The maximum PV array power is 7500 Wp.

- Configuration, commissioning, and monitoring via the Solplanet app. Includes communication interfaces such as WiFi/LAN and BMS (CAN), as well as a smart meter interface (RS485).
