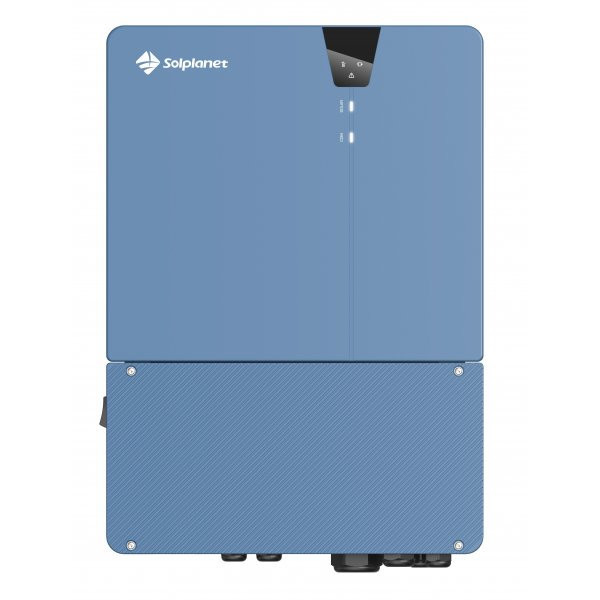

Solplanet ASW10000H-S2 | 10kW Single-Phase Hybrid Inverter

Solplanet ASW10000H-S2 | 10kW Single-Phase Hybrid Inverter

The new generation of Solplanet single-phase inverters, ASW SH Series, features a compact wall-mounted design and IP66 protection. Compact, discreet, and ultra-quiet design.

The Solplanet ASW10000H-S2 inverter includes ShadeSol shadow management. It also delivers an impressive millisecond-level switching speed when transitioning from grid-tied mode to off-grid mode, with UPS-level switchover times of less than 10 ms. No need to worry about power outages from the utility grid.

Solplanet ASW10000H-S2 Inverter Technical Datasheet

Solplanet ASW10000H-S2 Inverter Installation Manual

List of Compatible Batteries for Solplanet ASW10000H-S2 Inverter

Main Features of Solplanet ASW SH Series Inverters

The Solplanet ASW10000H-S2 inverter is a reliable, powerful, and easy-to-install device.

- It features an award-winning and versatile design with intelligent cooling. It also has IP66 certification, making it suitable for both indoor and outdoor installations.

- The Solplanet hybrid inverter offers outstanding efficiency, with a maximum charge/discharge power of 10,000 W. MPPT efficiency is 99.9%, and European/maximum efficiency is 97%/97.6%.

- The ASW SH series provides UPS-level switchover times of less than 10 ms. The system detects grid disconnection in under 10ms. You won’t need to worry about power outages from the grid.

- Multi-source design for black start, integrating photovoltaics, battery, and generator. PV oversizing up to 200% for enhanced energy yield. Delivers up to 200% output power for 10 seconds during blackouts.

- The ASW010K-SH model offers a maximum input voltage of 550 V and a minimum startup voltage of 50 V. It has 3 independent MPPTs with a maximum input current of 20 A per MPPT, ideal for large-surface and bifacial PV modules. Maximum PV array power is 20,000 Wp.

- Smart configuration, commissioning, and monitoring via the Solplanet app. Includes communication interfaces such as Dongle: WiFi (2.4 GHz)/LAN (100 Mbps), and Inverter: RS485 (ModBus RTU), LAN (100 Mbps, Modbus TCP only).
