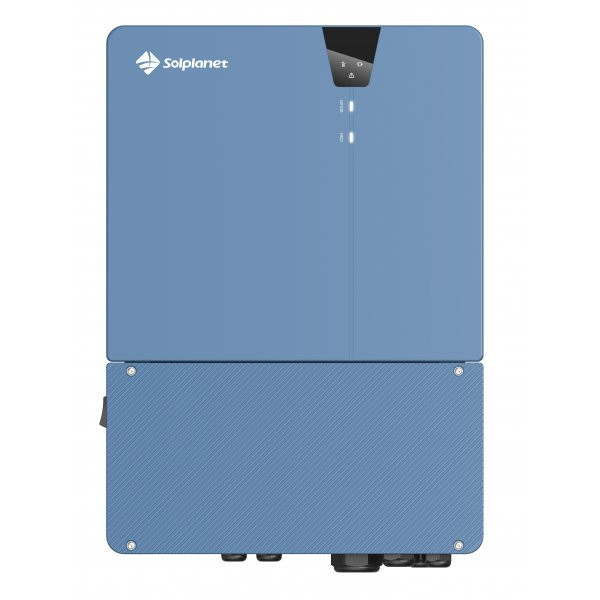

Solplanet ASW8000H-S2 | 8kW Single-Phase Hybrid Inverter

Solplanet ASW8000H-S2 | 8kW Single-Phase Hybrid Inverter

The new generation of Solplanet single-phase inverters, ASW SH Series, features a compact wall-mounted design and IP66 protection. Compact, discreet, and ultra-quiet design.

The Solplanet ASW8000H-S2 inverter includes ShadeSol shadow management. It also delivers impressive millisecond-level switching speed between grid-tied and off-grid modes, with UPS-level switchover times of less than 10 ms. Power outages from the utility grid will no longer be a concern.

Solplanet ASW8000H-S2 Inverter Technical Datasheet

Solplanet ASW8000H-S2 Inverter Installation Manual

List of Compatible Batteries with Solplanet ASW8000H-S2 Inverter

Main Features of Solplanet ASW SH Series Inverters

The Solplanet ASW8000H-S2 inverter is a reliable, powerful, and easy-to-install device.

- It features an award-winning and versatile design with intelligent cooling. It also has IP66 certification, making it ideal for both indoor and outdoor installations.

- The Solplanet hybrid inverter offers exceptional efficiency, with a maximum charge/discharge power of 8000 W. MPPT efficiency is 99.9%, and European/maximum efficiency is 97%/97.5%.

- The ASW SH series offers UPS-level switchover times of less than 10 ms. The system detects grid disconnection in under 10ms. No worries about power outages from the utility grid.

- Multi-source design for black start, integrating photovoltaic, battery, and generator. PV oversizing up to 200% for higher energy yield. Up to 200% output power for 10 seconds during outages.

- The ASW008K-SH model offers a maximum input voltage of 550 V and a minimum startup voltage of 50 V. It has 3 independent MPPTs with a maximum input current of 20 A per MPPT, ideal for large-area and bifacial PV modules. The maximum PV array power is 16,000 Wp.

- Smart setup, commissioning, and monitoring via the Solplanet app. Includes communication interfaces such as Dongle: WiFi (2.4 GHz)/LAN (100 Mbps) and Inverter: RS485 (ModBus RTU), LAN (100 Mbps, Modbus TCP only).
