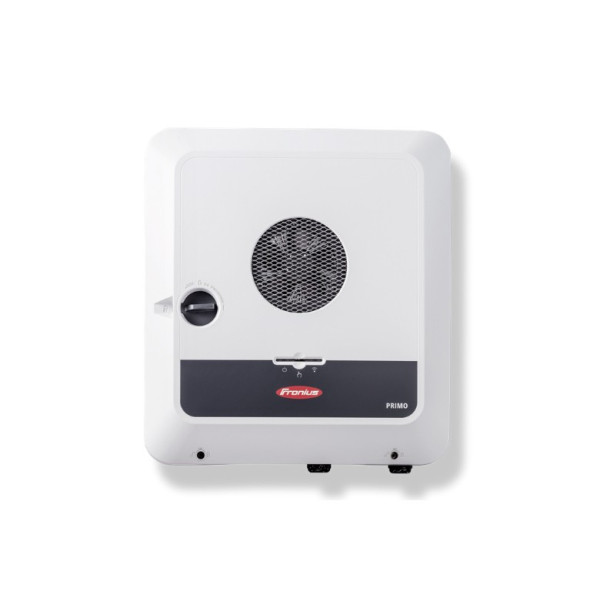

Fronius Primo GEN24 10kW Inverter | High-Performance Single-Phase

Fronius Primo GEN24 10kW Inverter | High-Performance Single-Phase

The new Fronius Primo hybrid inverter from the GEN24 Plus series is a versatile solution for single-phase residential installations with or without batteries and with integrated emergency backup. The Fronius GEN24 series is compatible with BYD high-voltage B-Box batteries and LG CHEM RESU high-voltage batteries. Quick and easy installation and commissioning.

Available model: Fronius Primo GEN24 Plus 10kW

Dimensions: 595x529x180mm Weight: 21kg

* Technical support not included. Available separately here.

INV-FRN-G24-10



Secure payment



Shipping policy



Return policy

Fronius Primo GEN24 10kW Inverter

The Fronius Primo GEN24 10kW inverter is a robust and efficient solution for single-phase photovoltaic systems without the need for battery storage. Designed without hybrid functionality, it is ideal for AC-coupled self-consumption projects or systems without batteries, offering smart integration, high efficiency, and advanced backup features.

Main Features of the Fronius Primo GEN24 10.0

  • Nominal power: 10,000W
  • Number of MPPTs: 2 independent (2+2 inputs)
  • Maximum efficiency: up to 97.3%
  • Protection rating: IP66 (indoor and outdoor)
  • Interfaces: WLAN, Ethernet, Modbus TCP/RTU, Solar API (JSON)
  • PV Point: integrated emergency output up to 3kW

Advanced Fronius Technology in the GEN24 Model

Technical Specifications of the Fronius Primo GEN24 10kW

Dimensions: 595 x 529 x 180 mm   Weight: 21 kg (26.05 kg packaged)

PV inputs: 2 MPPT (2+2) / Max. 22A per input / Short-circuit: 41.25 / 36 A

Input voltage range: 65 - 600 V   Optimal Umpp: 260 - 480 V

Max. PV power: 15 kWp   Nominal output power: 10 kW

Output grid: 1~ NPE 220/230V - 50/60Hz   Max. current: 45.45 A

PV Point: 3000 VA nominal / 13 A / switching < 20s

Protection: IP66 / Active cooling / -40°C to +60°C / Up to 4000 m

Interfaces: WLAN, 2x Ethernet, 2x RS485, Modbus TCP/RTU, Solar API (JSON), 6 digital I/Os

Efficiency: Max. 97.3% | European: up to 97.0% | MPP Tracker: 99.74%

Digital Integration and Smart Control

The Primo GEN24 10.0 includes a complete communication system: datalogger, WLAN, LAN, web server, and compatibility with Fronius Solar.web. Its wide range of interfaces allows integration with external batteries, smart meters, home automation systems, and advanced energy management.

Why Choose the Fronius Primo GEN24 10kW?

  • Excellent long-term performance and reliability
  • Ready for high-demand self-consumption without battery
  • Smart energy management with multiple protocols
  • Emergency output (PV Point) included
  • Flexible installation, robust design, and simple maintenance

Buy Fronius Primo GEN24 10.0

At Suministros del Sol we offer the Fronius Primo GEN24 10.0 at the best price with official warranty. An ideal option for high-capacity self-consumption installations, both for new projects and expansions. Contact us without obligation to resolve your doubts and receive personalized technical advice.

INV-FRN-G24-10
