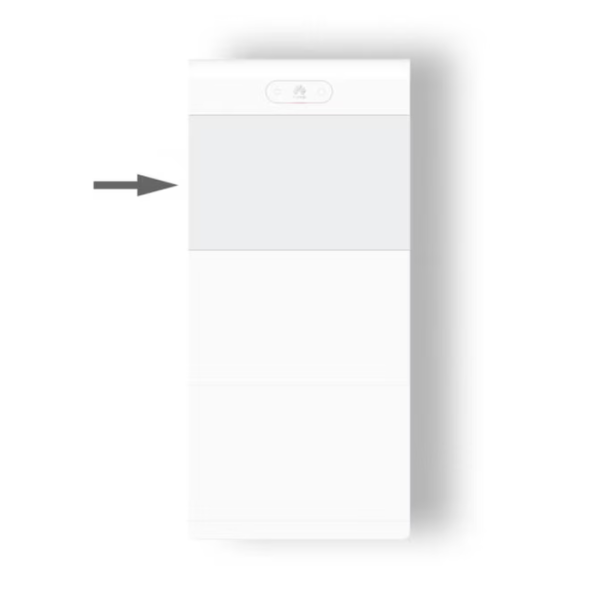

Huawei LUNA2000-5-E1 - Battery module 5kWh

Huawei LUNA2000-5-E1 - 5kWh Battery Module

Huawei LUNA2000-5-E1 battery module with 5kWh capacity for expanding the Huawei LUNA2000-5/10/15-S1 battery. This battery module requires the LUNA2000-10KW-C1 control module to function.

Features of the new Huawei LUNA2000-5/10/15-S1 battery

The new Huawei LUNA2000-S1 battery features the Module+ architecture, which improves performance by 40%. Module-level optimization ensures plug-and-play capacity expansion. Capacity upgrades are faster and safer as they do not require pre-charging or SOC calibration. It is also worth noting that the new LUNA2000-S1 battery comes with a 15-year warranty. - Flexible capacity: 6.9 kWh capacity per module. Scalable up to 20.7 kWh per group (3 battery modules) and up to a maximum of 4 groups to reach 82.8 kWh per inverter. - More available energy: Module+ architecture, module-level optimizer. Longer lifespan and 100% depth of discharge. - Unique user experience: Operates in a temperature range of -20°C to +55°C. Up to 10.5kW of power in charging and discharging. - Easy installation: No connecting cables between modules. Quick start-up. - Improved design: Ring display, enhanced curves, and a simple yet cutting-edge aesthetic.

 Download Huawei LUNA2000-5/10/15-S1 Technical Data Sheet

 Download User Manual Huawei LUNA2000-5/10/15-S1

Download Huawei Installation Guide LUNA2000-5/10/15-S1

- More energy at your disposal 100% discharge depth - Flexible expansion 5kWh modular design expandable up to 5 to 82.8kWh - Safe and Reliable Lithium Iron Phosphate (LFP) Cell Technology Easy Installation Compact design with only 10kg for the BMS and 68kg for the battery modules. Quick Start-up The new LUNA2000-S1 battery, as well as the new generation of Huawei inverters and optimizers, are automatically detected by the Huawei Solar App, allowing for quick and easy start-up. - Guaranteed Compatibility Compatible with Huawei single-phase and three-phase hybrid residential inverters.

Huawei LUNA2000-5/10/15-S1 Battery Models

The new Huawei LUNA2000-S1 battery features 5kWh capacity modules. Up to 3 modules can be stacked to obtain a capacity of 15kWh, although 4 towers can be connected in parallel to reach 82.8kWh.

LUNA2000-S1 battery models are as follows:

- Huawei LUNA2000-5-S1 5kWh battery

- Huawei LUNA2000-10-S1 10kWh battery

- Huawei LUNA2000-15-S1 15kWh battery

Inverters compatible with Huawei LUNA2000-S1 battery:

- Single-phase residential inverters Huawei SUN2000-2/3/3.68/4/4.6/5/6KTL-L1

- Single-phase residential inverters Huawei SUN2000-8/10K-LC0

- Three-phase residential inverters Huawei SUN2000-3/4/5/6/8/10KTL-M1

- Three-phase residential inverters Huawei SUN2000-12/15/17/25-MB0.

- Three-phase residential inverters Huawei SUN2000-5/6/8/10/12K MAP0.
