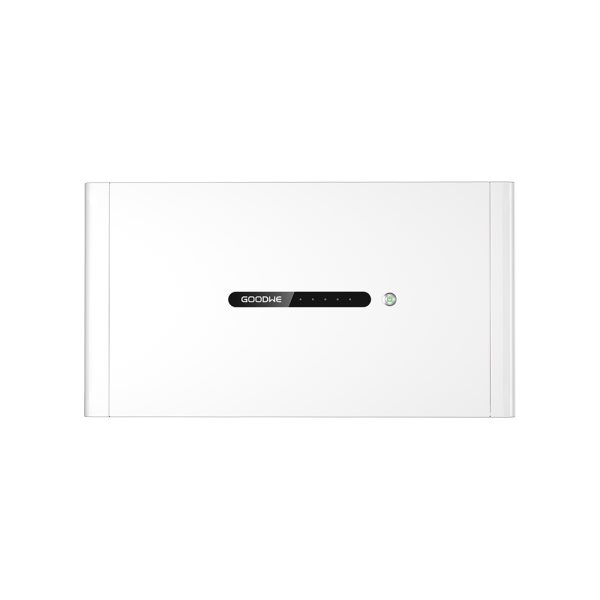

Goodwe Lynx D Lithium Battery - LX D5.0-10

Goodwe Lynx D Lithium Battery - LX D5.0-10

New high-voltage Goodwe Lynx D LX D5.0-10 batteries for residential installations. They feature lithium iron phosphate (LFP) technology for enhanced safety and reliable performance. These batteries are modular, stackable, and self-detecting, making installation easier and allowing new and old modules to be combined for future expansion. They optimize solar self-consumption at home, reduce energy costs, and ensure an uninterrupted power supply when paired with GoodWe hybrid inverters and Smart Home systems.

- Dimensions: 700 x 380 x 170 mm

- Weight: 52 kg

- Usable capacity: 5 kWh (model LX D5.0-10)

* Technical support not included. Available separately here.

BAT-GW-LYNXD-LXD5-10
€1,709.00
Tax included



Secure payment



Shipping policy



Return policy

Goodwe Lynx D LX D5.0-10 Lithium Battery

Introducing the new high-voltage Lynx D series from Goodwe, designed for residential installations with a flexible setup and high energy density. This new line features lithium iron phosphate (LFP) battery technology for improved safety and reliable performance—one of the safest and most user-optimized options available.

With stackable and self-detecting battery modules, the system is flexible and easy to install, allowing the combination of new and old modules for future expansion needs.

Maximize solar energy potential by pairing the Lynx D battery with GoodWe hybrid inverters and any Smart Home-ready appliance to achieve energy independence and lower your energy bills, all while maintaining a reliable power supply.

Goodwe Lynx D LX D5.0-10 Datasheet

Goodwe Lynx D Installation Manual

Goodwe Lynx D Compatibility List

Features of Goodwe Lynx D LX D5.0-10 Lithium Batteries

  • The Lynx D series offers 5 kWh of usable energy (for model LX D5.0-10) and allows stacking up to 8 modules for a total of 40 kWh.
  • Remote diagnostics and firmware updates are performed via the inverter.
  • IP66-rated protection for flexible installation—floor-stacked or wall-mounted.
  • Designed with the highest safety standards in mind.
  • Model LX D5.0-10 has a nominal voltage of 435V (charging) and 380V (discharging), with an output voltage range of 320–480V. Rated power: 3 kW; Peak power: 5 kW for 10 seconds.
  • Operating temperature: 0 to +53°C for charging; -20 to +53°C for discharging. Humidity: 0–95%; Max altitude: 4000 m.
  • CAN communication interface.
  • Certifications: IEC62619, IEC60730, VDE2510-50, CE, CEC. EMC: CE, RCM. Transport: UN38.3.
BAT-GW-LYNXD-LXD5-10
