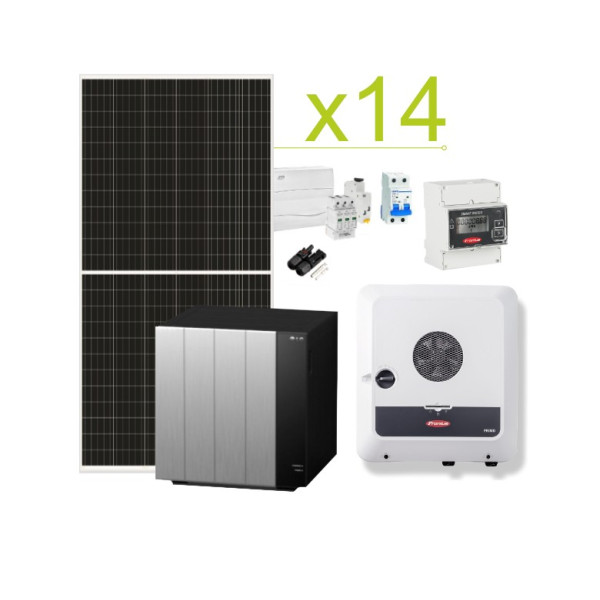

Solar Autoconsumption Kit Fronius GEN24 40,320Wh/day and lithium battery LG Resu Flex 8.6kWh A 17.9kWh
Autoconsumption solar kit with batteries capable of producing up to 40,320Wh/day, the solar kit is composed of 1x Investor Fronius Primo GEN24 Plus, 14x solar panels 480W 120 Cells, 1x Bidirectional Counter Fronius Smart Meter TS 100A - 1 Classic and 1x Lg Resu Flex lithium battery from 8.6kWh to 17.9kWh. It is applied on residential homes, country houses, both for regular use and weekends.
The self-consumption kit manages smartly and efficiently energy sources, combine solar and network energy, with zero injection.
Leapton solar 480W LP182-18-M-60-NH N Type TOPCon - 25 years warranty
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
- This product is not available for order.
LG RESU FLEX 8.6kWh to 17.9kWh
The high voltage battery LG RESU FLEX consists of two components that allow storage capacity to be flexibly scaled (BMA+BPU).
Available in three different sizes; two to four battery modules with a usable storage capacity of 8,6kWh, 12,9kWh y 17,2 kWh.
The battery is modularly expandable and suitable for both wall and floor installation.
Size: 665,2x665,2x148,4 mm
weight of the Battery module (BMA): other
Weight of the Battery control unit (BPU): 16,5 kg
* Technical support not included. Eligible separately right here.
- This product is not available for order.
Fronius Primo GEN24 Plus | de 3kW a 6kW - Single Phase Hybrid inverter
The new hybrid investor Fronius Primo series GEN24 Plus is a versatile solution residential facilities with or without batteries and with integrated back-up.The GEN24 series Fronius compatible with high voltage BYD B-Box batteries and with lG CHEM RESU high voltage batteries.Quick and easy installation and start-up.
Available models: Fronius Primo GEN24 Plus 3kW, 3.6kW, 4kW, 4.6kW, 5kW and 6kW
Dimensions: 528x474x164mm Weight: 16.6kg
* Technical support not included. Eligible separately here.
Fronius Smart Meter TS 100A-1 - Single-Phase Bidirectional
Fronius Smart Meter TS 100A-1 is a bidirectional meter that optimizes self-consumption and records your home's consumption curve. Allows you to record your home's energy consumption.
* Technical support not included.
Cable Unipolar Black 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Cable Unipolar Red 4mm Kayal
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
DC 16A Fuse and Fuse Holder
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Pair of MC4 connectors (male-female)
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
Permanent and transient overvoltages 2p 40A
Protector combi Alpha + overvoltages P+T 2P, 40A 15kA
Model: EPBOV2SC40
40A Differential Kayal
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
One of product is no longer available. This pack cant be purchased
Pack content
High efficiency Leapton LP182-18-M-60-NH 480W solar panel with the latest technology in N Type TOP cells. Leading Japanese solar panel manufacturer Leapton solar is among Bloomberg's Tier1 brands.
Size: 1909 x 1134 x 30 mm
Weight: other
25 years product warranty and 30 years linear production guarantee above 87%.
Other
Leapton solar panel 480W LP182-18-M-60-NH N Type topon
480W monocrystalline Leapton solar module with N-Type TOPCon technology that ensures maximum efficiency even in low light conditions.
The 480W Leapton solar panel has a 25-year warranty and is within the Tier1 list of best-selling brands.
See also Leapton solar 480W LP182-18-M-60-NH
This Regulation shall be binding in its entirety and directly applicable in all Member States
The Commission therefore concludes that the contested scheme is compatible with the internal market
Split cell technology
Half-cell technology involves cutting the cell into two separate parts using a mature infrared laser, thereby halving the working current. The thermal loss on the tape is significantly reduced and the power of the module is increased by 2%. The reliability of the module is also improved.
The number of cells shall be reported
It incorporates the latest technology in photovoltaic cell development with the N-Type TOPCon that increases output per cell from 10 to 20W.
It shall be capable of operating at a power output not exceeding 30 W
Data sheet
- Module Type
- Monocristalino
- Panel power
- 450W-510W
The high voltage battery LG RESU FLEX consists of two components that allow storage capacity to be flexibly scaled (BMA+BPU).
Available in three different sizes; two to four battery modules with a usable storage capacity of 8,6kWh, 12,9kWh y 17,2 kWh.
The battery is modularly expandable and suitable for both wall and floor installation.
Size: 665,2x665,2x148,4 mm
weight of the Battery module (BMA): other
Weight of the Battery control unit (BPU): 16,5 kg
* Technical support not included. Eligible separately right here.
LG RESU FLEX 8.6kWh to 17.9kWh
The high voltage battery LG RES FLEX consists of two components allowing for flexible scaling of storage capacity (BMA battery module + BPU battery protection unit).
Available in three different sizes; two to four battery modules with a usable storage capacity of 8,6kWh, 12,9kWh y 17,2 kWh.
The battery is modularly expandable and suitable for both wall and floor installation. For installation on the ground, the battery modules are connected in series to the control unit. On the other hand, in the case of wall installation, the individual units can be installed horizontally side by side on the wall.
Technical Datasheet Lithium Batteries LG RESU FLEX 8.6kWh-17.9kWh
Lithium battery characteristics of the LG RESU FLEX
Maximum energy and installation flexibility
Battery units can be connected in many different ways and offer optimal capacity for each home.
It allows the parallel connection of two systems up to 34,4 kWh.
Increased yield
Expandable modularly to a maximum of four battery units. The power range of 8.6kWh-17.9kWh allows for various applications for your home and small business.
Remote monitoring of the system
Real-time battery status monitoring and rapid diagnosis with RESU monitor, the remote monitoring system from LG.
Real-time monitoring of the system
Full and real-time control and rapid diagnosis with RESU Monitor, the remote monitoring system of LG RESU.
Flexible mounting methods
It allows installation on both the floor and the wall.
Strong compatibility
The LG RESU FLEX battery is compatible with a wide variety of inverters, such as: Fronius, Kostal, SMA and GoodWe.
Warranty for Lithium RESU FLEX battery from LG energy solution
Certificate of conformity of the Lithium battery RESU FLEX power solution LG
The new hybrid investor Fronius Primo series GEN24 Plus is a versatile solution residential facilities with or without batteries and with integrated back-up.The GEN24 series Fronius compatible with high voltage BYD B-Box batteries and with lG CHEM RESU high voltage batteries.Quick and easy installation and start-up.
Available models: Fronius Primo GEN24 Plus 3kW, 3.6kW, 4kW, 4.6kW, 5kW and 6kW
Dimensions: 528x474x164mm Weight: 16.6kg
* Technical support not included. Eligible separately here.
Nuevo inversor híbrido Fronius Primo GEN24 Plus de 3kW a 6kW
GEN24 Plus es la nueva serie de inversores híbridos de Fronius. El inversor Primo está especialmente diseñado para trabajar en instalaciones de autoconsumo de tipo monofásica y puede funcionar con o sin batería. Integra un sistema Back-up de emergencia que puede suministrar de energía a toda la casa incluso para aquellos clientes sin baterías instaladas.
Modelos disponibles: Fronius Primo GEN24 Plus 3.0 | Fronius Primo GEN24 Plus 3.6 | Fronius Primo GEN24 Plus 4.0 | Fronius Primo GEN24 Plus 4.6 | Fronius Primo GEN24 Plus 5.0 | Fronius Primo GEN24 Plus 6.0
Ver Ficha Técnica Fronius Primo GEN24 Plus.
BYD lithium batteries compatible with Fronius Primo GEN24 Inverter
Motivos para comprar inversores Fronius GEN24 Plus
 |
Sistema de Back-up integradoLa serie GEN24 Plus de inversores Fronius cuentan con un sistema de emergencia integrado que funciona incluso en instalaciones que no cuentan con batería integrada. |
|
 |
Instalación y puesta en marcha sencillaCuenta con tornillos de anclaje rápido y sistema de montaje en pared sencillo. Configuración y puesta en marcha sencilla y guiada mediante App en nuestro móvil o tablet. |
|
 |
Máximo rango de autoconsumoSistema de gestión de energía integrado. Optimización de los excedentes de energía para obtener el máximo ratio de autoconsumo posible. |
|
 |
Tecnología multiflujoPermite el flujo simultáneo de energía en todas las direcciones, pero también el acoplamiento AC, DC y AC & DC del sistema de almacenamiento en baterías. |
|
 |
Ahorro aseguradoLas numerosas características integradas de fábrica eliminan costes adicionales innecesarios. Características integradas: Sistema de Back-up, herramienta de análisis y seguimiento de energía, Dynamic Peak Manager, Diseño SuperFlex, Sistema de gestión de excedentes... |
Integración del inversor Fronius Primo GEN24 Plus
El inversor Fronius Primo GEN24 Plus es una solución versátil que cubre todas las necesidades domésticas. La integración energética de la casa está asegurada, con un elemento indispensable que transforma la energía de los paneles solares en electricidad apta para todo tipo de electrodomésticos, calentadores de agua caliente o puntos de recarga para los nuevos vehículos eléctricos. La serie GEN24 Plus se integra perfectamente con el paquete de domótica y además ofrece un sistema de monitorización y control integrado con los que tendremos acceso a nuestra instalación desde cualquier lugar con datos en tiempo real gracias a Solar.web. App disponible para Android y Apple.
Instalación y puesta en marcha de los inversores Fronius GEN24 Plus
Con un diseño compacto y ligero, los inversores Fronius GEN24 Plus son fáciles de instalar, con una puesta en marcha rápida y simple.
- Sofisticado sistema de montaje, con tornillería para anclaje sencillo y cuadro para fácil instalación en pared.
- Configuración intuitiva y rápida con la ayuda de la app disponible para nuestro móvil o tablet.
- Sistema de código abierto para integración con componentes de terceros que puedan formar parte de nuestra instalación.
Especificaciones técnicas de los inversores híbridos monofásicos Fronius Primo GEN24 Plus de 3kW a 6kW
Comprar Fronius Primo GEN24 Plus
En Suministros del Sol puedes comprar la nueva serie de inversores híbridos Fronius GEN24 Plus en su versión monofásica (Primo) o trifáscia (Symo) de todos los modelos y potencias disponibles. Ofertamos inversores para instalaciones de autoconsumo o aisladas de todas las potencias a precio económico y con la máxima calidad y garantía del fabricante. Para más información acerca de estos inversores, consulte con nosotros le ayudaremos sin compromiso en su proyecto fotovoltaico.
Fronius Smart Meter TS 100A-1 is a bidirectional meter that optimizes self-consumption and records your home's consumption curve. Allows you to record your home's energy consumption.
* Technical support not included.
Fronius Smart Meter TS 100A-1 Bidirectional Meter
Thanks to high-precision measurement and fast communication via the Modbus RTU interface, remote power limitation, when limits are imposed, is faster and more accurate than with the S0 controller. Together with Fronius Solar.web, it provides a detailed view of your home's energy consumption. For the Fronius Energy Package storage solution based on the Fronius Symo Hybrid, the Fronius Smart Meter enables systematic management of different energy flows, thus optimizing the total energy. It is perfect for use with the Fronius Symo, Fronius Symo Hybrid, Fronius Galvo, Fronius Primo, Fronius Eco, and Fronius Datamanager 2.0.
Download Fronius Smart Meter TS 100A-1 Data Sheet
Download Fronius Smart Meter TS 100A-1 Warranty Sheet
Download Fronius Smart Meter TS 100A-1 CE Certificate
Download Fronius Smart Meter TS 100A-1 Installation Manual
Fronius TS 100A-1 Meter Technical Specifications
Advantages of the Fronius Smart Meter TS 100A-1:
- Fast and accurate remote power limitation.
- Together with Fronius Solar.web, it provides a detailed view of your home's energy consumption.
- Optimizes energy management with the Fronius Energy Package storage solution.
Compatibility
The Fronius Smart Meter is compatible with all inverters with an RS485 (Modbus RTU) interface. The Fronius Smart Meter works in parallel with the Datamanager 2.0 for Fronius IG Plus inverters. The Fronius Smart Meter can be installed at any time together with the Fronius Datamanager 2.0, after the commissioning of an inverter.
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.
Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.
Characteristics of the 4mm Solar Cable
Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.
Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.
Maximum voltage: 1.2 kV AC (1.8 kV DC).
Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.
Cable image and colors are illustrative only and may vary.
Mechanical characteristics:
Inner conductor: flexible tinned copper wire.
Dielectric: LSZH halogen-free copolymer.
halogen-free copolymer LSZH.
(Resistant to UV rays).
Color: black.
Insulation diameter: see below.
Operating temperature: - 40 ° C to 90 ° C.
Minimum installation temperature: -5 ° C.
Electrical characteristics:
DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.
4.00 mm2 ≤ 4.95 Ω / km.
6.00 mm2 ≤ 3.30 Ω / km.
10.00 mm2 ≤ 1.91 Ω / km.
Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).
Maximum voltage: 1.2 kV AC (1.8 kV DC).
This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.
Fuse Holder Features
High temperature resistant housing
Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.
6 performance protections
6 major performance protections make your products safer, easier and more reliable.
Applied to products
When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.
Area of application
Stable operation, suitable for a variety of equipment and instruments.
Fuse holder technical characteristics
Type: KY-LY1-D
Fuse size: 10 x 38MM
Poles: 1P
Rated voltage: DC 1000V
Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A
Short-circuit breaking capacity: 33KA
Max power attenuation: 3.5W
Protection grade: IP20
Connection: 2.5-10mm2
Operation ambient temperature: -30~+70°C
Resistance and damp hot: Class 2
Elevation: ≤ 2000
Installation way: TH35-7.5/DIN35 Rail installation
RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%
Pollution class: 3
Installation environment: the place of no abvious vibrate & impact
Installation class: 3
WxHxL: W18 x H89 x L90mm
Weight(kg): 0.07
The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.
The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.
The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.
Characteristics of MC4 Male & Female Connectors
Durable PPO material, lightweight, portable and easy to use.
With excellent aging resistance and UV resistance, it can be used in harsh environment.
You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.
Solid male and female points with a stable self-locking system that is easy to lock and open.
The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.
Specs:
Nominal Voltage: 1000V
Rated Current: 30A (4.0mm2, 6mm2)
Test Voltage: 6000 V (50 Hz)
Degree of Protection: IP67
Flammability Classification: UL94-V0
Connector Conductive Material: copper, tin
Operating Temperature Range: -40 ℃ ~ + 90 ℃
Security Level: Ⅱ
Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)
Connector Contact Resistance: ≤5mΩ
Insertion Force ≤ 50 N
Extraction Force ≥50 N
Interior surface panel 12 Legrand elements
Protector combi Alpha + overvoltages P+T 2P, 40A 15kA
Model: EPBOV2SC40
| Tension: | 170-280V AC |
| Frequency: | 50-60 Hz |
| Class Electrical Insulation: | II |
| Shot wound: | C |
| Number of Polos: | 2P+T |
| Guarantee: | 3 Years |
| Certificates: | CE & RoHS,UKCA |
Industrial and tertiary Alpha+ differential.2P, 40A, 30mA.Class AC.6kA
Model: EPR2C040030
Autoconsumption solar kit with batteries capable of producing up to 40,320Wh/day, the solar kit is composed of 1x Investor Fronius Primo GEN24 Plus, 14x solar panels 480W 120 Cells, 1x Bidirectional Counter Fronius Smart Meter TS 100A - 1 Classic and 1x Lg Resu Flex lithium battery from 8.6kWh to 17.9kWh. It is applied on residential homes, country houses, both for regular use and weekends.
The self-consumption kit manages smartly and efficiently energy sources, combine solar and network energy, with zero injection.
