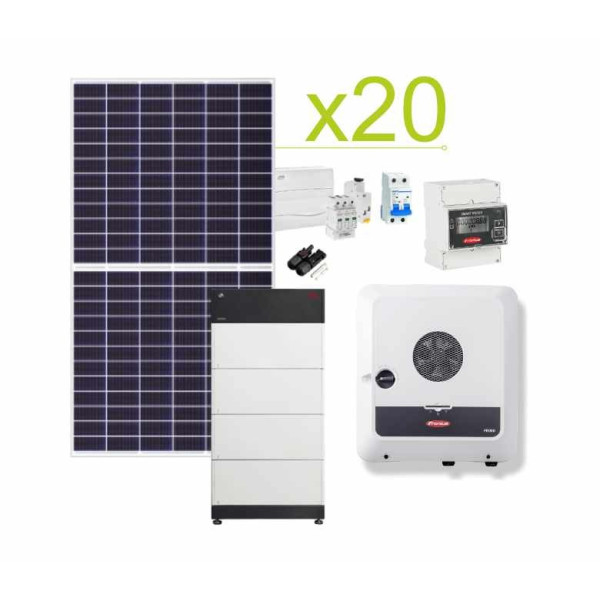

Triphasic Solar AutoConsumption Kit Fronius GEN24 57,600Wh/day and lithium battery 11.0kWh at 22.1kWh

The new Fronius Symo hybrid inverter of the GEN24 Plus series is a versatile solution for three-phase residential installations with or without batteries and with integrated emergency back-up. The Fronius GEN24 series is compatible with BYD B-Box premium HVM high-voltage batteries (From 11kWh). Quick and easy installation and commissioning.

Available models: Fronius Symo GEN24 Plus 6kW, 8kW, and 10kW

Dimensions: 594x527x166mm Weight: 25kg

* Technical support not included. Eligible separately here.

New Fronius Symo GEN24 Plus three phase hybrid inverter from 6kW to 10kW

GEN24 Plus is the new hybrid inverter series from Fronius. The Symo inverter is specially designed for use in three-phase, self-supply systems and can be operated with or without a battery. It integrates an emergency back-up system that can supply power to the entire house even for those customers without batteries installed.

Available models: Fronius Symo GEN24 Plus 6.0 | Fronius Symo GEN24 Plus 8.0 | Fronius Symo GEN24 Plus 10.0

Technical Data Sheet Fronius Symo GEN24 Plus inverter.

IMPORTANT: Installation and commissioning

Reasons to buy Fronius GEN24 Plus inverters

		Integrated Back-up System The GEN24 Plus series of Fronius inverters have an integrated emergency system that works even in installations without an integrated battery.
		Easy installation and commissioning It has quick anchorage screws and a simple wall mounting system. Easy and guided configuration and start up via App on our mobile or tablet.
		Maximum self-consumption range Integrated energy management system. Optimisation of energy surpluses to obtain the maximum possible self-consumption ratio.
		Multi-flow technology It allows the simultaneous flow of energy in all directions, but also the AC, DC and AC & DC coupling of the battery storage system.
		Insured savings The numerous factory integrated features eliminate unnecessary additional costs. Integrated features: Back-up system, energy analysis and monitoring tool, Dynamic Peak Manager, SuperFlex design, Surplus Management System...

Integration of the Fronius Symo GEN24 Plus inverter

The Fronius Primo GEN24 Plus inverter is a versatile solution that covers all household needs. The energy integration of the house is assured, with an indispensable element that transforms the energy from the solar panels into electricity suitable for all types of household appliances, hot water heaters or recharging points for new electric vehicles. The GEN24 Plus series integrates perfectly with the home automation package and also offers an integrated monitoring and control system with which we will have access to our installation from anywhere with data in real time thanks to Solar web. App available for Android and Apple.

Installation and commissioning of Fronius GEN24 Plus inverters

With a compact and lightweight design, Fronius GEN24 Plus inverters are easy to install, with fast and simple commissioning.

- Sophisticated mounting system, with screws for easy anchoring and frame for easy wall installation.

- Intuitive and fast configuration with the help of the app available for our mobile or tablet.

- Open source system for integration with third party components that may be part of our installation.

Technical Data Sheet Fronius Symo GEN24 Plus three phase hybrid inverter - 6kW to 10kW

Buy Fronius Symo GEN24 Plus

At Suministros del Sol you can buy the new Fronius GEN24 Plus hybrid inverter series in a single-phase (Primo) or three-phase (Symo) version of all available models and power ratings. We offer inverters for self-consumption or standalone installations of all powers at an affordable price and with the highest quality and manufacturer's guarantee. For more information about these inverters, please contact us and we will help you with your photovoltaic project without any obligation.

Fronius Smart Meter 63A is a bidirectional meter that optimizes self-consumption and registers the curve of consumption of your home. It allows registering the energy consumption of your home.

DUE TO LIMITED STOCK, THIS EQUIPMENT IS ONLY SOLD TOGETHER WITH ONE OF THE COMPATIBLE INVERTERS.

* Technical support not included. Eligible separately here.

Fronius Smart Meter 63A

Thanks to the high precision measurement and the fast communication through the Modbus RTU interface, the remote power limitation, when there are imposed limits, is faster and more accurate than with the S0 controller. Along with Fronius Solar.web, it offers a detailed vision of energy consumption in your house. For Fronius Energy Package storing solution based in Fronius Symo Hybrid, the Fronius Smart Meter allows doing a systematized management of the different energy flows, thus optimizing the total energy. It is perfect for its use along with Fronius Symo, Fronius Symo Hybrid, Fronius Galvo, Fronius Primo, Fronius Eco and Fronius Datamanager 2.0.

Technical specs

Fronius Smart Meter 63A advantages:

• Fast and accurate power limitation.
• Along with Fronius Solar.web it offers a detailed vision of your home´s energy consumption.
• It optimizes the energy management with the Fronius Energy Package storing solution.

Compatibility

Fronius Smart Meter is compatible with every inverter with an RS485 interface (Modbus RTU). Fronius Smart Meter works in parallel with Datamanager 2.0 for the inverters Fronius IG Plus. Fronius Smart Meter can be installed anytime along with Fronius Datamanager 2.0, after the installation of an inverter.

The new generation of high voltage BYD Battery-Box Premium HVM has been designed in response to user demand to offer one of the best storage systems for self-consumption facilities and off-grid photovoltaic installations.

Available models: BYD Battery-Box HVM 8.3kWh, 11.0kWh, 13.8kWh, 16.6kWh, 19.3kWh y 22.1kWh

Dimensions: 945x585x298mm Weight: 129kg (BYD Battery-Box HVM 8.3) For more details, please refer to the data sheet.

The new BYD Battery-Box HVM is compatible with most single-phase hybrid inverters on the market such as Ingeteam, Fronius or Kostal inverters. Please consult our team if you have doubts about the compatibility of your solar inverter.

* Technical support not included. Eligible separately here.

BYD Box HVM 200-400V New HV Lithium Battery

BYD presents its new generation of lithium batteries for storing energy in photovoltaic installations. BYD is one of the leading manufacturers of batteries and electric mobility solutions. The new Battery-BOX will be available in 48V and high voltage models. The modular design allows for flexible expansion and use in off-grid, back-up mode and self-consumption connected to the grid.

Available models: BYD Battery-Box HVM 8.3kWh | BYD Battery-Box HVM 11.0kWh | BYD Battery-Box HVM 13.8kWh | BYD Battery-Box HVM 16.6kWh | BYD Battery-Box HVM 19.3kWh | BYD Battery-Box HVM 22.1kWh

Technical Data BYD B-BOX HVM Premium

BYD B-Box HVM Premium High Voltage Lithium Battery Features

BYD Battery Box HVM 200-400V - Modular design for easy and flexible installation. - Module capacity: from 8.3kWh to 22.1kWh - Up to 3 complete units can be connected in parallel to reach a capacity of 66.2kWh. - Compatibility with most single-phase and three-phase inverters on the market: Ingeteam, Fornius, Kostal... - Lithium battery (LFP). Increased safety, service life and performance. - It works in grid-connected installations and isolated photovoltaic installations. - Modules can be stacked for expansion without the need for extra wiring or connections. - Maximum flexibility. Ideal for systems that want to expand capacity in the future.

¿How the new BYD Premium HVM differs from the previous BYD HV?

Compatibility of the new generation of high voltage BYD B-BOX PREMIUM HVM batteries

Although the new generation of BYD promises to be highly compatible with most inverters on the market, we recommend contacting our technical team before purchasing or installing. The current BYD HV battery is compatible with Ingeteam, Fronius or Kostal single-phase and three-phase inverters, among others.

ETechnical Data for BYD Battery-Box Premium HVM from 8.3kWh to 22.1kWh

Buy BYD B-BOX Premium HVM HV Battery

In Suministros del Sol you can buy the new generation of BYD B-Box Premium lithium batteries in 48V and high voltage versions. We offer lithium batteries for self-consumption or isolated installations of all powers at an economic price and with the maximum quality and manufacturer's guarantee. For more information about these batteries, please contact us and we will help you without obligation in your photovoltaic project.

The MC4 Male & Female connector are used to connect several solar panels or groups of solar panels in a solar field, and they are normally used in parallel applications.

The pin is made of high quality machined copper and a sealed tip that can ensure excellent electrical contact.

The MC4 Solar Panel Connectors are the most recommended to ensure a good connection between the connectors that already include the solar panels and our electrical installation. A cable crimper is required to make a firm connection between the connector's metal stem and the electrical wiring. The polarity of the MC4 Solar Panel Connectors must be taken into account since the sign printed on each connector may not coincide with the cable that we are going to connect it.

Characteristics of MC4 Male & Female Connectors

Durable PPO material, lightweight, portable and easy to use.

With excellent aging resistance and UV resistance, it can be used in harsh environment.

You do not need additional instruments for plug removal and removal will not cause any damage to the plugs.

Solid male and female points with a stable self-locking system that is easy to lock and open.

The contacts look like silver copper, which means it has excellent conductivity. The connectors bond so well, with a positive locking mechanism.

Specs:

Nominal Voltage: 1000V

Rated Current: 30A (4.0mm2, 6mm2)

Test Voltage: 6000 V (50 Hz)

Degree of Protection: IP67

Flammability Classification: UL94-V0

Connector Conductive Material: copper, tin

Operating Temperature Range: -40 ℃ ~ + 90 ℃

Security Level: Ⅱ

Adapter Cable: 2.5mm2 / 4mm2 / 6mm2 (AWG 12/14/10)

Connector Contact Resistance: ≤5mΩ

Insertion Force ≤ 50 N

Extraction Force ≥50 N

This series fuse is suitable for photovoltaic solar power generation system, rated voltage 250V to 1500V, rated current 1A to 30A, used in photovoltaic power generation equipment as a string of photovoltaic module and a photovoltaic array for overcurrent protection, and photovoltaic panels and batteries connected in series and parallel, to charge the variable flux system for short-circuit protection, in the photovoltaic station and the inverter rectifier system for short-circuit protection, as well as for the Photovoltaic power system, input fault voltage and short circuit for protection against rapid breakdown, rated breakdown capacity at 10-50KA, products confirm to IEC60629.1 and 60629.6.

Fuse Holder Features

High temperature resistant housing

Excellent resin shell, smooth surface, more excellent insulation and flame retardant performance, more secure.

6 performance protections

6 major performance protections make your products safer, easier and more reliable.

Applied to products

When the fuse is used in the product, the current is too high, and the short-circuit fuse will automatically disconnect, which makes the product more reliable and safe to use.

Area of ​​application

Stable operation, suitable for a variety of equipment and instruments.

Fuse holder technical characteristics

Type: KY-LY1-D

Fuse size: 10 x 38MM

Poles: 1P

Rated voltage: DC 1000V

Rated current: 1,2,3,4,5,6,8,10,12,15,20,25,30A

Short-circuit breaking capacity: 33KA

Max power attenuation: 3.5W

Protection grade: IP20

Connection: 2.5-10mm2

Operation ambient temperature: -30~+70°C

Resistance and damp hot: Class 2

Elevation: ≤ 2000

Installation way: TH35-7.5/DIN35 Rail installation

RH(relative air humidity): when +20 °C,not exceed 95%;when +40 °C,not exceed 50%

Pollution class: 3

Installation environment: the place of no abvious vibrate & impact

Installation class: 3

WxHxL: W18 x H89 x L90mm

Weight(kg): 0.07

Protector combi Alpha + overvoltages P+T 4P, 40A 15kA

Model: EPBOV4SC40

Inner surface box 24 elements Legrand

Industrial and tertiary Alpha+ differential.4P, 25A, 30mA.Class AC.6kA

Model: EPR4C025030

Interruptor magnetotérmico Alpha+ industrial. 4P, 25A, Curva C. 6kA

Model: EPB63M4C25

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).

The 4mm solar cable is made of flexible tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer sheath. These solar cables are TUV-Rheinland approved.

Solar cables are suitable for use in all photovoltaic systems for wiring solar modules as well as connection to the AC / DC inverter.

Characteristics of the 4mm Solar Cable

Flexible black and red tinned copper with halogen-free copolymer insulation and a UV-resistant halogen-free copolymer jacket.

Inner conductor: flexible tinned copper wire. 4.0 mm solar cable range.

Maximum voltage: 1.2 kV AC (1.8 kV DC).

Suitable for use in all photovoltaic systems for wiring of solar modules and connection to the AC / DC inverter. MC4 solar connectors.

Cable image and colors are illustrative only and may vary.

Mechanical characteristics:

Inner conductor: flexible tinned copper wire.

Dielectric: LSZH halogen-free copolymer.

halogen-free copolymer LSZH.

(Resistant to UV rays).

Color: black.

Insulation diameter: see below.

Operating temperature: - 40 ° C to 90 ° C.

Minimum installation temperature: -5 ° C.

Electrical characteristics:

DC resistance conductor 2.50 mm2 ≤ 7.98 Ω / km.

4.00 mm2 ≤ 4.95 Ω / km.

6.00 mm2 ≤ 3.30 Ω / km.

10.00 mm2 ≤ 1.91 Ω / km.

Operating voltage: 0.6 / 1.0 kV AC (0.8 / 1.5 kV DC).

Maximum voltage: 1.2 kV AC (1.8 kV DC).
