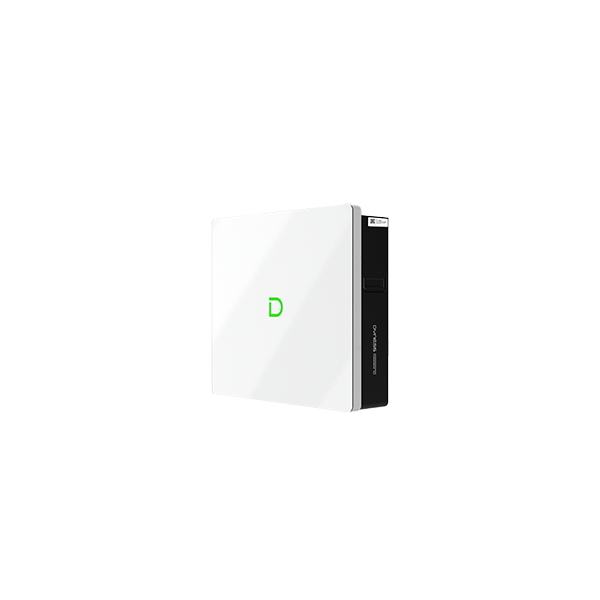

Dyness Powerbox G2 – 48V 10.24kWh Lithium Battery

Features of the Dyness Powerbox G2 10.24kWh Lithium Battery

The Dyness Powerbox G2 represents the new generation of residential energy storage systems, offering high capacity and performance in an optimized format. This battery is designed to outperform traditional lead-acid solutions, providing longer lifespan and higher efficiency.

Each Powerbox G2 includes a built-in Battery Management System (BMS) to ensure optimal, safe, and efficient operation. Its modular design allows flexible expansion by connecting up to 50 units in parallel, reaching capacities up to 512kWh without the need for an external HUB.

Highlighted features include:

- Flexible Expansion: Connect up to 50 units in parallel, covering energy needs from 10.24kWh to 512kWh.

- Automatic Low-Temperature Heating: Equipped with innovative self-heating technology that activates at -20°C, allowing efficient charging even in extremely cold climates.

- Maximum Safety: Features an aerosol fire suppression system that activates within 5 seconds of detecting high cell temperature, minimizing risks. It also includes a waterproof valve to balance internal pressure.

- 1C Discharge Rate: Delivers a maximum discharge power of 10.24kW and continuous current of 200A, ensuring robust power supply for high-demand loads and backup scenarios.

- Easy Installation: With 30% less volume and 15% less weight, it simplifies transport and installation, saving time and labor.

- IP66 Protection: High protection rating makes it water- and dust-resistant, ideal for outdoor use and capable of withstanding harsh weather conditions.

- WiFi Connectivity: Integrated WiFi module with OTA APP functionality for monitoring and updates.

- Long Lifespan: High-quality LiFePO4 cells ensure over 8,000 charge/discharge cycles and a 10-year warranty.

- Maintenance-Free: Once installed, it requires no periodic maintenance.

Dyness Powerbox G2 Datasheet

List of Compatible Inverters with Dyness Powerbox G2 Batteries

The 48V Dyness Powerbox G2 battery is compatible with a wide range of leading solar inverters. Its versatility makes it an ideal option for systems using inverters from brands like SMA, Schneider, Victron Energy, Ingeteam, Solis, GoodWe, Growatt, Solplanet, Luxpower, DEYE, and Apsystem, among others.

This ensures easy integration and optimized performance in various solar system configurations, both on-grid and off-grid.

Technical Specifications of the Dyness Powerbox G2 10.24kWh 48V

- Battery Type: LiFePO4

- Nominal Energy: 10.24 kWh

- Usable Energy: 9.728 kWh

- Nominal Voltage: 51.2 V

- Nominal Capacity: 200 Ah

- Nominal Charge/Discharge Power: 5.12 kW

- Maximum Discharge Power: 10.24 kW

- Maximum Discharge Current: 200 A

- Peak Discharge Current: 300 A (2 minutes at 25°C)

- Recommended Depth of Discharge (DOD): 95%

- Charging Temperature Range: 0–55°C (with heating function: -20–55°C)

- Discharge Temperature Range: -20–55°C

- Protection Level: IP66

- Communication: CAN/RS485
