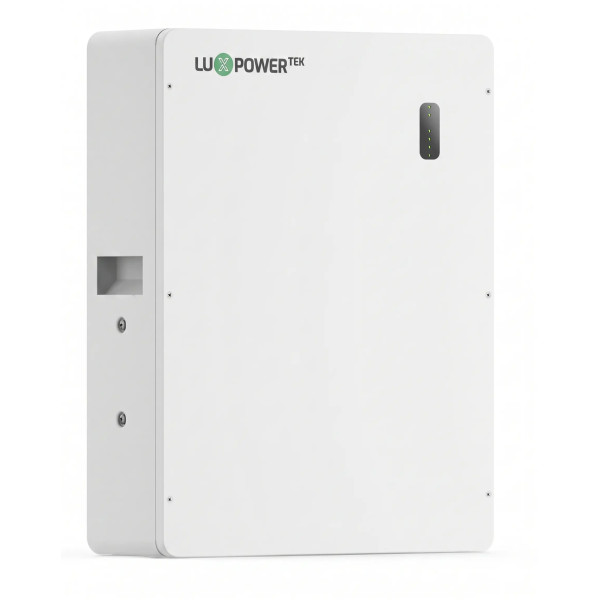

PSHIELD LuxPower 5.12kWh Lithium Battery – 51.2V

PSHIELD LuxPower 5.12kWh Lithium Battery – 51.2V

PSHIELD Lithium (LFP) Battery by LuxPower with a capacity of 5.12kWh (100Ah at 51.2V) and 6000 charge cycles, ideal for solar photovoltaic installations, both for self-consumption with storage and for off-grid systems.

Dimensions: 500 x 650 x 167 mm

Weight: 60 kg

BAT-HNE-PS-5,12
€1,390.00
€1,278.80  Save 8%
Tax included
In stock



Secure payment



Shipping policy



Return policy

PSHIELD 5.12kWh Lithium Battery – 51.2V

The PSHIELD battery from LuxPower is built with Lithium Iron Phosphate (LiFePO4 or LFP) cells, offering a nominal capacity of 5.12kWh and a continuous charge/discharge rate of 1C. It is a safe, robust, and efficient battery designed to last up to 10 years or 6000 cycles, making it an ideal choice for both self-consumption photovoltaic systems and off-grid setups.

It includes a built-in DC circuit breaker, a heating system for extreme climates, and an IP65-rated enclosure, making it especially suitable for outdoor installations. Its multiple protection system and intelligent BMS ensure long lifespan and safe operation.

Compatibility and Scalability

Compatible with Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Solark, SRNE, Must, Sofar, and others. Up to 32 units can be connected in parallel without additional devices, allowing for easy expansion of storage capacity.

Main Advantages

  • Ultra-safe LFP material
  • Protection against overcharge, deep discharge, short-circuit, and more
  • Built-in heating system
  • IP65 protection for outdoor use
  • Remote monitoring and flexible firmware updates
  • Intelligent BMS management
  • Integrated DC circuit breaker
  • Compact design with fire suppression system

Communication Interface

Equipped with CAN/RS485 communication ports, ensuring seamless integration with major control systems and inverters on the market.

Technical Specifications – PSHIELD 5.12kWh Battery – 51.2V

MODEL PSHIELD
Cell Type LFP
Nominal Energy 5.12kWh
Nominal Capacity 100Ah
Nominal Voltage 51.2V
Charge Voltage 57.2V
Max Charge/Discharge Current 100A
Peak Discharge Current 105A (15s), 150A (0.5s)
Max Parallel Units 32 (no hub required)
Communication CAN / RS485
Protection Rating IP65
Dimensions 500 x 650 x 167 mm
Weight 60 kg
Operating Temperature -20°C ~ +55°C
Humidity 5% ~ 85% RH (non-condensing)
DOD 90%
Certifications CE, UN38.3, IEC62619
Protections Overcharge, deep discharge, overcurrent, overvoltage, overtemperature, short-circuit, reverse polarity, unbalanced charge, and low SOC

Manufacturer Warranty

LuxPower offers a warranty of 10 years or 6000 cycles, whichever comes first. It also includes remote maintenance and original firmware backup to prevent update failures.

Downloads

PSHIELD 5.12kWh – 51.2V Lithium Battery Datasheet

PSHIELD 5.12kWh – 51.2V Lithium Battery User Manual

BAT-HNE-PS-5,12
