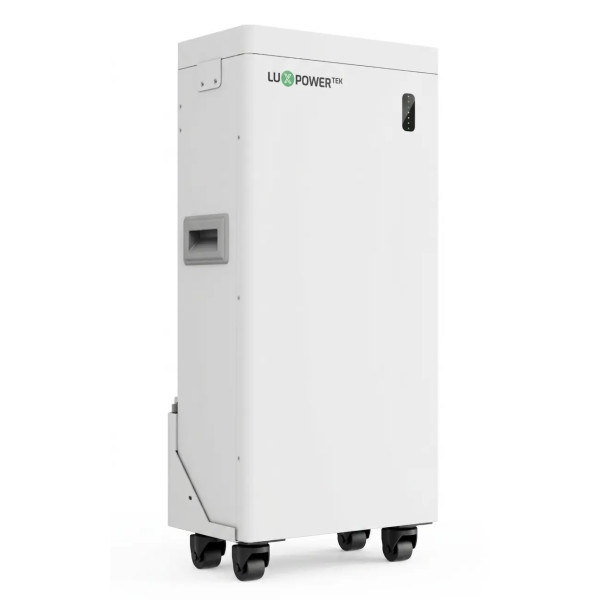

Lithium Battery LuxPower PGEM MAX 16kWh - 51.2V

Lithium Battery LuxPower PGEM MAX 16kWh - 51.2V

PGEM MAX Lithium Battery (LFP) by LuxPower with a capacity of 16 kWh (314Ah at 51.2V) and a lifespan of 8000 cycles, ideal for solar energy applications, both for photovoltaic self-consumption with storage and for off-grid solar installations.

Dimensions: 900x445x230 mm

Weight: 120 kg

* Wheels not included (contact our team)

BAT-HNE-PGM-16
€2,295.00
Tax included
Last items in stock



Secure payment



Shipping policy



Return policy

PGEM MAX Lithium Battery 16kWh - 51.2V

The PGEM MAX Lithium Iron Phosphate (LiFePO4 or LFP) battery, 16 kWh from LuxPower, is ideal for solar energy applications, both for photovoltaic self-consumption with storage and for off-grid solar installations.

Compatible with Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Solark, SRNE, Must... parallel connection capacity up to 35 units. Easy installation thanks to its quick connectors, reducing installation time.

Advantages of LFP Technology

It has a long and extended lifespan, around 8,000 cycles and approximately 10 years of warranty, with the manufacturer guaranteeing it retains more than 70% of usable capacity from the start. Easy to expand for large-scale storage; deeper discharge depth (90% DOD); compact and modular design allowing easy installation/upgrade; ability to operate under various temperature conditions (from -20°C to +55°C); Smart BMS management for extended lifespan and real-time alarm reporting. Protection against overcharge, overdischarge, overcurrent, overvoltage, and overtemperature, as well as short circuits and reverse polarity, plus charge balancing.

PGEM MAX Capacity

Each of these modules has an energy capacity of 16 kWh. Thanks to its format, up to 35 units can be connected in parallel, achieving a very high energy storage capacity.

Technical Specifications – PGEM MAX LuxPower 51.2V 16kWh Battery

MODEL PGEM MAX
Cell LFP
Nominal Energy 16.076 kWh
Nominal Capacity 314 Ah

Nominal Voltage

 51.2 V
Max Continuous Charge/Discharge 160 A (charge) / 200 A (discharge)
Max Parallel Units 35
Communication CAN/RS485
Certifications CE UN38.3 IEC62619
Protection

Protection against overcharge, overdischarge, overcurrent, overvoltage, and overtemperature. Short circuit protection, reverse connection protection, load balancing, low state of charge (SOC) protection.
Dimensions (W*D*H) 900*445*230 mm
Net Weight 120 kg
Lifespan (Cycles) ≥8000 cycles
Warranty 10 years
DC Breaker Built-in
Fire Suppression System Built-in
Robust Applications Auto-addressing and enhanced protection
Compatible Inverters Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Solark, SRNE, Must, etc.

Manufacturer Warranty

For LuxPower batteries, the manufacturer guarantees that the battery retains at least 70% of its usable energy capacity after 10 years of use or 8,000 cycles, whichever comes first.

Downloads

PGEM MAX 16kWh - 51.2V Lithium Battery Datasheet

Download PGEM MAX 16kWh - 51.2V Lithium Battery Manual

Download Warranty Terms
